genfit::GFGbl Class Reference

Generic GBL implementation. More...

#include <GFGbl.h>

Inheritance diagram for genfit::GFGbl:

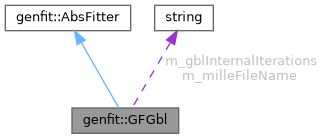

Collaboration diagram for genfit::GFGbl:

Public Member Functions
	GFGbl ()
virtual	~GFGbl ()
void	beginRun ()
void	endRun ()
void	setGBLOptions (std::string internalIterations="THC", bool enableScatterers=true, bool enableIntermediateScatterer=true)
	Sets internal GBL down-weighting.
void	setMP2Options (double pValueCut=0., unsigned int minNdf=1, std::string mille_file_name="millefile.dat", double chi2Cut=0.)
	Sets GBL & Millepede settings.
void	processTrackWithRep (Track *trk, const AbsTrackRep *rep, bool resortHits=false)
Public Member Functions inherited from genfit::AbsFitter
	AbsFitter ()
virtual	~AbsFitter ()
void	processTrack (Track *, bool resortHits=true)
virtual void	setDebugLvl (unsigned int lvl=1)

Private Member Functions
	GFGbl (const GFGbl &)
GFGbl &	operator= (GFGbl const &)

Private Attributes
std::string	m_milleFileName
std::string	m_gblInternalIterations
double	m_pValueCut
int	m_minNdf
double	m_chi2Cut
bool	m_enableScatterers
bool	m_enableIntermediateScatterer

Additional Inherited Members
Protected Attributes inherited from genfit::AbsFitter
unsigned int	debugLvl_

Detailed Description

Generic GBL implementation.

The interface class to GBL track fit

Definition at line 48 of file GFGbl.h.

Constructor & Destructor Documentation

GFGbl() [1/2]

genfit::GFGbl::GFGbl ( const GFGbl &  )

private

GFGbl() [2/2]

GFGbl::GFGbl

(

)

Constructor

Definition at line 175 of file GFGbl.cc.

             :
AbsFitter(), m_milleFileName("millefile.dat"), m_gblInternalIterations("THC"), m_pValueCut(0.), m_minNdf(1),
m_chi2Cut(0.),
m_enableScatterers(true),
m_enableIntermediateScatterer(true)
{

}

~GFGbl()

virtual genfit::GFGbl::~GFGbl ( )

inlinevirtual

Destructor

Definition at line 73 of file GFGbl.h.

{;}

Member Function Documentation

beginRun()

void GFGbl::beginRun

(

)

Creates the mille binary file for output of data for Millepede II alignment, can be set by setMP2Options

Definition at line 184 of file GFGbl.cc.

{
  milleFile = new MilleBinary(m_milleFileName);

  #ifdef OUTPUT
  diag = new TFile(rootFileName.c_str(), "RECREATE");
  char name[20];

  for (int i = 0; i < 12; i++) {
    sprintf(name, "res_u_%i", i + 1);
    resHistosU[i] = new TH1F(name, "Residual (U)", 1000, -0.1, 0.1);
    sprintf(name, "res_v_%i", i + 1);
    resHistosV[i] = new TH1F(name, "Residual (V)", 1000, -0.1, 0.1);
    sprintf(name, "meas_pull_u_%i", i + 1);
    mhistosU[i] = new TH1F(name, "Res/Meas.Err. (U)", 1000, -20., 20.);
    sprintf(name, "meas_pull_v_%i", i + 1);
    mhistosV[i] = new TH1F(name, "Res/Meas.Err. (V)", 1000, -20., 20.);
    sprintf(name, "pull_u_%i", i + 1);
    ghistosU[i] = new TH1F(name, "Res/Res.Err. (U)", 1000, -20., 20.);
    sprintf(name, "pull_v_%i", i + 1);
    ghistosV[i] = new TH1F(name, "Res/Res.Err. (V)", 1000, -20., 20.);
    sprintf(name, "downWeights_u_%i", i + 1);
    downWeightsHistosU[i] = new TH1F(name, "Down-weights (U)", 1000, 0., 1.);
    sprintf(name, "downWeights_v_%i", i + 1);
    downWeightsHistosV[i] = new TH1F(name, "Down-weights (V)", 1000, 0., 1.);
    sprintf(name, "localPar1_%i", i + 1);

    localPar1[i] = new TH1F(name, "Residual (U)", 1000, -0.1, 0.1);
    sprintf(name, "localPar2_%i", i + 1);
    localPar2[i] = new TH1F(name, "Residual (U)", 1000, -0.1, 0.1);
    sprintf(name, "localPar3_%i", i + 1);
    localPar3[i] = new TH1F(name, "Residual (U)", 1000, -0.1, 0.1);
    sprintf(name, "localPar4_%i", i + 1);
    localPar4[i] = new TH1F(name, "Residual (U)", 1000, -0.1, 0.1);
    sprintf(name, "localPar5_%i", i + 1);
    localPar5[i] = new TH1F(name, "Residual (U)", 1000, -0.1, 0.1);
  }
  fitResHisto = new TH1I("fit_result", "GBL Fit Result", 21, -1, 20);
  ndfHisto = new TH1I("ndf", "GBL Track NDF", 41, -1, 40);
  chi2OndfHisto = new TH1F("chi2_ndf", "Track Chi2/NDF", 100, 0., 10.);
  pValueHisto = new TH1F("p_value", "Track P-value", 100, 0., 1.);

  stats = new TH1I("stats", "0: NDF>0 | 1: fTel&VXD | 2: all | 3: VXD | 4: SVD | 5: all - PXD | 6: fTel&SVD | 7: bTel", 10, 0, 10);

  #endif
}

endRun()

void GFGbl::endRun

(

)

Required to write and close ROOT file with debug output. Destructor cannot be used. To be called from endRun function of a module

Definition at line 231 of file GFGbl.cc.

{
  #ifdef OUTPUT
  diag->cd();
  diag->Write();
  diag->Close();
  #endif
  // This is needed to close the file before alignment starts
  delete milleFile;
}

operator=()

GFGbl & genfit::GFGbl::operator= ( GFGbl const &  )

private

processTrackWithRep()

void GFGbl::processTrackWithRep ( Track *  trk, const AbsTrackRep *  rep, bool  resortHits = false  )

virtual

Performs fit on a Track. Hit resorting currently NOT supported.

Implements genfit::AbsFitter.

Definition at line 325 of file GFGbl.cc.

{
  // Flag used to mark error in raw measurement combination
  // measurement won't be considered, but scattering yes
  bool skipMeasurement = false;
  // Chi2 of Reference Track
  double trkChi2 = 0.;
  // This flag enables/disables fitting of q/p parameter in GBL
  // It is switched off automatically if no B-field at (0,0,0) is detected.
  bool fitQoverP = true;
  //TODO: Use clever way to determine zero B-field
  double Bfield = genfit::FieldManager::getInstance()->getFieldVal(TVector3(0., 0., 0.)).Mag();
  if (!(Bfield > 0.))
    fitQoverP = false;

  // Dimesion of repository/state
  int dim = rep->getDim();
  // current measurement point
  TrackPoint* point_meas;
  // current raw measurement
  AbsMeasurement* raw_meas;

  // We assume no initial kinks, this will be reused several times
  TVectorD scatResidual(2);
  scatResidual.Zero();

  // All measurement points in ref. track
  int npoints_meas = trk->getNumPointsWithMeasurement();

  #ifdef DEBUG
  int npoints_all = trk->getNumPoints();

  if (resortHits)
    cout << "WARNING: Hits resorting in GBL interface not supported." << endl;

  cout << "-------------------------------------------------------" << endl;
  cout << "               GBL processing genfit::Track            " << endl;
  cout << "-------------------------------------------------------" << endl;
  cout << " # Ref. Track Points  :  " << npoints_all  << endl;
  cout << " # Meas. Points       :  " << npoints_meas << endl;

  #endif
  // List of prepared GBL points for GBL trajectory construction
  std::vector<GblPoint> listOfPoints;

  std::vector<double> listOfLayers;
  //TODO: Add internal/external seed (from CDC) option in the future
  // index of point with seed information (0 for none)
  unsigned int seedLabel = 0;
  // Seed covariance
  // TMatrixDSym clCov(dim);
  // Seed state
  TMatrixDSym clSeed(dim);

  // propagation Jacobian to next point from current measurement point
  TMatrixD jacPointToPoint(dim, dim);
  jacPointToPoint.UnitMatrix();

  int n_gbl_points = 0;
  int n_gbl_meas_points = 0;
  int Ndf = 0;
  double Chi2 = 0.;
  double lostWeight = 0.;

  // Momentum of track at current plane
  double trackMomMag = 0.;
  // Charge of particle at current plane :-)
  double particleCharge = 1.;

  for (int ipoint_meas = 0; ipoint_meas < npoints_meas; ipoint_meas++) {
    point_meas = trk->getPointWithMeasurement(ipoint_meas);

    if (!point_meas->hasFitterInfo(rep)) {
      cout << " ERROR: Measurement point does not have a fitter info. Track will be skipped." << endl;
      return;
    }
    // Fitter info which contains Reference state and plane
    KalmanFitterInfo* fi = dynamic_cast<KalmanFitterInfo*>(point_meas->getFitterInfo(rep));
    if (!fi) {
      cout << " ERROR: KalmanFitterInfo (with reference state) for measurement does not exist. Track will be skipped." << endl;
      return;
    }
    // Current detector plane
    SharedPlanePtr plane = fi->getPlane();
    if (!fi->hasReferenceState()) {
      cout << " ERROR: Fitter info does not contain reference state. Track will be skipped." << endl;
      return;
    }
    // Reference StateOnPlane for extrapolation
    ReferenceStateOnPlane* reference = new ReferenceStateOnPlane(*fi->getReferenceState());//(dynamic_cast<const genfit::ReferenceStateOnPlane&>(*fi->getReferenceState()));
    // Representation state at plane
    TVectorD state = reference->getState();
    // track direction at plane (in global coords)
    TVector3 trackDir = rep->getDir(*reference);
    // track momentum vector at plane (in global coords)
    trackMomMag = rep->getMomMag(*reference);
    // charge of particle
    particleCharge = rep->getCharge(*reference);
    // mass of particle
    double particleMass = rep->getMass(*reference);

    // Parameters of a thick scatterer between measurements
    double trackLen = 0.;
    double scatTheta = 0.;
    double scatSMean = 0.;
    double scatDeltaS = 0.;
    // Parameters of two equivalent thin scatterers
    double theta1 = 0.;
    double theta2 = 0.;
    double s1 = 0.;
    double s2 = 0.;

    TMatrixDSym noise;
    TVectorD deltaState;
    // jacobian from s2 to M2
    TMatrixD jacMeas2Scat(dim, dim);
    jacMeas2Scat.UnitMatrix();


    // Now get measurement. First have a look if we need to combine SVD clusters...
    // Load Jacobian from previous extrapolation
    // rep->getForwardJacobianAndNoise(jacPointToPoint, noise, deltaState);
    // Try to get VxdId of current plane
    int sensorId = 0;
    PlanarMeasurement* measPlanar = dynamic_cast<PlanarMeasurement*>(point_meas->getRawMeasurement(0));
    if (measPlanar) sensorId = measPlanar->getPlaneId();

    //WARNING: Now we only support 2D measurements. If 2 raw measurements are stored at the track
    // point, these are checked if they correspond to "u" and "v" measurement (for SVD clusters) and these
    // measurements are combined. SLANTED SENSORS NOT YET SUPPORTED!!!
    if (point_meas->getRawMeasurement(0)->getDim() != 2
      && trk->getPointWithMeasurement(ipoint_meas)->getNumRawMeasurements() == 2
      && point_meas->getRawMeasurement(0)->getDim() == 1
      && point_meas->getRawMeasurement(1)->getDim() == 1) {
      AbsMeasurement* raw_measU = 0;
    AbsMeasurement* raw_measV = 0;

    // cout << " Two 1D Measurements encountered. " << endl;

    int sensorId2 = -1;
    PlanarMeasurement* measPlanar2 = dynamic_cast<PlanarMeasurement*>(point_meas->getRawMeasurement(0));
    if (measPlanar2) sensorId2 = measPlanar->getPlaneId();

    // We only try to combine if at same sensor id (should be always, but who knows)
    // otherwise ignore this point
    if (sensorId != sensorId2) {
      skipMeasurement = true;
      cout << " ERROR: Incompatible sensorIDs at measurement point " << ipoint_meas << ". Measurement will be skipped." << endl;
    }

    // We have to combine two SVD 1D Clusters at the same plane into one 2D recohit
    AbsMeasurement* raw_meas1 = point_meas->getRawMeasurement(0);
    AbsMeasurement* raw_meas2 = point_meas->getRawMeasurement(1);
    // Decide which cluster is u and which v based on H-matrix
    if (raw_meas1->constructHMatrix(rep)->isEqual(genfit::HMatrixU())
      && raw_meas2->constructHMatrix(rep)->isEqual(genfit::HMatrixV())) {
      // right order U, V
      raw_measU = raw_meas1;
    raw_measV = raw_meas2;
      } else if (raw_meas2->constructHMatrix(rep)->isEqual(genfit::HMatrixU())
        && raw_meas1->constructHMatrix(rep)->isEqual(genfit::HMatrixV())) {
        // inversed order V, U
        raw_measU = raw_meas2;
      raw_measV = raw_meas1;
        } else {
          // Incompatible measurements ... skip track ... I saw this once and just before a segfault ...
          cout << " ERROR: Incompatible 1D measurements at meas. point " << ipoint_meas << ". Track will be skipped." << endl;
          return;
        }
        // Combine raw measurements
        TVectorD _raw_coor(2);
        _raw_coor(0) = raw_measU->getRawHitCoords()(0);
        _raw_coor(1) = raw_measV->getRawHitCoords()(0);
        // Combine covariance matrix
        TMatrixDSym _raw_cov(2);
        _raw_cov.Zero();
        _raw_cov(0, 0) = raw_measU->getRawHitCov()(0, 0);
        _raw_cov(1, 1) = raw_measV->getRawHitCov()(0, 0);
        // Create new combined measurement
        raw_meas = new PlanarMeasurement(_raw_coor, _raw_cov, raw_measU->getDetId(), raw_measU->getHitId(), point_meas);
      } else {
        // Default behavior
        raw_meas = point_meas->getRawMeasurement(0);
      }
      //TODO: We only support 2D measurements in GBL (ot two 1D combined above)
      if (raw_meas->getRawHitCoords().GetNoElements() != 2) {
        skipMeasurement = true;
        #ifdef DEBUG
        cout << " WARNING: Measurement " << (ipoint_meas + 1) << " is not 2D. Measurement Will be skipped. " << endl;
        #endif
      }

      // Now we have all necessary information, so lets insert current measurement point
      // if we don't want to skip it (e.g. ghost SVD hit ... just 1D information)
      if (!skipMeasurement) {
        // 2D hit coordinates
        TVectorD raw_coor = raw_meas->getRawHitCoords();
        // Covariance matrix of measurement
        TMatrixDSym raw_cov = raw_meas->getRawHitCov();
        // Projection matrix from repository state to measurement coords
        boost::scoped_ptr<const AbsHMatrix> HitHMatrix(raw_meas->constructHMatrix(rep));
        // Residual between measured position and reference track position
        TVectorD residual = -1. * (raw_coor - HitHMatrix->Hv(state));

        trkChi2 += residual(0) * residual(0) / raw_cov(0, 0) + residual(1) * residual(1) / raw_cov(1, 1);

        // Measurement point
        GblPoint measPoint(jacPointToPoint);
        // Projection from local (state) coordinates to measurement coordinates (inverted)
        // 2x2 matrix ... last block of H matrix (2 rows x 5 columns)
        //TMatrixD proL2m = HitHMatrix->getMatrix().GetSub(0, 1, 3, 4);
        TMatrixD proL2m(2, 2);
        proL2m.Zero();
        proL2m(0, 0) = HitHMatrix->getMatrix()(0, 3);
        proL2m(0, 1) = HitHMatrix->getMatrix()(0, 4);
        proL2m(1, 1) = HitHMatrix->getMatrix()(1, 4);
        proL2m(1, 0) = HitHMatrix->getMatrix()(1, 3);
        proL2m.Invert();
        //raw_cov *= 100.;
        //proL2m.Print();
        measPoint.addMeasurement(proL2m, residual, raw_cov.Invert());

        //Add global derivatives to the point

        // sensor label = sensorID * 10, then last digit is label for global derivative for the sensor
        int label = sensorId * 10;
        // values for global derivatives
        //TMatrixD derGlobal(2, 6);
        TMatrixD derGlobal(2, 12);

        // labels for global derivatives
        std::vector<int> labGlobal;

        // track direction in global coords
        TVector3 tDir = trackDir;
        // sensor u direction in global coords
        TVector3 uDir = plane->getU();
        // sensor v direction in global coords
        TVector3 vDir = plane->getV();
        // sensor normal direction in global coords
        TVector3 nDir = plane->getNormal();
        //file << sensorId << endl;
        //outputVector(uDir, "U");
        //outputVector(vDir, "V");
        //outputVector(nDir, "Normal");
        // track direction in local sensor system
        TVector3 tLoc = TVector3(uDir.Dot(tDir), vDir.Dot(tDir), nDir.Dot(tDir));

        // track u-slope in local sensor system
        double uSlope = tLoc[0] / tLoc[2];
        // track v-slope in local sensor system
        double vSlope = tLoc[1] / tLoc[2];

        // Measured track u-position in local sensor system
        double uPos = raw_coor[0];
        // Measured track v-position in local sensor system
        double vPos = raw_coor[1];

        //Global derivatives for alignment in sensor local coordinates
        derGlobal(0, 0) = 1.0;
        derGlobal(0, 1) = 0.0;
        derGlobal(0, 2) = - uSlope;
        derGlobal(0, 3) = vPos * uSlope;
        derGlobal(0, 4) = -uPos * uSlope;
        derGlobal(0, 5) = vPos;

        derGlobal(1, 0) = 0.0;
        derGlobal(1, 1) = 1.0;
        derGlobal(1, 2) = - vSlope;
        derGlobal(1, 3) = vPos * vSlope;
        derGlobal(1, 4) = -uPos * vSlope;
        derGlobal(1, 5) = -uPos;

        labGlobal.push_back(label + 1); // u
        labGlobal.push_back(label + 2); // v
        labGlobal.push_back(label + 3); // w
        labGlobal.push_back(label + 4); // alpha
        labGlobal.push_back(label + 5); // beta
        labGlobal.push_back(label + 6); // gamma


        // Global derivatives for movement of whole detector system in global coordinates
        //TODO: Usage of this requires Hierarchy Constraints to be provided to MP2

        // sensor centre position in global system
        TVector3 detPos = plane->getO();
        //cout << "detPos" << endl;
        //detPos.Print();

        // global prediction from raw measurement
        TVector3 pred = detPos + uPos * uDir + vPos * vDir;
        //cout << "pred" << endl;
        //pred.Print();

        double xPred = pred[0];
        double yPred = pred[1];
        double zPred = pred[2];

        // scalar product of sensor normal and track direction
        double tn = tDir.Dot(nDir);
        //cout << "tn" << endl;
        //cout << tn << endl;

        // derivatives of local residuals versus measurements
        TMatrixD drdm(3, 3);
        drdm.UnitMatrix();
        for (int row = 0; row < 3; row++)
          for (int col = 0; col < 3; col++)
            drdm(row, col) -= tDir[row] * nDir[col] / tn;

          //cout << "drdm" << endl;
          //drdm.Print();

          // derivatives of measurements versus global alignment parameters
          TMatrixD dmdg(3, 6);
        dmdg.Zero();
        dmdg(0, 0) = 1.; dmdg(0, 4) = -zPred; dmdg(0, 5) = yPred;
        dmdg(1, 1) = 1.; dmdg(1, 3) = zPred;  dmdg(1, 5) = -xPred;
        dmdg(2, 2) = 1.; dmdg(2, 3) = -yPred; dmdg(2, 4) = xPred;

        //cout << "dmdg" << endl;
        //dmdg.Print();

        // derivatives of local residuals versus global alignment parameters
        TMatrixD drldrg(3, 3);
        drldrg.Zero();
        drldrg(0, 0) = uDir[0]; drldrg(0, 1) = uDir[1]; drldrg(0, 2) = uDir[2];
        drldrg(1, 0) = vDir[0]; drldrg(1, 1) = vDir[1]; drldrg(1, 2) = vDir[2];

        //cout << "drldrg" << endl;
        //drldrg.Print();

        //cout << "drdm * dmdg" << endl;
        //(drdm * dmdg).Print();

        // derivatives of local residuals versus rigid body parameters
        TMatrixD drldg(3, 6);
        drldg = drldrg * (drdm * dmdg);

        //cout << "drldg" << endl;
        //drldg.Print();

        // offset to determine labels for sensor sets or individual layers
        // 0: PXD, TODO 1: SVD, or individual layers
        // offset 0 is for alignment of whole setup
        int offset = 0;
        //if (sensorId > 16704) offset = 20; // svd, but needs to introduce new 6 constraints: sum rot&shifts of pxd&svd = 0

        derGlobal(0, 6) = drldg(0, 0); labGlobal.push_back(offset + 1);
        derGlobal(0, 7) = drldg(0, 1); labGlobal.push_back(offset + 2);
        derGlobal(0, 8) = drldg(0, 2); labGlobal.push_back(offset + 3);
        derGlobal(0, 9) = drldg(0, 3); labGlobal.push_back(offset + 4);
        derGlobal(0, 10) = drldg(0, 4); labGlobal.push_back(offset + 5);
        derGlobal(0, 11) = drldg(0, 5); labGlobal.push_back(offset + 6);

        derGlobal(1, 6) = drldg(1, 0);
        derGlobal(1, 7) = drldg(1, 1);
        derGlobal(1, 8) = drldg(1, 2);
        derGlobal(1, 9) = drldg(1, 3);
        derGlobal(1, 10) = drldg(1, 4);
        derGlobal(1, 11) = drldg(1, 5);



        measPoint.addGlobals(labGlobal, derGlobal);
        listOfPoints.push_back(measPoint);
        listOfLayers.push_back((unsigned int) sensorId);
        n_gbl_points++;
        n_gbl_meas_points++;
      } else {
        // Incompatible measurement, store point without measurement
        GblPoint dummyPoint(jacPointToPoint);
        listOfPoints.push_back(dummyPoint);
        listOfLayers.push_back((unsigned int) sensorId);
        n_gbl_points++;
        skipMeasurement = false;
        #ifdef DEBUG
        cout << " Dummy point inserted. " << endl;
        #endif
      }


      //cout << " Starting extrapolation..." << endl;
      try {

        // Extrapolate to next measurement to get material distribution
        if (ipoint_meas < npoints_meas - 1) {
          // Check if fitter info is in place
          if (!trk->getPoint(ipoint_meas + 1)->hasFitterInfo(rep)) {
            cout << " ERROR: Measurement point does not have a fitter info. Track will be skipped." << endl;
            return;
          }
          // Fitter of next point info which is only used now to get the plane
          KalmanFitterInfo* fi_i_plus_1 = dynamic_cast<KalmanFitterInfo*>(trk->getPoint(ipoint_meas + 1)->getFitterInfo(rep));
          if (!fi_i_plus_1) {
            cout << " ERROR: KalmanFitterInfo (with reference state) for measurement does not exist. Track will be skipped." << endl;
            return;
          }
          StateOnPlane refCopy(*reference);
          // Extrap to point + 1, do NOT stop at boundary
          rep->extrapolateToPlane(refCopy, trk->getPoint(ipoint_meas + 1)->getFitterInfo(rep)->getPlane(), false, false);
          getScattererFromMatList(trackLen,
                                  scatTheta,
                                  scatSMean,
                                  scatDeltaS,
                                  trackMomMag,
                                  particleMass,
                                  particleCharge,
                                  rep->getSteps());
          // Now calculate positions and scattering variance for equivalent scatterers
          // (Solution from Claus Kleinwort (DESY))
          s1 = 0.;
          s2 = scatSMean + scatDeltaS * scatDeltaS / (scatSMean - s1);
          theta1 = sqrt(scatTheta * scatTheta * scatDeltaS * scatDeltaS / (scatDeltaS * scatDeltaS + (scatSMean - s1) * (scatSMean - s1)));
          theta2 = sqrt(scatTheta * scatTheta * (scatSMean - s1) * (scatSMean - s1) / (scatDeltaS * scatDeltaS + (scatSMean - s1) * (scatSMean - s1)));

          if (m_enableScatterers && !m_enableIntermediateScatterer) {
            theta1 = scatTheta;
            theta2 = 0;
          } else if (!m_enableScatterers) {
            theta1 = 0.;
            theta2 = 0.;
          }

          if (s2 < 1.e-4 || s2 >= trackLen - 1.e-4 || s2 <= 1.e-4) {
            cout << " WARNING: GBL points will be too close. GBLTrajectory construction might fail. Let's try it..." << endl;
          }

        }
        // Return back to state on current plane
        delete reference;
        reference = new ReferenceStateOnPlane(*fi->getReferenceState());

        // If not last measurement, extrapolate and get jacobians for scattering points between this and next measurement
        if (ipoint_meas < npoints_meas - 1) {
          if (theta2 > scatEpsilon) {
            // First scatterer will be placed at current measurement point (see bellow)

            // theta2 > 0 ... we want second scatterer:
            // Extrapolate to s2 (remember we have s1 = 0)
            rep->extrapolateBy(*reference, s2, false, true);
            rep->getForwardJacobianAndNoise(jacMeas2Scat, noise, deltaState);
            // Finish extrapolation to next measurement
            double nextStep = rep->extrapolateToPlane(*reference, trk->getPoint(ipoint_meas + 1)->getFitterInfo(rep)->getPlane(), false, true);
            if (0. > nextStep) {
              cout << " ERROR: The extrapolation to measurement point " << (ipoint_meas + 2) << " stepped back by " << nextStep << "cm !!! Track will be skipped." << endl;
              return;
            }
            rep->getForwardJacobianAndNoise(jacPointToPoint, noise, deltaState);

          } else {
            // No scattering: extrapolate whole distance between measurements
            rep->extrapolateToPlane(*reference, trk->getPoint(ipoint_meas + 1)->getFitterInfo(rep)->getPlane(), false, true);
            //NOTE: we will load the jacobian from this extrapolation in next loop into measurement point
            //jacPointToPoint.Print();
            rep->getForwardJacobianAndNoise(jacPointToPoint, noise, deltaState);
            //jacPointToPoint.Print();
          }
        }
      } catch (...) {
        cout << " ERROR: Extrapolation failed. Track will be skipped." << endl;
        return;
      }
      //cout << " Extrapolation finished." << endl;


      // Now store scatterers if not last measurement and if we decided
      // there should be scatteres, otherwise the jacobian in measurement
      // stored above is already correct
      if (ipoint_meas < npoints_meas - 1) {

        if (theta1 > scatEpsilon) {
          // We have to insert first scatterer at measurement point
          // Therefore (because state is perpendicular to plane, NOT track)
          // we have non-diaonal matrix of multiple scattering covariance
          // We have to project scattering into plane coordinates
          double c1 = trackDir.Dot(plane->getU());
          double c2 = trackDir.Dot(plane->getV());
          TMatrixDSym scatCov(2);
          scatCov(0, 0) = 1. - c2 * c2;
          scatCov(1, 1) = 1. - c1 * c1;
          scatCov(0, 1) = c1 * c2;
          scatCov(1, 0) = c1 * c2;
          scatCov *= theta1 * theta1 / (1. - c1 * c1 - c2 * c2) / (1. - c1 * c1 - c2 * c2) ;

          // last point is the just inserted measurement (or dummy point)
          GblPoint& lastPoint = listOfPoints.at(n_gbl_points - 1);
          lastPoint.addScatterer(scatResidual, scatCov.Invert());

        }

        if (theta2 > scatEpsilon) {
          // second scatterer is somewhere between measurements
          // TrackRep state is perpendicular to track direction if using extrapolateBy (I asked Johannes Rauch),
          // therefore scattering covariance is diagonal (and both elements are equal)
          TMatrixDSym scatCov(2);
          scatCov.Zero();
          scatCov(0, 0) = theta2 * theta2;
          scatCov(1, 1) = theta2 * theta2;

          GblPoint scatPoint(jacMeas2Scat);
          scatPoint.addScatterer(scatResidual, scatCov.Invert());
          listOfPoints.push_back(scatPoint);
          listOfLayers.push_back(((unsigned int) sensorId) + 0.5);
          n_gbl_points++;
        }


      }
      // Free memory on the heap
      delete reference;
  }
  // We should have at least two measurement points to fit anything
  if (n_gbl_meas_points > 1) {
    int fitRes = -1;
    double pvalue = 0.;
    GblTrajectory* traj = 0;
    try {
      // Construct the GBL trajectory, seed not used
      traj = new GblTrajectory(listOfPoints, seedLabel, clSeed, fitQoverP);
      // Fit the trajectory
      fitRes = traj->fit(Chi2, Ndf, lostWeight, m_gblInternalIterations);
      if (fitRes != 0) {
        //#ifdef DEBUG
        //traj->printTrajectory(100);
        //traj->printData();
        //traj->printPoints(100);
        //#endif
      }
    } catch (...) {
      // Gbl failed critically (usually GblPoint::getDerivatives ... singular matrix inversion)
      return;
    }

    pvalue = TMath::Prob(Chi2, Ndf);

    //traj->printTrajectory(100);
    //traj->printData();
    //traj->printPoints(100);

    #ifdef OUTPUT
    // Fill histogram with fit result
    fitResHisto->Fill(fitRes);
    ndfHisto->Fill(Ndf);
    #endif

    #ifdef DEBUG
    cout << " Ref. Track Chi2      :  " << trkChi2 << endl;
    cout << " Ref. end momentum    :  " << trackMomMag << " GeV/c ";
    if (abs(trk->getCardinalRep()->getPDG()) == 11) {
      if (particleCharge < 0.)
        cout << "(electron)";
      else
        cout << "(positron)";
    }
    cout << endl;
    cout << "------------------ GBL Fit Results --------------------" << endl;
    cout << " Fit q/p parameter    :  " << ((fitQoverP) ? ("True") : ("False")) << endl;
    cout << " Valid trajectory     :  " << ((traj->isValid()) ? ("True") : ("False")) << endl;
    cout << " Fit result           :  " << fitRes << "    (0 for success)" << endl;
    cout << " # GBL meas. points   :  " << n_gbl_meas_points << endl;
    cout << " # GBL all points     :  " << n_gbl_points << endl;
    cout << " GBL track NDF        :  " << Ndf << "    (-1 for failure)" << endl;
    cout << " GBL track Chi2       :  " << Chi2 << endl;
    cout << " GBL track P-value    :  " << pvalue;
    if (pvalue < m_pValueCut)
      cout << " < p-value cut " << m_pValueCut;
    cout << endl;
    cout << "-------------------------------------------------------" << endl;
    #endif

    #ifdef OUTPUT
    bool hittedLayers[12];
    for (int hl = 0; hl < 12; hl++) {
      hittedLayers[hl] = false;
    }
    #endif

    // GBL fit succeded if Ndf >= 0, but Ndf = 0 is useless
    //TODO: Here should be some track quality check
    //    if (Ndf > 0 && fitRes == 0) {
    if (traj->isValid() && pvalue >= m_pValueCut && Ndf >= m_minNdf) {

      // In case someone forgot to use beginRun and dind't reset mille file name to ""
      if (!milleFile && m_milleFileName != "")
        milleFile = new MilleBinary(m_milleFileName);

      // Loop over all GBL points
      for (unsigned int p = 0; p < listOfPoints.size(); p++) {
        unsigned int label = p + 1;
        unsigned int numRes;
        TVectorD residuals(2);
        TVectorD measErrors(2);
        TVectorD resErrors(2);
        TVectorD downWeights(2);
        //TODO: now we only provide info about measurements, not kinks
        if (!listOfPoints.at(p).hasMeasurement())
          continue;

        #ifdef OUTPUT
        // Decode VxdId and get layer in TB setup
        unsigned int l = 0;
        unsigned int id = listOfLayers.at(p);
        // skip segment (5 bits)
        id = id >> 5;
        unsigned int sensor = id & 7;
        id = id >> 3;
        unsigned int ladder = id & 31;
        id = id >> 5;
        unsigned int layer = id & 7;

        if (layer == 7 && ladder == 2) {
          l = sensor;
        } else if (layer == 7 && ladder == 3) {
          l = sensor + 9 - 3;
        } else {
          l = layer + 3;
        }

        hittedLayers[l - 1] = true;
        #endif
        TVectorD localPar(5);
        TMatrixDSym localCov(5);
        traj->getResults(label, localPar, localCov);
        // Get GBL fit results
        traj->getMeasResults(label, numRes, residuals, measErrors, resErrors, downWeights);
        if (m_chi2Cut && (fabs(residuals[0] / resErrors[0]) > m_chi2Cut || fabs(residuals[1] / resErrors[1]) > m_chi2Cut))
          return;
        // Write layer-wise data
        #ifdef OUTPUT
        if (!writeHistoDataForLabel(listOfLayers.at(p), residuals, measErrors, resErrors, downWeights, localPar, localCov))
          return;
        #endif

      } // end for points

      // Write binary data to mille binary
      if (milleFile && m_milleFileName != "" && pvalue >= m_pValueCut && Ndf >= m_minNdf) {
        traj->milleOut(*milleFile);
        #ifdef DEBUG
        cout << " GBL Track written to Millepede II binary file." << endl;
        cout << "-------------------------------------------------------" << endl;
        #endif
      }

      #ifdef OUTPUT
      // Fill histograms
      chi2OndfHisto->Fill(Chi2 / Ndf);
      pValueHisto->Fill(TMath::Prob(Chi2, Ndf));
      // track counting
      stats->Fill(0);
      // hitted sensors statistics
      if (
        hittedLayers[0] &&
        hittedLayers[1] &&
        hittedLayers[2] &&
        hittedLayers[3] &&
        hittedLayers[4] &&
        hittedLayers[5] &&
        hittedLayers[6] &&
        hittedLayers[7] &&
        hittedLayers[8]
      ) {
        // front tel + pxd + svd
        stats->Fill(1);
      }

      if (
        hittedLayers[0] &&
        hittedLayers[1] &&
        hittedLayers[2] &&
        hittedLayers[3] &&
        hittedLayers[4] &&
        hittedLayers[5] &&
        hittedLayers[6] &&
        hittedLayers[7] &&
        hittedLayers[8] &&
        hittedLayers[9] &&
        hittedLayers[10] &&
        hittedLayers[11]
      ) {
        // all layers
        stats->Fill(2);
      }
      if (
        hittedLayers[3] &&
        hittedLayers[4] &&
        hittedLayers[5] &&
        hittedLayers[6] &&
        hittedLayers[7] &&
        hittedLayers[8]
      ) {
        // vxd
        stats->Fill(3);
      }
      if (
        hittedLayers[5] &&
        hittedLayers[6] &&
        hittedLayers[7] &&
        hittedLayers[8]
      ) {
        // svd
        stats->Fill(4);
      }
      if (
        hittedLayers[0] &&
        hittedLayers[1] &&
        hittedLayers[2] &&

        hittedLayers[5] &&
        hittedLayers[6] &&
        hittedLayers[7] &&
        hittedLayers[8] &&
        hittedLayers[9] &&
        hittedLayers[10] &&
        hittedLayers[11]
      ) {
        // all except pxd
        stats->Fill(5);
      }
      if (
        hittedLayers[0] &&
        hittedLayers[1] &&
        hittedLayers[2] &&

        hittedLayers[5] &&
        hittedLayers[6] &&
        hittedLayers[7] &&
        hittedLayers[8]
      ) {
        // front tel + svd
        stats->Fill(6);
      }
      if (
        hittedLayers[9] &&
        hittedLayers[10] &&
        hittedLayers[11]
      ) {
        // backward tel
        stats->Fill(7);
      }
      #endif
    }

    // Free memory
    delete traj;
  }
}

setGBLOptions()

void genfit::GFGbl::setGBLOptions ( std::string  internalIterations = "THC", bool  enableScatterers = true, bool  enableIntermediateScatterer = true  )

inline

Sets internal GBL down-weighting.

Parameters

internalIterations

GBL internal down-weighting settings, see GBL doc

Returns

void

Definition at line 94 of file GFGbl.h.

                                                                                                                                    {
      m_gblInternalIterations = internalIterations;
      if (!enableScatterers)
        enableIntermediateScatterer = false;
      m_enableScatterers = enableScatterers;
      m_enableIntermediateScatterer = enableIntermediateScatterer;
    }

setMP2Options()

void genfit::GFGbl::setMP2Options ( double  pValueCut = 0., unsigned int  minNdf = 1, std::string  mille_file_name = "millefile.dat", double  chi2Cut = 0.  )

inline

Sets GBL & Millepede settings.

Parameters

pValueCut	minimum track p-value for MP2 output
minNdf	minimum track NDF for MP2 output
mille_file_name	name of MP2 binary file for output

Returns

void

Definition at line 109 of file GFGbl.h.

                                                                                                                                         {
      m_pValueCut = pValueCut;
      m_minNdf = minNdf;
      m_milleFileName = mille_file_name;
      m_chi2Cut = chi2Cut;
    }

Member Data Documentation

m_chi2Cut

double genfit::GFGbl::m_chi2Cut

private

Definition at line 58 of file GFGbl.h.

m_enableIntermediateScatterer

bool genfit::GFGbl::m_enableIntermediateScatterer

private

Definition at line 60 of file GFGbl.h.

m_enableScatterers

bool genfit::GFGbl::m_enableScatterers

private

Definition at line 59 of file GFGbl.h.

m_gblInternalIterations

std::string genfit::GFGbl::m_gblInternalIterations

private

Definition at line 55 of file GFGbl.h.

m_milleFileName

std::string genfit::GFGbl::m_milleFileName

private

Definition at line 54 of file GFGbl.h.

m_minNdf

int genfit::GFGbl::m_minNdf

private

Definition at line 57 of file GFGbl.h.

m_pValueCut

double genfit::GFGbl::m_pValueCut

private

Definition at line 56 of file GFGbl.h.

---

The documentation for this class was generated from the following files:

• genfit/GBL/include/GFGbl.h
• genfit/GBL/src/GFGbl.cc
