This class collects all information needed and produced by a specific AbsFitter and is specific to one AbsTrackRep of the Track. More...

#include <AbsFitterInfo.h>

Inheritance diagram for genfit::AbsFitterInfo:

[legend]

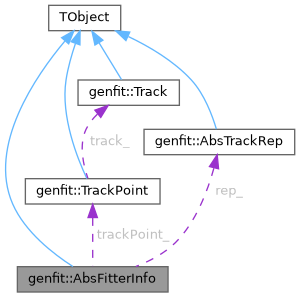

Collaboration diagram for genfit::AbsFitterInfo:

[legend]

Public Member Functions
	AbsFitterInfo ()

	AbsFitterInfo (const TrackPoint trackPoint, const AbsTrackRep rep)

virtual	~AbsFitterInfo ()

virtual AbsFitterInfo *	clone () const =0
	Deep copy ctor for polymorphic class.

const TrackPoint *	getTrackPoint () const

const AbsTrackRep *	getRep () const

void	setTrackPoint (const TrackPoint *tp)

virtual void	setRep (const AbsTrackRep *rep)

virtual bool	hasMeasurements () const =0

virtual bool	hasReferenceState () const =0

virtual bool	hasForwardPrediction () const =0

virtual bool	hasBackwardPrediction () const =0

virtual bool	hasPrediction (int direction) const

virtual bool	hasForwardUpdate () const =0

virtual bool	hasBackwardUpdate () const =0

virtual bool	hasUpdate (int direction) const

virtual void	deleteForwardInfo ()=0

virtual void	deleteBackwardInfo ()=0

virtual void	deleteReferenceInfo ()=0

virtual void	deleteMeasurementInfo ()=0

const SharedPlanePtr &	getPlane () const

virtual const MeasuredStateOnPlane &	getFittedState (bool biased=true) const =0

virtual MeasurementOnPlane	getResidual (unsigned int iMeasurement=0, bool biased=true, bool onlyMeasurementErrors=false) const =0

void	setPlane (const SharedPlanePtr &plane)

virtual void	Print (const Option_t *="") const

virtual bool	checkConsistency () const =0

Protected Attributes
const TrackPoint *	trackPoint_

const AbsTrackRep *	rep_
	No ownership.

SharedPlanePtr	sharedPlane_
	No ownership.

Private Member Functions
	AbsFitterInfo (const AbsFitterInfo &)
	Shared ownership. '!' shuts up ROOT.

AbsFitterInfo &	operator= (const AbsFitterInfo &)

Detailed Description

This class collects all information needed and produced by a specific AbsFitter and is specific to one AbsTrackRep of the Track.

Definition at line 41 of file AbsFitterInfo.h.

Constructor & Destructor Documentation

◆ AbsFitterInfo() [1/3]

genfit::AbsFitterInfo::AbsFitterInfo ( )

Definition at line 27 of file AbsFitterInfo.cc.

                             :
  trackPoint_(NULL),
  rep_(NULL)
{
  ;
}

◆ AbsFitterInfo() [2/3]

genfit::AbsFitterInfo::AbsFitterInfo	(	const TrackPoint *	trackPoint,
		const AbsTrackRep *	rep
	)

Definition at line 34 of file AbsFitterInfo.cc.

                                                                                 :
  trackPoint_(trackPoint),
  rep_(rep)
{
  ;
}

◆ ~AbsFitterInfo()

virtual genfit::AbsFitterInfo::~AbsFitterInfo ( )

inlinevirtual

Definition at line 48 of file AbsFitterInfo.h.

48{};

◆ AbsFitterInfo() [3/3]

genfit::AbsFitterInfo::AbsFitterInfo ( const AbsFitterInfo & )

private

Shared ownership. '!' shuts up ROOT.

Member Function Documentation

◆ checkConsistency()

virtual bool genfit::AbsFitterInfo::checkConsistency ( ) const

pure virtual

Implemented in genfit::KalmanFitterInfo.

◆ clone()

virtual AbsFitterInfo * genfit::AbsFitterInfo::clone ( ) const

pure virtual

Deep copy ctor for polymorphic class.

Implemented in genfit::KalmanFitterInfo.

◆ deleteBackwardInfo()

virtual void genfit::AbsFitterInfo::deleteBackwardInfo ( )

pure virtual

Implemented in genfit::KalmanFitterInfo.

◆ deleteForwardInfo()

virtual void genfit::AbsFitterInfo::deleteForwardInfo ( )

pure virtual

Implemented in genfit::KalmanFitterInfo.

◆ deleteMeasurementInfo()

virtual void genfit::AbsFitterInfo::deleteMeasurementInfo ( )

pure virtual

Implemented in genfit::KalmanFitterInfo.

◆ deleteReferenceInfo()

virtual void genfit::AbsFitterInfo::deleteReferenceInfo ( )

pure virtual

Implemented in genfit::KalmanFitterInfo.

◆ getFittedState()

virtual const MeasuredStateOnPlane & genfit::AbsFitterInfo::getFittedState ( bool biased = true ) const

pure virtual

Implemented in genfit::KalmanFitterInfo.

◆ getPlane()

const SharedPlanePtr & genfit::AbsFitterInfo::getPlane ( ) const

inline

Definition at line 73 of file AbsFitterInfo.h.

73{return sharedPlane_;}

genfit::AbsFitterInfo::sharedPlane_

SharedPlanePtr sharedPlane_

No ownership.

Definition AbsFitterInfo.h:93

◆ getRep()

const AbsTrackRep * genfit::AbsFitterInfo::getRep ( ) const

inline

Definition at line 54 of file AbsFitterInfo.h.

54{return rep_;}

◆ getResidual()

virtual MeasurementOnPlane genfit::AbsFitterInfo::getResidual	(	unsigned int	iMeasurement = `0`,
		bool	biased = `true`,
		bool	onlyMeasurementErrors = `false`
	)		const

pure virtual

Implemented in genfit::KalmanFitterInfo.

◆ getTrackPoint()

const TrackPoint * genfit::AbsFitterInfo::getTrackPoint ( ) const

inline

Definition at line 53 of file AbsFitterInfo.h.

53{return trackPoint_;}

◆ hasBackwardPrediction()

virtual bool genfit::AbsFitterInfo::hasBackwardPrediction ( ) const

pure virtual

Implemented in genfit::KalmanFitterInfo.

◆ hasBackwardUpdate()

virtual bool genfit::AbsFitterInfo::hasBackwardUpdate ( ) const

pure virtual

Implemented in genfit::KalmanFitterInfo.

◆ hasForwardPrediction()

virtual bool genfit::AbsFitterInfo::hasForwardPrediction ( ) const

pure virtual

Implemented in genfit::KalmanFitterInfo.

◆ hasForwardUpdate()

virtual bool genfit::AbsFitterInfo::hasForwardUpdate ( ) const

pure virtual

Implemented in genfit::KalmanFitterInfo.

◆ hasMeasurements()

virtual bool genfit::AbsFitterInfo::hasMeasurements ( ) const

pure virtual

Implemented in genfit::KalmanFitterInfo.

◆ hasPrediction()

virtual bool genfit::AbsFitterInfo::hasPrediction ( int direction ) const

inlinevirtual

Definition at line 63 of file AbsFitterInfo.h.

63{if (direction >=0) return hasForwardPrediction(); return hasBackwardPrediction();}

genfit::AbsFitterInfo::hasForwardPrediction

virtual bool hasForwardPrediction() const =0

genfit::AbsFitterInfo::hasBackwardPrediction

virtual bool hasBackwardPrediction() const =0

◆ hasReferenceState()

virtual bool genfit::AbsFitterInfo::hasReferenceState ( ) const

pure virtual

Implemented in genfit::KalmanFitterInfo.

◆ hasUpdate()

virtual bool genfit::AbsFitterInfo::hasUpdate ( int direction ) const

inlinevirtual

Reimplemented in genfit::KalmanFitterInfo.

Definition at line 66 of file AbsFitterInfo.h.

66{if (direction >=0) return hasForwardUpdate(); return hasBackwardUpdate();}

genfit::AbsFitterInfo::hasForwardUpdate

virtual bool hasForwardUpdate() const =0

genfit::AbsFitterInfo::hasBackwardUpdate

virtual bool hasBackwardUpdate() const =0

◆ operator=()

AbsFitterInfo & genfit::AbsFitterInfo::operator= ( const AbsFitterInfo & )

private

◆ Print()

virtual void genfit::AbsFitterInfo::Print ( const Option_t * = "" ) const

inlinevirtual

Reimplemented in genfit::KalmanFitterInfo.

Definition at line 79 of file AbsFitterInfo.h.

79{;}

◆ setPlane()

void genfit::AbsFitterInfo::setPlane ( const SharedPlanePtr & plane )

inline

Definition at line 77 of file AbsFitterInfo.h.

77{sharedPlane_ = plane;}

◆ setRep()

virtual void genfit::AbsFitterInfo::setRep ( const AbsTrackRep * rep )

inlinevirtual

Reimplemented in genfit::KalmanFitterInfo.

Definition at line 57 of file AbsFitterInfo.h.

57{rep_ = rep;}

◆ setTrackPoint()

void genfit::AbsFitterInfo::setTrackPoint ( const TrackPoint * tp )

inline

Definition at line 56 of file AbsFitterInfo.h.

56{trackPoint_ = tp;}

makeCascade.tp

tp

Definition makeCascade.py:80

Member Data Documentation

◆ rep_

const AbsTrackRep* genfit::AbsFitterInfo::rep_

protected

No ownership.

Pointer to AbsTrackRep with respect to which the FitterInfo is defined

Definition at line 91 of file AbsFitterInfo.h.

◆ sharedPlane_

SharedPlanePtr genfit::AbsFitterInfo::sharedPlane_

protected

No ownership.

Definition at line 93 of file AbsFitterInfo.h.

◆ trackPoint_

const TrackPoint* genfit::AbsFitterInfo::trackPoint_

protected

Pointer to TrackPoint where the FitterInfo belongs to

Definition at line 87 of file AbsFitterInfo.h.

The documentation for this class was generated from the following files:

genfit/core/include/AbsFitterInfo.h
genfit/core/src/AbsFitterInfo.cc
