A state with arbitrary dimension defined in a DetPlane. More...

#include <StateOnPlane.h>

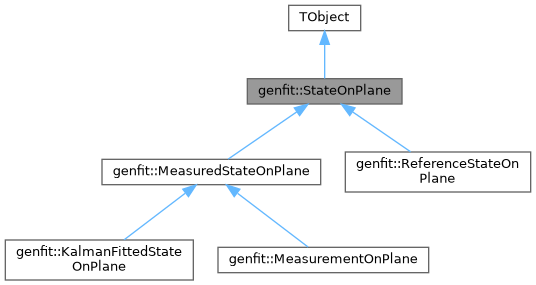

Inheritance diagram for genfit::StateOnPlane:

[legend]

Collaboration diagram for genfit::StateOnPlane:

[legend]

Public Member Functions
	StateOnPlane (const AbsTrackRep *rep=NULL)

	StateOnPlane (const TVectorD &state, const SharedPlanePtr &plane, const AbsTrackRep *rep)

	StateOnPlane (const TVectorD &state, const SharedPlanePtr &plane, const AbsTrackRep *rep, const TVectorD &auxInfo)

StateOnPlane &	operator= (StateOnPlane other)

void	swap (StateOnPlane &other)

virtual	~StateOnPlane ()

const TVectorD &	getState () const

TVectorD &	getState ()

const TVectorD &	getAuxInfo () const

TVectorD &	getAuxInfo ()

const SharedPlanePtr &	getPlane () const

const AbsTrackRep *	getRep () const

void	setState (const TVectorD &state)

void	setPlane (const SharedPlanePtr &plane)

void	setStatePlane (const TVectorD &state, const SharedPlanePtr &plane)

void	setAuxInfo (const TVectorD &auxInfo)

void	setRep (const AbsTrackRep *rep)

double	extrapolateToPlane (const SharedPlanePtr &plane, bool stopAtBoundary=false, bool calcJacobianNoise=false)

double	extrapolateToLine (const TVector3 &linePoint, const TVector3 &lineDirection, bool stopAtBoundary=false, bool calcJacobianNoise=false)

double	extrapolateToPoint (const TVector3 &point, bool stopAtBoundary=false, bool calcJacobianNoise=false)

double	extrapolateToPoint (const TVector3 &point, const TMatrixDSym &G, bool stopAtBoundary=false, bool calcJacobianNoise=false)

double	extrapolateToCylinder (double radius, const TVector3 &linePoint=TVector3(0., 0., 0.), const TVector3 &lineDirection=TVector3(0., 0., 1.), bool stopAtBoundary=false, bool calcJacobianNoise=false)

double	extrapolateToSphere (double radius, const TVector3 &point=TVector3(0., 0., 0.), bool stopAtBoundary=false, bool calcJacobianNoise=false)

double	extrapolateBy (double step, bool stopAtBoundary=false, bool calcJacobianNoise=false)

double	extrapolateToMeasurement (const AbsMeasurement *measurement, bool stopAtBoundary=false, bool calcJacobianNoise=false)

TVector3	getPos () const

TVector3	getMom () const

TVector3	getDir () const

void	getPosMom (TVector3 &pos, TVector3 &mom) const

void	getPosDir (TVector3 &pos, TVector3 &dir) const

TVectorD	get6DState () const

double	getMomMag () const

int	getPDG () const

double	getCharge () const

double	getQop () const

double	getMass () const

void	setPosMom (const TVector3 &pos, const TVector3 &mom)

void	setPosMom (const TVectorD &state6)

void	setChargeSign (double charge)

void	setQop (double qop)

virtual void	Print (Option_t *option="") const

Protected Attributes
TVectorD	state_

TVectorD	auxInfo_

SharedPlanePtr	sharedPlane_

Private Attributes
const AbsTrackRep *	rep_
	Shared ownership. '!' in order to silence ROOT, custom streamer writes and reads this.

Detailed Description

A state with arbitrary dimension defined in a DetPlane.

The dimension and meaning of the state_ vector are defined by the track parameterization of the rep_. sharedPlane_ is a shared_pointer, the ownership over that plane is shared between all StateOnPlane objects defined in that plane. The definition of the state is bound to the TrackRep rep_. Therefore, the StateOnPlane contains a pointer to a AbsTrackRep. It will provide functionality to extrapolate it and translate the state it into cartesian coordinates. Shortcuts to all functions of the AbsTrackRep which use this StateOnPlane are also provided here.

Definition at line 45 of file StateOnPlane.h.

Constructor & Destructor Documentation

◆ StateOnPlane() [1/3]

genfit::StateOnPlane::StateOnPlane ( const AbsTrackRep * rep = NULL )

inline

Definition at line 142 of file StateOnPlane.h.

                                                        :
  state_(0), auxInfo_(0), sharedPlane_(), rep_(rep)
{
  if (rep != NULL) {
    state_.ResizeTo(rep->getDim());
  }
}

◆ StateOnPlane() [2/3]

genfit::StateOnPlane::StateOnPlane	(	const TVectorD &	state,
		const SharedPlanePtr &	plane,
		const AbsTrackRep *	rep
	)

inline

Definition at line 150 of file StateOnPlane.h.

                                                                                                            :
  state_(state), auxInfo_(0), sharedPlane_(plane), rep_(rep)
{
  assert(rep != NULL);
  assert(sharedPlane_.get() != NULL);
}

◆ StateOnPlane() [3/3]

genfit::StateOnPlane::StateOnPlane	(	const TVectorD &	state,
		const SharedPlanePtr &	plane,
		const AbsTrackRep *	rep,
		const TVectorD &	auxInfo
	)

inline

Definition at line 157 of file StateOnPlane.h.

                                                                                                                                     :
  state_(state), auxInfo_(auxInfo), sharedPlane_(plane), rep_(rep)
{
  assert(rep != NULL);
  assert(sharedPlane_.get() != NULL);
}

◆ ~StateOnPlane()

virtual genfit::StateOnPlane::~StateOnPlane ( )

inlinevirtual

Definition at line 57 of file StateOnPlane.h.

57{}

Member Function Documentation

◆ extrapolateBy()

double genfit::StateOnPlane::extrapolateBy	(	double	step,
		bool	stopAtBoundary = `false`,
		bool	calcJacobianNoise = `false`
	)

inline

Definition at line 96 of file StateOnPlane.h.

98 {return rep_->extrapolateBy(*this, step, stopAtBoundary, calcJacobianNoise);}

genfit::AbsTrackRep::extrapolateBy

virtual double extrapolateBy(StateOnPlane &state, double step, bool stopAtBoundary=false, bool calcJacobianNoise=false) const =0

Extrapolates the state by step (cm) and returns the extrapolation length and, via reference,...

◆ extrapolateToCylinder()

double genfit::StateOnPlane::extrapolateToCylinder	(	double	radius,
		const TVector3 &	linePoint = `TVector3(0.,0.,0.)`,
		const TVector3 &	lineDirection = `TVector3(0.,0.,1.)`,
		bool	stopAtBoundary = `false`,
		bool	calcJacobianNoise = `false`
	)

inline

Definition at line 87 of file StateOnPlane.h.

91 {return rep_->extrapolateToCylinder(*this, radius, linePoint, lineDirection, stopAtBoundary, calcJacobianNoise);}

genfit::AbsTrackRep::extrapolateToCylinder

virtual double extrapolateToCylinder(StateOnPlane &state, double radius, const TVector3 &linePoint=TVector3(0., 0., 0.), const TVector3 &lineDirection=TVector3(0., 0., 1.), bool stopAtBoundary=false, bool calcJacobianNoise=false) const =0

Extrapolates the state to the cylinder surface, and returns the extrapolation length and,...

◆ extrapolateToLine()

double genfit::StateOnPlane::extrapolateToLine	(	const TVector3 &	linePoint,
		const TVector3 &	lineDirection,
		bool	stopAtBoundary = `false`,
		bool	calcJacobianNoise = `false`
	)

inline

Definition at line 76 of file StateOnPlane.h.

79 {return rep_->extrapolateToLine(*this, linePoint, lineDirection, stopAtBoundary, calcJacobianNoise);}

genfit::AbsTrackRep::extrapolateToLine

virtual double extrapolateToLine(StateOnPlane &state, const TVector3 &linePoint, const TVector3 &lineDirection, bool stopAtBoundary=false, bool calcJacobianNoise=false) const =0

Extrapolates the state to the POCA to a line, and returns the extrapolation length and,...

◆ extrapolateToMeasurement()

double genfit::StateOnPlane::extrapolateToMeasurement	(	const AbsMeasurement *	measurement,
		bool	stopAtBoundary = `false`,
		bool	calcJacobianNoise = `false`
	)

inline

Definition at line 99 of file StateOnPlane.h.

101 {return rep_->extrapolateToMeasurement(*this, measurement, stopAtBoundary, calcJacobianNoise);}

genfit::AbsTrackRep::extrapolateToMeasurement

double extrapolateToMeasurement(StateOnPlane &state, const AbsMeasurement *measurement, bool stopAtBoundary=false, bool calcJacobianNoise=false) const

extrapolate to an AbsMeasurement

Definition AbsTrackRep.cc:50

◆ extrapolateToPlane()

double genfit::StateOnPlane::extrapolateToPlane	(	const SharedPlanePtr &	plane,
		bool	stopAtBoundary = `false`,
		bool	calcJacobianNoise = `false`
	)

inline

Definition at line 73 of file StateOnPlane.h.

75 {return rep_->extrapolateToPlane(*this, plane, stopAtBoundary, calcJacobianNoise);}

genfit::AbsTrackRep::extrapolateToPlane

virtual double extrapolateToPlane(StateOnPlane &state, const genfit::SharedPlanePtr &plane, bool stopAtBoundary=false, bool calcJacobianNoise=false) const =0

Extrapolates the state to plane, and returns the extrapolation length and, via reference,...

◆ extrapolateToPoint() [1/2]

double genfit::StateOnPlane::extrapolateToPoint	(	const TVector3 &	point,
		bool	stopAtBoundary = `false`,
		bool	calcJacobianNoise = `false`
	)

inline

Definition at line 80 of file StateOnPlane.h.

82 {return rep_->extrapolateToPoint(*this, point, stopAtBoundary, calcJacobianNoise);}

genfit::AbsTrackRep::extrapolateToPoint

virtual double extrapolateToPoint(StateOnPlane &state, const TVector3 &point, bool stopAtBoundary=false, bool calcJacobianNoise=false) const =0

Extrapolates the state to the POCA to a point, and returns the extrapolation length and,...

◆ extrapolateToPoint() [2/2]

double genfit::StateOnPlane::extrapolateToPoint	(	const TVector3 &	point,
		const TMatrixDSym &	G,
		bool	stopAtBoundary = `false`,
		bool	calcJacobianNoise = `false`
	)

inline

Definition at line 83 of file StateOnPlane.h.

86 {return rep_->extrapolateToPoint(*this, point, G, stopAtBoundary, calcJacobianNoise);}

◆ extrapolateToSphere()

double genfit::StateOnPlane::extrapolateToSphere	(	double	radius,
		const TVector3 &	point = `TVector3(0.,0.,0.)`,
		bool	stopAtBoundary = `false`,
		bool	calcJacobianNoise = `false`
	)

inline

Definition at line 92 of file StateOnPlane.h.

95 {return rep_->extrapolateToSphere(*this, radius, point, stopAtBoundary, calcJacobianNoise);}

genfit::AbsTrackRep::extrapolateToSphere

virtual double extrapolateToSphere(StateOnPlane &state, double radius, const TVector3 &point=TVector3(0., 0., 0.), bool stopAtBoundary=false, bool calcJacobianNoise=false) const =0

Extrapolates the state to the sphere surface, and returns the extrapolation length and,...

◆ get6DState()

TVectorD genfit::StateOnPlane::get6DState ( ) const

inline

Definition at line 109 of file StateOnPlane.h.

109{return rep_->get6DState(*this);}

genfit::AbsTrackRep::get6DState

virtual TVectorD get6DState(const StateOnPlane &state) const

Get the 6D state vector (x, y, z, p_x, p_y, p_z).

Definition AbsTrackRep.cc:59

◆ getAuxInfo() [1/2]

TVectorD & genfit::StateOnPlane::getAuxInfo ( )

inline

Definition at line 62 of file StateOnPlane.h.

62{return auxInfo_;}

◆ getAuxInfo() [2/2]

const TVectorD & genfit::StateOnPlane::getAuxInfo ( ) const

inline

Definition at line 61 of file StateOnPlane.h.

61{return auxInfo_;}

◆ getCharge()

double genfit::StateOnPlane::getCharge ( ) const

inline

Definition at line 112 of file StateOnPlane.h.

112{return rep_->getCharge(*this);}

genfit::AbsTrackRep::getCharge

virtual double getCharge(const StateOnPlane &state) const =0

Get the (fitted) charge of a state. This is not always equal the pdg charge (e.g. if the charge sign ...

◆ getDir()

TVector3 genfit::StateOnPlane::getDir ( ) const

inline

Definition at line 106 of file StateOnPlane.h.

106{return rep_->getDir(*this);}

genfit::AbsTrackRep::getDir

TVector3 getDir(const StateOnPlane &state) const

Get the direction vector of a state.

Definition AbsTrackRep.h:230

◆ getMass()

double genfit::StateOnPlane::getMass ( ) const

inline

Definition at line 114 of file StateOnPlane.h.

114{return rep_->getMass(*this);}

genfit::AbsTrackRep::getMass

double getMass(const StateOnPlane &state) const

Get tha particle mass in GeV/c^2.

Definition AbsTrackRep.cc:100

◆ getMom()

TVector3 genfit::StateOnPlane::getMom ( ) const

inline

Definition at line 105 of file StateOnPlane.h.

105{return rep_->getMom(*this);}

genfit::AbsTrackRep::getMom

virtual TVector3 getMom(const StateOnPlane &state) const =0

Get the cartesian momentum vector of a state.

◆ getMomMag()

double genfit::StateOnPlane::getMomMag ( ) const

inline

Definition at line 110 of file StateOnPlane.h.

110{return rep_->getMomMag(*this);}

genfit::AbsTrackRep::getMomMag

virtual double getMomMag(const StateOnPlane &state) const =0

get the magnitude of the momentum in GeV.

◆ getPDG()

int genfit::StateOnPlane::getPDG ( ) const

inline

Definition at line 111 of file StateOnPlane.h.

111{return rep_->getPDG();}

genfit::AbsTrackRep::getPDG

int getPDG() const

Get the pdg code.

Definition AbsTrackRep.h:256

◆ getPlane()

const SharedPlanePtr & genfit::StateOnPlane::getPlane ( ) const

inline

Definition at line 63 of file StateOnPlane.h.

63{return sharedPlane_;}

◆ getPos()

TVector3 genfit::StateOnPlane::getPos ( ) const

inline

Definition at line 104 of file StateOnPlane.h.

104{return rep_->getPos(*this);}

genfit::AbsTrackRep::getPos

virtual TVector3 getPos(const StateOnPlane &state) const =0

Get the cartesian position of a state.

◆ getPosDir()

void genfit::StateOnPlane::getPosDir	(	TVector3 &	pos,
		TVector3 &	dir
	)		const

inline

Definition at line 108 of file StateOnPlane.h.

108{rep_->getPosDir(*this, pos, dir);}

genfit::AbsTrackRep::getPosDir

void getPosDir(const StateOnPlane &state, TVector3 &pos, TVector3 &dir) const

Get cartesian position and direction vector of a state.

Definition AbsTrackRep.h:236

◆ getPosMom()

void genfit::StateOnPlane::getPosMom	(	TVector3 &	pos,
		TVector3 &	mom
	)		const

inline

Definition at line 107 of file StateOnPlane.h.

107{rep_->getPosMom(*this, pos, mom);}

genfit::AbsTrackRep::getPosMom

virtual void getPosMom(const StateOnPlane &state, TVector3 &pos, TVector3 &mom) const =0

Get cartesian position and momentum vector of a state.

◆ getQop()

double genfit::StateOnPlane::getQop ( ) const

inline

Definition at line 113 of file StateOnPlane.h.

113{return rep_->getQop(*this);}

genfit::AbsTrackRep::getQop

virtual double getQop(const StateOnPlane &state) const =0

Get charge over momentum.

◆ getRep()

const AbsTrackRep * genfit::StateOnPlane::getRep ( ) const

inline

Definition at line 64 of file StateOnPlane.h.

64{return rep_;}

◆ getState() [1/2]

TVectorD & genfit::StateOnPlane::getState ( )

inline

Definition at line 60 of file StateOnPlane.h.

60{return state_;}

◆ getState() [2/2]

const TVectorD & genfit::StateOnPlane::getState ( ) const

inline

Definition at line 59 of file StateOnPlane.h.

59{return state_;}

◆ operator=()

StateOnPlane & genfit::StateOnPlane::operator= ( StateOnPlane other )

inline

Definition at line 164 of file StateOnPlane.h.

                                                               {
  swap(other);
  return *this;
}

◆ Print()

void genfit::StateOnPlane::Print ( Option_t * option = "" ) const

virtual

Reimplemented in genfit::MeasuredStateOnPlane, genfit::MeasurementOnPlane, and genfit::ReferenceStateOnPlane.

Definition at line 30 of file StateOnPlane.cc.

                                        {
  std::cout << "genfit::StateOnPlane ";
  std::cout << " state vector: "; state_.Print();
  if (sharedPlane_ != NULL) {
    std::cout << " defined in plane "; sharedPlane_->Print();
    TVector3 pos, mom;
    getRep()->getPosMom(*this, pos, mom);
    std::cout << " 3D position: "; pos.Print();
    std::cout << " 3D momentum: "; mom.Print();
  }
}

◆ setAuxInfo()

void genfit::StateOnPlane::setAuxInfo ( const TVectorD & auxInfo )

inline

Definition at line 69 of file StateOnPlane.h.

69{if(auxInfo_.GetNrows() == 0) auxInfo_.ResizeTo(auxInfo); auxInfo_ = auxInfo;}

◆ setChargeSign()

void genfit::StateOnPlane::setChargeSign ( double charge )

inline

Definition at line 118 of file StateOnPlane.h.

118{rep_->setChargeSign(*this, charge);}

genfit::AbsTrackRep::setChargeSign

virtual void setChargeSign(StateOnPlane &state, double charge) const =0

Set the sign of the charge according to charge.

◆ setPlane()

void genfit::StateOnPlane::setPlane ( const SharedPlanePtr & plane )

inline

Definition at line 67 of file StateOnPlane.h.

67{sharedPlane_ = plane;}

◆ setPosMom() [1/2]

void genfit::StateOnPlane::setPosMom	(	const TVector3 &	pos,
		const TVector3 &	mom
	)

inline

Definition at line 116 of file StateOnPlane.h.

116{rep_->setPosMom(*this, pos, mom);}

genfit::AbsTrackRep::setPosMom

virtual void setPosMom(StateOnPlane &state, const TVector3 &pos, const TVector3 &mom) const =0

Set position and momentum of state.

◆ setPosMom() [2/2]

void genfit::StateOnPlane::setPosMom ( const TVectorD & state6 )

inline

Definition at line 117 of file StateOnPlane.h.

117{rep_->setPosMom(*this, state6);}

◆ setQop()

void genfit::StateOnPlane::setQop ( double qop )

inline

Definition at line 119 of file StateOnPlane.h.

119{rep_->setQop(*this, qop);}

genfit::AbsTrackRep::setQop

virtual void setQop(StateOnPlane &state, double qop) const =0

Set charge/momentum.

◆ setRep()

void genfit::StateOnPlane::setRep ( const AbsTrackRep * rep )

inline

Definition at line 70 of file StateOnPlane.h.

70{rep_ = rep;}

◆ setState()

void genfit::StateOnPlane::setState ( const TVectorD & state )

inline

Definition at line 66 of file StateOnPlane.h.

66{if(state_.GetNrows() == 0) state_.ResizeTo(state); state_ = state;}

◆ setStatePlane()

void genfit::StateOnPlane::setStatePlane	(	const TVectorD &	state,
		const SharedPlanePtr &	plane
	)

inline

Definition at line 68 of file StateOnPlane.h.

68{state_ = state; sharedPlane_ = plane;}

◆ swap()

void genfit::StateOnPlane::swap ( StateOnPlane & other )

inline

Definition at line 169 of file StateOnPlane.h.

                                                  {
  this->state_.ResizeTo(other.state_);
  std::swap(this->state_, other.state_);
  this->auxInfo_.ResizeTo(other.auxInfo_);
  std::swap(this->auxInfo_, other.auxInfo_);
  this->sharedPlane_.swap(other.sharedPlane_);
  std::swap(this->rep_, other.rep_);
}

Member Data Documentation

◆ auxInfo_

TVectorD genfit::StateOnPlane::auxInfo_

protected

Definition at line 127 of file StateOnPlane.h.

◆ rep_

const AbsTrackRep* genfit::StateOnPlane::rep_

private

Shared ownership. '!' in order to silence ROOT, custom streamer writes and reads this.

Pointer to TrackRep with respect to which StateOnPlane is defined

Definition at line 134 of file StateOnPlane.h.

◆ sharedPlane_

SharedPlanePtr genfit::StateOnPlane::sharedPlane_

protected

Definition at line 128 of file StateOnPlane.h.

◆ state_

TVectorD genfit::StateOnPlane::state_

protected

Definition at line 126 of file StateOnPlane.h.

The documentation for this class was generated from the following files:

genfit/core/include/StateOnPlane.h
genfit/core/src/StateOnPlane.cc

Public Member Functions

Protected Attributes

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ StateOnPlane() [1/3]

◆ StateOnPlane() [2/3]

◆ StateOnPlane() [3/3]

◆ ~StateOnPlane()

Member Function Documentation

◆ extrapolateBy()

◆ extrapolateToCylinder()

◆ extrapolateToLine()

◆ extrapolateToMeasurement()

◆ extrapolateToPlane()

◆ extrapolateToPoint() [1/2]

◆ extrapolateToPoint() [2/2]

◆ extrapolateToSphere()

◆ get6DState()

◆ getAuxInfo() [1/2]

◆ getAuxInfo() [2/2]

◆ getCharge()

◆ getDir()

◆ getMass()

◆ getMom()

◆ getMomMag()

◆ getPDG()

◆ getPlane()

◆ getPos()

◆ getPosDir()

◆ getPosMom()

◆ getQop()

◆ getRep()

◆ getState() [1/2]

◆ getState() [2/2]

◆ operator=()

◆ Print()

◆ setAuxInfo()

◆ setChargeSign()

◆ setPlane()

◆ setPosMom() [1/2]

◆ setPosMom() [2/2]

◆ setQop()

◆ setRep()

◆ setState()

◆ setStatePlane()

◆ swap()

Member Data Documentation

◆ auxInfo_

◆ rep_

◆ sharedPlane_

◆ state_
