Measurement class implementing a planar hit geometry (1 or 2D). More...

#include <PlanarMeasurement.h>

Inheritance diagram for genfit::PlanarMeasurement:

[legend]

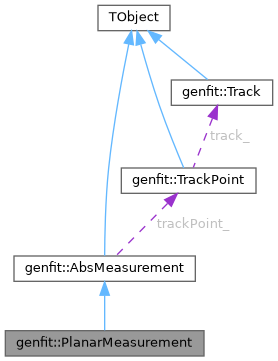

Collaboration diagram for genfit::PlanarMeasurement:

[legend]

Public Member Functions
	PlanarMeasurement (int nDim=1)

	PlanarMeasurement (const TVectorD &rawHitCoords, const TMatrixDSym &rawHitCov, int detId, int hitId, TrackPoint *trackPoint)

virtual	~PlanarMeasurement ()

virtual AbsMeasurement *	clone () const
	Deep copy ctor for polymorphic class.

int	getPlaneId () const

virtual SharedPlanePtr	constructPlane (const StateOnPlane &state) const

virtual std::vector< MeasurementOnPlane * >	constructMeasurementsOnPlane (const StateOnPlane &state) const

virtual const AbsHMatrix *	constructHMatrix (const AbsTrackRep *) const

virtual void	setPlane (const SharedPlanePtr &physicalPlane, int planeId=-1)

void	setStripV (bool v=true)
	Use if the coordinate for 1D hits measured in V direction.

Public Member Functions inherited from genfit::AbsMeasurement
	AbsMeasurement ()

	AbsMeasurement (int nDims)

	AbsMeasurement (const TVectorD &rawHitCoords, const TMatrixDSym &rawHitCov, int detId, int hitId, TrackPoint *trackPoint)

virtual	~AbsMeasurement ()

TrackPoint *	getTrackPoint () const

void	setTrackPoint (TrackPoint *tp)

const TVectorD &	getRawHitCoords () const

const TMatrixDSym &	getRawHitCov () const

int	getDetId () const

int	getHitId () const

unsigned int	getDim () const

void	setDetId (int detId)

void	setHitId (int hitId)

virtual void	Print (const Option_t *="") const

Protected Attributes
SharedPlanePtr	physicalPlane_

int	planeId_
	This is persistent, but '!' makes ROOT shut up.

bool	stripV_

Protected Attributes inherited from genfit::AbsMeasurement
TVectorD	rawHitCoords_

TMatrixDSym	rawHitCov_

int	detId_

int	hitId_

TrackPoint *	trackPoint_
	Pointer to TrackPoint where the measurement belongs to.

Additional Inherited Members
Protected Member Functions inherited from genfit::AbsMeasurement
	AbsMeasurement (const AbsMeasurement &)
	protect from calling copy c'tor from outside the class. Use clone() if you want a copy!

Detailed Description

Measurement class implementing a planar hit geometry (1 or 2D).

Author: Christian Höppner (Technische Universität München, original author); Sebastian Neubert (Technische Universität München, original author); Johannes Rauch (Technische Universität München, original author)

The main feature of this type of hit is, that the detector plane is defined by the detector hardware.

Definition at line 44 of file PlanarMeasurement.h.

Constructor & Destructor Documentation

◆ PlanarMeasurement() [1/2]

genfit::PlanarMeasurement::PlanarMeasurement ( int nDim = 1 )

Definition at line 34 of file PlanarMeasurement.cc.

  : AbsMeasurement(nDim), physicalPlane_(), planeId_(-1), stripV_(false)
{
  assert(nDim >= 1);
}

◆ PlanarMeasurement() [2/2]

genfit::PlanarMeasurement::PlanarMeasurement	(	const TVectorD &	rawHitCoords,
		const TMatrixDSym &	rawHitCov,
		int	detId,
		int	hitId,
		TrackPoint *	trackPoint
	)

Definition at line 40 of file PlanarMeasurement.cc.

  : AbsMeasurement(rawHitCoords, rawHitCov, detId, hitId, trackPoint), physicalPlane_(), planeId_(-1), stripV_(false)
{
  assert(rawHitCoords_.GetNrows() >= 1);
}

◆ ~PlanarMeasurement()

virtual genfit::PlanarMeasurement::~PlanarMeasurement ( )

inlinevirtual

Definition at line 50 of file PlanarMeasurement.h.

50{;}

Member Function Documentation

◆ clone()

virtual AbsMeasurement * genfit::PlanarMeasurement::clone ( ) const

inlinevirtual

Deep copy ctor for polymorphic class.

Implements genfit::AbsMeasurement.

Definition at line 52 of file PlanarMeasurement.h.

52{return new PlanarMeasurement(*this);}

genfit::PlanarMeasurement::PlanarMeasurement

PlanarMeasurement(int nDim=1)

Definition PlanarMeasurement.cc:34

◆ constructHMatrix()

const AbsHMatrix * genfit::PlanarMeasurement::constructHMatrix ( const AbsTrackRep * ) const

virtual

Returns a new AbsHMatrix object. Caller must take ownership.

Implements genfit::AbsMeasurement.

Definition at line 68 of file PlanarMeasurement.cc.

                                                                                  {

  if (dynamic_cast<const RKTrackRep*>(rep) == NULL) {
    Exception exc("SpacepointMeasurement default implementation can only handle state vectors of type RKTrackRep!", __LINE__,__FILE__);
    throw exc;
  }

  switch(rawHitCoords_.GetNrows()) {
  case 1:
    if (stripV_)
      return new HMatrixV();
    return new HMatrixU();

  case 2:
    return new HMatrixUV();

  default:
    Exception exc("PlanarMeasurement default implementation can only handle 1D (strip) or 2D (pixel) measurements!", __LINE__,__FILE__);
    throw exc;
  }

}

◆ constructMeasurementsOnPlane()

std::vector< MeasurementOnPlane * > genfit::PlanarMeasurement::constructMeasurementsOnPlane ( const StateOnPlane & state ) const

virtual

Construct MeasurementOnPlane on plane of the state and wrt the states TrackRep. The state will usually be the prediction or reference state, and has to be defined AT the measurement. The AbsMeasurement will be projected onto the plane. It's possible to make corrections to the coordinates here (e.g. by using the state coordinates). Usually the vector will contain only one element. But in the case of e.g. a WireMeasurement, it will be 2 (left and right).

Implements genfit::AbsMeasurement.

Definition at line 56 of file PlanarMeasurement.cc.

                                                                                                              {

  MeasurementOnPlane* mop = new MeasurementOnPlane(rawHitCoords_,
       rawHitCov_,
       state.getPlane(), state.getRep(), constructHMatrix(state.getRep()));

  std::vector<MeasurementOnPlane*> retVal;
  retVal.push_back(mop);
  return retVal;
}

◆ constructPlane()

SharedPlanePtr genfit::PlanarMeasurement::constructPlane ( const StateOnPlane & state ) const

virtual

Construct (virtual) detector plane (use state's AbsTrackRep). It's possible to make corrections to the plane here. The state should be defined somewhere near the measurement. For virtual planes, the state will be extrapolated to the POCA to point (SpacepointMeasurement) or line (WireMeasurement), and from this info the plane will be constructed.

Implements genfit::AbsMeasurement.

Definition at line 47 of file PlanarMeasurement.cc.

                                                                          {
  if (!physicalPlane_) {
    Exception exc("PlanarMeasurement::constructPlane(): No plane has been set!", __LINE__,__FILE__);
    throw exc;
  }
  return physicalPlane_;
}

◆ getPlaneId()

int genfit::PlanarMeasurement::getPlaneId ( ) const

inline

Definition at line 54 of file PlanarMeasurement.h.

54{return planeId_;}

◆ setPlane()

virtual void genfit::PlanarMeasurement::setPlane	(	const SharedPlanePtr &	physicalPlane,
		int	planeId = `-1`
	)

inlinevirtual

Definition at line 62 of file PlanarMeasurement.h.

62{physicalPlane_ = physicalPlane; planeId_ = planeId;}

◆ setStripV()

void genfit::PlanarMeasurement::setStripV ( bool v = true )

inline

Use if the coordinate for 1D hits measured in V direction.

Per default for 1D planar hits, the coordinate is measured in U direction. With this function you can set it to be measured in V direction. This affects the outcoe of constructHMatrix().

Definition at line 70 of file PlanarMeasurement.h.

70{stripV_ = v;}

conditionsDatabase.demo.drifttubeMonitoring.v

int v

Definition drifttubeMonitoring.py:1000

Member Data Documentation

◆ physicalPlane_

SharedPlanePtr genfit::PlanarMeasurement::physicalPlane_

protected

Definition at line 73 of file PlanarMeasurement.h.

◆ planeId_

int genfit::PlanarMeasurement::planeId_

protected

This is persistent, but '!' makes ROOT shut up.

Definition at line 74 of file PlanarMeasurement.h.

◆ stripV_

bool genfit::PlanarMeasurement::stripV_

protected

Definition at line 75 of file PlanarMeasurement.h.

The documentation for this class was generated from the following files:

genfit/measurements/include/PlanarMeasurement.h
genfit/measurements/src/PlanarMeasurement.cc
