genfit::AbsHMatrix Class Reference

HMatrix for projecting from AbsTrackRep parameters to measured parameters in a DetPlane. More...

#include <AbsHMatrix.h>

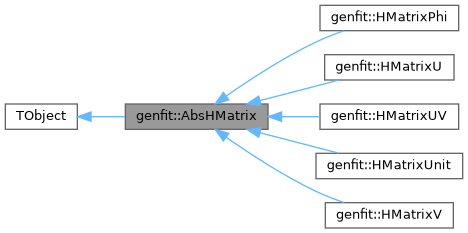

Inheritance diagram for genfit::AbsHMatrix:

Collaboration diagram for genfit::AbsHMatrix:

Public Member Functions
	AbsHMatrix ()
virtual	~AbsHMatrix ()
virtual const TMatrixD &	getMatrix () const =0
	Get the actual matrix representation.
virtual TVectorD	Hv (const TVectorD &v) const
	H*v.
virtual TMatrixD	MHt (const TMatrixDSym &M) const
	M*H^t.
virtual TMatrixD	MHt (const TMatrixD &M) const
virtual void	HMHt (TMatrixDSym &M) const
	similarity: H*M*H^t
virtual AbsHMatrix *	clone () const =0
bool	operator== (const AbsHMatrix &other) const
bool	operator!= (const AbsHMatrix &other) const
virtual bool	isEqual (const AbsHMatrix &other) const =0
virtual void	Print (const Option_t *="") const

Protected Member Functions
	AbsHMatrix (const AbsHMatrix &o)
AbsHMatrix &	operator= (const AbsHMatrix &)

Detailed Description

HMatrix for projecting from AbsTrackRep parameters to measured parameters in a DetPlane.

Definition at line 37 of file AbsHMatrix.h.

Constructor & Destructor Documentation

AbsHMatrix() [1/2]

genfit::AbsHMatrix::AbsHMatrix ( )

inline

Definition at line 41 of file AbsHMatrix.h.

{;}

~AbsHMatrix()

virtual genfit::AbsHMatrix::~AbsHMatrix ( )

inlinevirtual

Definition at line 43 of file AbsHMatrix.h.

{;}

AbsHMatrix() [2/2]

genfit::AbsHMatrix::AbsHMatrix ( const AbsHMatrix &  o )

inlineprotected

Definition at line 68 of file AbsHMatrix.h.

: TObject(o) {;}

Member Function Documentation

clone()

virtual AbsHMatrix * genfit::AbsHMatrix::clone ( ) const

pure virtual

Implemented in genfit::HMatrixPhi, genfit::HMatrixU, genfit::HMatrixUnit, genfit::HMatrixUV, and genfit::HMatrixV.

getMatrix()

virtual const TMatrixD & genfit::AbsHMatrix::getMatrix ( ) const

pure virtual

Get the actual matrix representation.

Implemented in genfit::HMatrixPhi, genfit::HMatrixU, genfit::HMatrixUnit, genfit::HMatrixUV, and genfit::HMatrixV.

HMHt()

virtual void genfit::AbsHMatrix::HMHt ( TMatrixDSym &  M ) const

inlinevirtual

similarity: H*M*H^t

Reimplemented in genfit::HMatrixUnit, genfit::HMatrixPhi, genfit::HMatrixU, genfit::HMatrixUV, and genfit::HMatrixV.

Definition at line 56 of file AbsHMatrix.h.

{M.Similarity(getMatrix());}

Hv()

virtual TVectorD genfit::AbsHMatrix::Hv ( const TVectorD &  v ) const

inlinevirtual

H*v.

Reimplemented in genfit::HMatrixPhi, genfit::HMatrixU, genfit::HMatrixUnit, genfit::HMatrixUV, and genfit::HMatrixV.

Definition at line 49 of file AbsHMatrix.h.

{return getMatrix()*v;}

isEqual()

virtual bool genfit::AbsHMatrix::isEqual ( const AbsHMatrix &  other ) const

pure virtual

Implemented in genfit::HMatrixPhi, genfit::HMatrixU, genfit::HMatrixUnit, genfit::HMatrixUV, and genfit::HMatrixV.

MHt() [1/2]

virtual TMatrixD genfit::AbsHMatrix::MHt ( const TMatrixD &  M ) const

inlinevirtual

Reimplemented in genfit::HMatrixPhi, genfit::HMatrixU, genfit::HMatrixUnit, genfit::HMatrixUV, and genfit::HMatrixV.

Definition at line 53 of file AbsHMatrix.h.

{return TMatrixD(M, TMatrixD::kMultTranspose, getMatrix());}

MHt() [2/2]

virtual TMatrixD genfit::AbsHMatrix::MHt ( const TMatrixDSym &  M ) const

inlinevirtual

M*H^t.

Reimplemented in genfit::HMatrixPhi, genfit::HMatrixU, genfit::HMatrixUnit, genfit::HMatrixUV, and genfit::HMatrixV.

Definition at line 52 of file AbsHMatrix.h.

{return TMatrixD(M, TMatrixD::kMultTranspose, getMatrix());}

operator!=()

bool genfit::AbsHMatrix::operator!= ( const AbsHMatrix &  other ) const

inline

Definition at line 61 of file AbsHMatrix.h.

{return !(this->isEqual(other));}

operator=()

AbsHMatrix & genfit::AbsHMatrix::operator= ( const AbsHMatrix &  )

protected

operator==()

bool genfit::AbsHMatrix::operator== ( const AbsHMatrix &  other ) const

inline

Definition at line 60 of file AbsHMatrix.h.

{return this->isEqual(other);}

Print()

virtual void genfit::AbsHMatrix::Print ( const Option_t *  = "" ) const

inlinevirtual

Definition at line 64 of file AbsHMatrix.h.

{;}

---

The documentation for this class was generated from the following file:

• genfit/core/include/AbsHMatrix.h
