neutrinoFilterGoldenSample.cxx File Reference

#include <iostream>
#include <vector>
#include "TObject.h"
#include "TFile.h"
#include "TTree.h"
#include "TChain.h"
#include "TClonesArray.h"
#include "TH1D.h"
#include "ShipMCTrack.h"
#include "sndBaseCut.h"
#include "sndMinSciFiHitsCut.h"
#include "sndSciFiStationCut.h"
#include "sndVetoCut.h"
#include "sndMinSciFiConsecutivePlanes.h"
#include "sndDSActivityCut.h"
#include "sndUSQDCCut.h"
#include "sndEventDeltat.h"
#include "sndAvgSciFiFiducialCut.h"
#include "sndAvgDSFiducialCut.h"
#include "sndDSVetoCut.h"

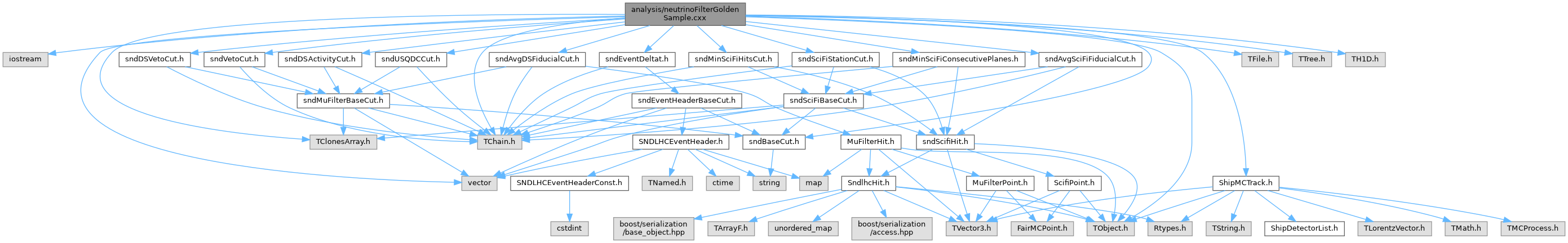

Include dependency graph for neutrinoFilterGoldenSample.cxx:

Go to the source code of this file.

Enumerations
enum	Cutset {   stage1cuts , novetocuts , FVsideband , allowWalls2and5 ,   stage1cutsVetoFirst , nueFilter }

Functions
int	main (int argc, char **argv)

Enumeration Type Documentation

Cutset

enum Cutset

Enumerator
stage1cuts
novetocuts
FVsideband
allowWalls2and5
stage1cutsVetoFirst
nueFilter

Definition at line 27 of file neutrinoFilterGoldenSample.cxx.

{ stage1cuts, novetocuts, FVsideband, allowWalls2and5, stage1cutsVetoFirst, nueFilter} ;

Function Documentation

main()

int main	(	int	argc,
		char **	argv
	)

Definition at line 29 of file neutrinoFilterGoldenSample.cxx.

                                 {

  std::cout << "Starting neutrino filter" << std::endl;

  if (argc != 4) {
    std::cout << "Two arguments required: input file name (or reg exp), output file name, cut set (0: stage 1 selection, 1: no veto or scifi 1st layer, 2: FV sideband, 3: include walls 2 and 5, 4: nue filter (no DS selection, allow walls 1 to 4." << std::endl;
    exit(-1);
  }

  // Input files
  bool isMC = false;
  TChain * ch = new TChain("rawConv");
  ch->Add(argv[1]);
  if (ch->GetEntries() == 0){
    delete ch;
    ch = new TChain("cbmsim");
    ch->Add(argv[1]);
    if (ch->GetEntries() > 0) {
      isMC = true;
      ch->SetBranchStatus("EventHeader", 0); // To be able to run on old MC.
      ch->SetBranchStatus("EventHeader.", 0); // To be able to run on old MC. Bizarre....?
    } else {
      std::cout << "Didn't find rawConv or cbmsim in input file" << std::endl;
      exit(-1);
    }
  }
  std::cout << "Got input tree" << std::endl;

  // MC truth
  TClonesArray * MCTracks = new TClonesArray("ShipMCTrack", 5000);
  if (isMC) ch->SetBranchAddress("MCTrack", &MCTracks);

  // Output file
  TFile * outFile = new TFile(argv[2], "RECREATE");
  std::cout << "Got output file" << std::endl;

  ch->GetEntry(0);
  ch->GetFile()->Get("BranchList")->Write("BranchList", TObject::kSingleKey);
  ch->GetFile()->Get("TimeBasedBranchList")->Write("TimeBasedBranchList", TObject::kSingleKey);
  if (ch->GetFile()->Get("FileHeader")) ch->GetFile()->Get("FileHeader")->Write();
  if (ch->GetFile()->Get("FileHeaderHeader")) ch->GetFile()->Get("FileHeaderHeader")->Write();

  // Set up all branches to copy to output TTree.
  TTree * outTree = ch->CloneTree(0);
  std::cout << "Got output tree" << std::endl;

  // Set up cuts
  std::cout << "Starting cut set up" << std::endl;

  std::vector< snd::analysis_cuts::baseCut * > cutFlow;

  int selected_cutset = std::atoi(argv[3]);

  if (selected_cutset == stage1cuts){ // Stage 1 cuts
    cutFlow.push_back( new snd::analysis_cuts::avgSciFiFiducialCut(200, 1200, 300, 128*12-200, ch)); // E. Average SciFi hit channel number must be within [200, 1200] (ver) and [300, max-200] (hor)
    cutFlow.push_back( new snd::analysis_cuts::avgDSFiducialCut(70, 105, 10, 50, ch)); // F. Average DS hit bar number must be within [70, 105] (ver) and [10, 50] (hor)
    cutFlow.push_back( new snd::analysis_cuts::vetoCut(ch)); // B. No veto hits
    cutFlow.push_back( new snd::analysis_cuts::sciFiStationCut(0., std::vector<int>(1, 1), ch)); // C. No hits in first SciFi plane
    cutFlow.push_back( new snd::analysis_cuts::sciFiStationCut(0., std::vector<int>(1, 2), ch)); // C. No hits in second SciFi plane
    cutFlow.push_back( new snd::analysis_cuts::sciFiStationCut(0.05, std::vector<int>(1, 5), ch)); // D. Vertex not in 5th wall
    cutFlow.push_back( new snd::analysis_cuts::minSciFiConsecutivePlanes(ch)); // G. At least two consecutive SciFi planes hit
    cutFlow.push_back( new snd::analysis_cuts::DSActivityCut(ch)); // H. If there is a downstream hit, require hits in all upstream stations.
    if (not isMC) cutFlow.push_back( new snd::analysis_cuts::eventDeltatCut(-1, 100, ch)); // J. Previous event more than 100 clock cycles away. To avoid deadtime issues.

  } else if (selected_cutset == stage1cutsVetoFirst){ // Stage 1 cuts but with Veto cut upfront. For neutral hadron background estimation
    cutFlow.push_back( new snd::analysis_cuts::vetoCut(ch)); // B. No veto hits
    cutFlow.push_back( new snd::analysis_cuts::avgSciFiFiducialCut(200, 1200, 300, 128*12-200, ch)); // E. Average SciFi hit channel number must be within [200, 1200] (ver) and [300, max-200] (hor)
    cutFlow.push_back( new snd::analysis_cuts::avgDSFiducialCut(70, 105, 10, 50, ch)); // F. Average DS hit bar number must be within [70, 105] (ver) and [10, 50] (hor)
    cutFlow.push_back( new snd::analysis_cuts::sciFiStationCut(0., std::vector<int>(1, 1), ch)); // C. No hits in first SciFi plane
    cutFlow.push_back( new snd::analysis_cuts::sciFiStationCut(0., std::vector<int>(1, 2), ch)); // C. No hits in second SciFi plane
    cutFlow.push_back( new snd::analysis_cuts::sciFiStationCut(0.05, std::vector<int>(1, 5), ch)); // D. Vertex not in 5th wall
    cutFlow.push_back( new snd::analysis_cuts::minSciFiConsecutivePlanes(ch)); // G. At least two consecutive SciFi planes hit
    cutFlow.push_back( new snd::analysis_cuts::DSActivityCut(ch)); // H. If there is a downstream hit, require hits in all upstream stations.
    if (not isMC) cutFlow.push_back( new snd::analysis_cuts::eventDeltatCut(-1, 100, ch)); // J. Previous event more than 100 clock cycles away. To avoid deadtime issues.

  } else if (selected_cutset == novetocuts) {
    cutFlow.push_back( new snd::analysis_cuts::sciFiStationCut(0.05, std::vector<int>(1, 5), ch)); // D. Vertex not in 5th wall
    cutFlow.push_back( new snd::analysis_cuts::avgSciFiFiducialCut(200, 1200, 300, 128*12-200, ch)); // E. Average SciFi hit channel number must be within [200, 1200] (ver) and [300, max-200] (hor)
    cutFlow.push_back( new snd::analysis_cuts::avgDSFiducialCut(70, 105, 10, 50, ch)); // F. Average DS hit bar number must be within [70, 105] (ver) and [10, 50] (hor)
    cutFlow.push_back( new snd::analysis_cuts::minSciFiConsecutivePlanes(ch)); // G. At least two consecutive SciFi planes hit
    cutFlow.push_back( new snd::analysis_cuts::DSActivityCut(ch)); // H. If there is a downstream hit, require hits in all upstream stations.
    if (not isMC) cutFlow.push_back( new snd::analysis_cuts::eventDeltatCut(-1, 100, ch)); // J. Previous event more than 100 clock cycles away. To avoid deadtime issues.

  } else if (selected_cutset == FVsideband){
    cutFlow.push_back( new snd::analysis_cuts::vetoCut(ch)); // B. No veto hits
    cutFlow.push_back( new snd::analysis_cuts::sciFiStationCut(0., std::vector<int>(1, 1), ch)); // C. No hits in first SciFi plane
    cutFlow.push_back( new snd::analysis_cuts::sciFiStationCut(0., std::vector<int>(1, 2), ch)); // D. Vertex not in 5th wall
    cutFlow.push_back( new snd::analysis_cuts::sciFiStationCut(0.05, std::vector<int>(1, 5), ch)); // D. Vertex not in 5th wall
    cutFlow.push_back( new snd::analysis_cuts::avgSciFiFiducialCut(200, 1200, 300, 128*12-200, ch, true)); // E. Average SciFi hit channel number must be within [200, 1200] (ver) and [300, max-200] (hor)
    cutFlow.push_back( new snd::analysis_cuts::minSciFiConsecutivePlanes(ch)); // G. At least two consecutive SciFi planes hit
    cutFlow.push_back( new snd::analysis_cuts::DSActivityCut(ch)); // H. If there is a downstream hit, require hits in all upstream stations.
    if (not isMC) cutFlow.push_back( new snd::analysis_cuts::eventDeltatCut(-1, 100, ch)); // J. Previous event more than 100 clock cycles away. To avoid deadtime issues.

  } else if (selected_cutset == allowWalls2and5) {
    cutFlow.push_back( new snd::analysis_cuts::avgSciFiFiducialCut(200, 1200, 300, 128*12-200, ch)); // E. Average SciFi hit channel number must be within [200, 1200] (ver) and [300, max-200] (hor)
    cutFlow.push_back( new snd::analysis_cuts::avgDSFiducialCut(70, 105, 10, 50, ch)); // F. Average DS hit bar number must be within [70, 105] (ver) and [10, 50] (hor)
    cutFlow.push_back( new snd::analysis_cuts::vetoCut(ch)); // B. No veto hits
    cutFlow.push_back( new snd::analysis_cuts::sciFiStationCut(0., std::vector<int>(1, 1), ch)); // C. No hits in first SciFi plane
    cutFlow.push_back( new snd::analysis_cuts::DSActivityCut(ch)); // H. If there is a downstream hit, require hits in all upstream stations.
    if (not isMC) cutFlow.push_back( new snd::analysis_cuts::eventDeltatCut(-1, 100, ch)); // J. Previous event more than 100 clock cycles away. To avoid deadtime issues.

  } else if (selected_cutset == nueFilter) {
    cutFlow.push_back( new snd::analysis_cuts::avgSciFiFiducialCut(200, 1200, 300, 128*12-200, ch)); // E. Average SciFi hit channel number must be within [200, 1200] (ver) and [300, max-200] (hor)
    cutFlow.push_back( new snd::analysis_cuts::vetoCut(ch)); // B. No veto hits
    cutFlow.push_back( new snd::analysis_cuts::sciFiStationCut(0.05, std::vector<int>(1, 5), ch)); // D. Vertex not in 5th wall
    cutFlow.push_back( new snd::analysis_cuts::DSVetoCut(ch)); // D. Veto events with hits in last DS planes
    if (not isMC) cutFlow.push_back( new snd::analysis_cuts::eventDeltatCut(-1, 100, ch)); // J. Previous event more than 100 clock cycles away. To avoid deadtime issues.
  } else {
    std::cout << "Unrecognized cutset. Exitting" << std::endl;
    exit(-1);
  }
  std::cout << "Done initializing cuts" << std::endl;

  int n_cuts = (int) cutFlow.size();

  // Book histograms
  // Cut-by-cut
  // All cut variables
  std::vector<std::vector<TH1D*> > cut_by_cut_var_histos = std::vector<std::vector<TH1D*> >();
  for (int i_cut = -1; i_cut < n_cuts; i_cut++){
    std::vector<TH1D*> this_cut_by_cut_var_histos = std::vector<TH1D*>();
    for (snd::analysis_cuts::baseCut * cut : cutFlow) {
      for(int i_dim = 0; i_dim < cut->getNbins().size(); i_dim++){
    this_cut_by_cut_var_histos.push_back(new TH1D((std::to_string(i_cut)+"_"+cut->getShortName()+"_"+std::to_string(i_dim)).c_str(),
                              cut->getShortName().c_str(),
                              cut->getNbins()[i_dim], cut->getRangeStart()[i_dim], cut->getRangeEnd()[i_dim]));
      }
    }
    cut_by_cut_var_histos.push_back(this_cut_by_cut_var_histos);
  }

  std::vector<std::vector<std::vector<TH1D*> > > cut_by_cut_truth_histos = std::vector<std::vector<std::vector<TH1D*> > >();
  if (isMC) {
    for (int i_species = 0; i_species < 5; i_species++){ // e, mu, tau, NC
      std::vector<std::vector<TH1D*> > this_species_histos = std::vector<std::vector<TH1D*> >();
      std::string species_suffix;
      switch (i_species) {
      case 0:
    species_suffix = "nueCC";
    break;
      case 1:
    species_suffix = "numuCC";
    break;
      case 2:
    species_suffix = "nutauCC";
    break;
      case 3:
    species_suffix = "NC";
    break;
      case 4:
    species_suffix = "Other"; // For PG sim
    break;
      default :
    std::cerr << "MC truth histograms initialization error! Unknown species" << std::endl;
    exit(-1);
      }

      for (int i_cut = -1; i_cut < n_cuts; i_cut++){

    std::vector<TH1D*> this_cut_by_cut_truth_histos = std::vector<TH1D*>();
    this_cut_by_cut_truth_histos.push_back(new TH1D((species_suffix+"_"+std::to_string(i_cut)+"_Enu").c_str(), "Enu", 300, 0, 3000));
    this_cut_by_cut_truth_histos.push_back(new TH1D((species_suffix+"_"+std::to_string(i_cut)+"_EEM").c_str(), "ELep", 300, 0, 3000));
    this_cut_by_cut_truth_histos.push_back(new TH1D((species_suffix+"_"+std::to_string(i_cut)+"_EHad").c_str(), "EHad", 300, 0, 3000));
    this_cut_by_cut_truth_histos.push_back(new TH1D((species_suffix+"_"+std::to_string(i_cut)+"_vtxX").c_str(), "vtxX", 200, -100, 0));
    this_cut_by_cut_truth_histos.push_back(new TH1D((species_suffix+"_"+std::to_string(i_cut)+"_vtxY").c_str(), "vtxY", 200, 0, 100));
    this_cut_by_cut_truth_histos.push_back(new TH1D((species_suffix+"_"+std::to_string(i_cut)+"_vtxZ").c_str(), "vtxZ", 200, 280, 380));

    this_species_histos.push_back(this_cut_by_cut_truth_histos);
      }
      cut_by_cut_truth_histos.push_back(this_species_histos);
    }
  }
  // N-1
  std::vector<TH1D*> n_minus_1_var_histos = std::vector<TH1D*>();
  for (snd::analysis_cuts::baseCut * cut : cutFlow) {
    for(int i_dim = 0; i_dim < cut->getNbins().size(); i_dim++){
      n_minus_1_var_histos.push_back(new TH1D(("n_minus_1_"+cut->getShortName()+"_"+std::to_string(i_dim)).c_str(),
                          cut->getShortName().c_str(),
                          cut->getNbins()[i_dim], cut->getRangeStart()[i_dim], cut->getRangeEnd()[i_dim]));
    }
  }

  std::cout << "Done initializing histograms" << std::endl;

  // Cut flow
  TH1D * cutFlowHistogram = new TH1D("cutFlow", "Cut flow;;Number of events passing cut", n_cuts+1, 0, n_cuts+1);
  for (int i = 2; i <= cutFlowHistogram->GetNbinsX(); i++){
    cutFlowHistogram->GetXaxis()->SetBinLabel(i, cutFlow.at(i-2)->getName().c_str());
  }

  std::cout << "Done initializing cut flow histogram" << std::endl;

  // Get number of entries
  unsigned long int n_entries = ch->GetEntries();

  // Holder for cut results
  std::vector<bool> passes_cut = std::vector<bool>(n_cuts, false);

  std::cout << "Starting event loop" << std::endl;
  for (unsigned long int i_entry = 0; i_entry < n_entries; i_entry++){
    ch->GetEntry(i_entry);
    if (i_entry%10000 == 0) std::cout << "Reading entry " << i_entry << std::endl;

    cutFlowHistogram->Fill(0);

    // Apply cuts
    int n_cuts_passed = 0;
    bool accept_event = true;
    int i_cut = 0;
    for (snd::analysis_cuts::baseCut * cut : cutFlow){
      if (cut->passCut()){
    if (accept_event) cutFlowHistogram->Fill(1 + i_cut);
    passes_cut[i_cut] = true;
    n_cuts_passed++;
      } else {
    accept_event = false;
    passes_cut[i_cut] = false;
      }
      i_cut++;
    }
    if (accept_event) outTree->Fill();


    // Fill histograms
    std::vector<TH1D*>::iterator hist_it;
    // Sequential
    for (int seq_cut = -1; seq_cut < ((int) passes_cut.size()); seq_cut++){
      if (seq_cut >= 0){
    if (not passes_cut[seq_cut]) break;
      }
      hist_it = cut_by_cut_var_histos[seq_cut+1].begin();
      for (snd::analysis_cuts::baseCut * cut : cutFlow) {
    for (int i_dim = 0; i_dim < cut->getPlotVar().size(); i_dim++){
      (*hist_it)->Fill(cut->getPlotVar()[i_dim]);
      hist_it++;
    }
      }
      if (isMC) {

    int this_species = -1;
    if (MCTracks->GetEntries() < 2) {
      this_species = 4;
    } else {

      int pdgIn = abs(((ShipMCTrack*)MCTracks->At(0))->GetPdgCode());
      int pdgOut = abs(((ShipMCTrack*)MCTracks->At(1))->GetPdgCode());

      if (pdgIn == (pdgOut+1)){
        //CC
        if (pdgIn == 12) this_species = 0; // nueCC
        if (pdgIn == 14) this_species = 1; // numuCC
        if (pdgIn == 16) this_species = 2; // nutauCC
      } else if (pdgIn == pdgOut) {
        //NC
        this_species = 3;
      } else {
        // Other
        this_species = 4;
      }
    }
    cut_by_cut_truth_histos[this_species][seq_cut+1][0]->Fill(((ShipMCTrack*) MCTracks->At(0))->GetEnergy()); // Enu
    if (this_species < 4) {
      cut_by_cut_truth_histos[this_species][seq_cut+1][1]->Fill(((ShipMCTrack*) MCTracks->At(1))->GetEnergy()); // ELep
      cut_by_cut_truth_histos[this_species][seq_cut+1][2]->Fill(((ShipMCTrack*) MCTracks->At(0))->GetEnergy()-((ShipMCTrack*) MCTracks->At(1))->GetEnergy()); // EHad
    }
    cut_by_cut_truth_histos[this_species][seq_cut+1][3]->Fill(((ShipMCTrack*) MCTracks->At(0))->GetStartX()); // X
    cut_by_cut_truth_histos[this_species][seq_cut+1][4]->Fill(((ShipMCTrack*) MCTracks->At(0))->GetStartY()); // Y
    cut_by_cut_truth_histos[this_species][seq_cut+1][5]->Fill(((ShipMCTrack*) MCTracks->At(0))->GetStartZ()); // Z
      }
    }

    // N-1
    int current_cut = 0;
    hist_it = n_minus_1_var_histos.begin();
    for (snd::analysis_cuts::baseCut * cut : cutFlow) {
      for (int i_dim = 0; i_dim < cut->getPlotVar().size(); i_dim++){
    if (((not passes_cut[current_cut]) and (n_cuts_passed == (cutFlow.size()-1)))
        or (n_cuts_passed == cutFlow.size()) ) (*hist_it)->Fill(cut->getPlotVar()[i_dim]);
    hist_it++;
      }
      current_cut++;
    }
  }

  outFile->Write();

  return 0;
}
