snd::analysis_cuts::vetoCut Class Reference

#include <sndVetoCut.h>

Inheritance diagram for snd::analysis_cuts::vetoCut:

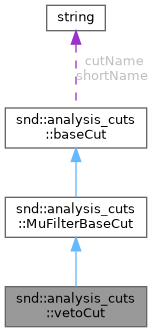

Collaboration diagram for snd::analysis_cuts::vetoCut:

Public Member Functions
	vetoCut (TChain *ch)
	~vetoCut ()
bool	passCut ()
Public Member Functions inherited from snd::analysis_cuts::baseCut
std::string	getName ()
std::string	getShortName ()
std::vector< int >	getNbins ()
std::vector< double >	getRangeStart ()
std::vector< double >	getRangeEnd ()
std::vector< double >	getPlotVar ()

Additional Inherited Members
Protected Member Functions inherited from snd::analysis_cuts::MuFilterBaseCut
	MuFilterBaseCut (TChain *ch)
	~MuFilterBaseCut ()
Protected Attributes inherited from snd::analysis_cuts::baseCut
std::string	cutName
std::string	shortName
std::vector< int >	nbins
std::vector< double >	range_start
std::vector< double >	range_end
std::vector< double >	plot_var
Static Protected Attributes inherited from snd::analysis_cuts::MuFilterBaseCut
static TClonesArray *	muFilterDigiHitCollection = 0

Detailed Description

Definition at line 10 of file sndVetoCut.h.

Constructor & Destructor Documentation

vetoCut()

snd::analysis_cuts::vetoCut::vetoCut

(

TChain *

ch

)

Definition at line 9 of file sndVetoCut.cxx.

                              : MuFilterBaseCut(ch) {
    cutName = "No hits in veto";

    shortName = "NoVetoHits";
    nbins = std::vector<int>{16};
    range_start = std::vector<double>{0};
    range_end = std::vector<double>{16};
    plot_var = std::vector<double>{-1};

  }

~vetoCut()

snd::analysis_cuts::vetoCut::~vetoCut ( )

inline

Definition at line 13 of file sndVetoCut.h.

{;}

Member Function Documentation

passCut()

bool snd::analysis_cuts::vetoCut::passCut ( )

virtual

Implements snd::analysis_cuts::baseCut.

Definition at line 20 of file sndVetoCut.cxx.

                       {
    MuFilterHit * hit;
    TIter hitIterator(muFilterDigiHitCollection);

    plot_var[0] = 0;


    while ( (hit = (MuFilterHit*) hitIterator.Next()) ){
      if (hit->GetSystem() == 1) plot_var[0] += 1;
    }

    if (plot_var[0] > 0) return false;
    return true;
  }

---

The documentation for this class was generated from the following files:

• analysis/cuts/sndVetoCut.h
• analysis/cuts/sndVetoCut.cxx
