snd::analysis_cuts::sciFiStationCut Class Reference

#include <sndSciFiStationCut.h>

Inheritance diagram for snd::analysis_cuts::sciFiStationCut:

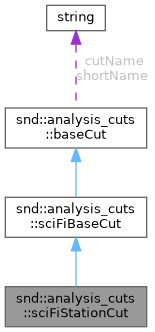

Collaboration diagram for snd::analysis_cuts::sciFiStationCut:

Public Member Functions
	sciFiStationCut (float threshold, std::vector< int > excluded_stations, TChain *ch)
	~sciFiStationCut ()
bool	passCut ()
Public Member Functions inherited from snd::analysis_cuts::baseCut
std::string	getName ()
std::string	getShortName ()
std::vector< int >	getNbins ()
std::vector< double >	getRangeStart ()
std::vector< double >	getRangeEnd ()
std::vector< double >	getPlotVar ()

Private Attributes
float	fractionThreshold
std::vector< int >	stations_to_exclude

Additional Inherited Members
Protected Member Functions inherited from snd::analysis_cuts::sciFiBaseCut
void	initializeEvent ()
	sciFiBaseCut (TChain *ch)
	~sciFiBaseCut ()
Protected Attributes inherited from snd::analysis_cuts::baseCut
std::string	cutName
std::string	shortName
std::vector< int >	nbins
std::vector< double >	range_start
std::vector< double >	range_end
std::vector< double >	plot_var
Static Protected Attributes inherited from snd::analysis_cuts::sciFiBaseCut
static TClonesArray *	scifiDigiHitCollection = 0
static std::vector< int >	hits_per_plane_vertical = std::vector<int>(5, 0)
static std::vector< int >	hits_per_plane_horizontal = std::vector<int>(5, 0)

Detailed Description

Definition at line 11 of file sndSciFiStationCut.h.

Constructor & Destructor Documentation

sciFiStationCut()

snd::analysis_cuts::sciFiStationCut::sciFiStationCut	(	float	threshold,
		std::vector< int >	excluded_stations,
		TChain *	ch
	)

Definition at line 8 of file sndSciFiStationCut.cxx.

                                                                                                 : sciFiBaseCut(ch){
    fractionThreshold = threshold;
    stations_to_exclude = std::vector(excluded_stations);
    cutName = "Exclude stations";
    for (int sta : excluded_stations){
      cutName += " "+std::to_string(sta);
    }
    cutName += ". Threshold "+std::to_string(fractionThreshold);

    shortName = "SciFiStation";
    for (int sta : excluded_stations) shortName += "_"+std::to_string(sta);

    nbins = std::vector<int>{5};
    range_start = std::vector<double>{1};
    range_end = std::vector<double>{6};
    plot_var = std::vector<double>{-1};
  }

~sciFiStationCut()

snd::analysis_cuts::sciFiStationCut::~sciFiStationCut ( )

inline

Definition at line 17 of file sndSciFiStationCut.h.

{;}

Member Function Documentation

passCut()

bool snd::analysis_cuts::sciFiStationCut::passCut ( )

virtual

Implements snd::analysis_cuts::baseCut.

Definition at line 26 of file sndSciFiStationCut.cxx.

                               {
    initializeEvent();

    int station = snd::analysis_tools::findScifiStation(hits_per_plane_horizontal, hits_per_plane_vertical, fractionThreshold);

    plot_var[0] = station;

    if (std::find(stations_to_exclude.begin(), stations_to_exclude.end(), station) == stations_to_exclude.end()){
      return true;
    } else {
      return false;
    }
  }

Member Data Documentation

fractionThreshold

float snd::analysis_cuts::sciFiStationCut::fractionThreshold

private

Definition at line 13 of file sndSciFiStationCut.h.

stations_to_exclude

std::vector<int> snd::analysis_cuts::sciFiStationCut::stations_to_exclude

private

Definition at line 14 of file sndSciFiStationCut.h.

---

The documentation for this class was generated from the following files:

• analysis/cuts/sndSciFiStationCut.h
• analysis/cuts/sndSciFiStationCut.cxx
