snd::analysis_cuts::sciFiBaseCut Class Reference

#include <sndSciFiBaseCut.h>

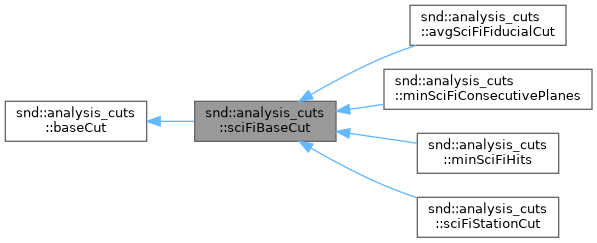

Inheritance diagram for snd::analysis_cuts::sciFiBaseCut:

Collaboration diagram for snd::analysis_cuts::sciFiBaseCut:

Protected Member Functions
void	initializeEvent ()
	sciFiBaseCut (TChain *ch)
	~sciFiBaseCut ()

Static Protected Attributes
static TClonesArray *	scifiDigiHitCollection = 0
static std::vector< int >	hits_per_plane_vertical = std::vector<int>(5, 0)
static std::vector< int >	hits_per_plane_horizontal = std::vector<int>(5, 0)

Static Private Attributes
static TChain *	tree = 0
static unsigned long int	read_entry = -1

Additional Inherited Members
Public Member Functions inherited from snd::analysis_cuts::baseCut
virtual bool	passCut ()=0
std::string	getName ()
std::string	getShortName ()
std::vector< int >	getNbins ()
std::vector< double >	getRangeStart ()
std::vector< double >	getRangeEnd ()
std::vector< double >	getPlotVar ()
Protected Attributes inherited from snd::analysis_cuts::baseCut
std::string	cutName
std::string	shortName
std::vector< int >	nbins
std::vector< double >	range_start
std::vector< double >	range_end
std::vector< double >	plot_var

Detailed Description

Definition at line 14 of file sndSciFiBaseCut.h.

Constructor & Destructor Documentation

sciFiBaseCut()

snd::analysis_cuts::sciFiBaseCut::sciFiBaseCut ( TChain *  ch )

protected

Definition at line 18 of file sndSciFiBaseCut.cxx.

                                       {
    if (tree == 0){
      tree = ch;
      scifiDigiHitCollection = new TClonesArray("sndScifiHit", 3000);
      tree->SetBranchAddress("Digi_ScifiHits", &scifiDigiHitCollection);
    }
  }

~sciFiBaseCut()

snd::analysis_cuts::sciFiBaseCut::~sciFiBaseCut ( )

inlineprotected

Definition at line 29 of file sndSciFiBaseCut.h.

{;}

Member Function Documentation

initializeEvent()

void snd::analysis_cuts::sciFiBaseCut::initializeEvent ( )

protected

Definition at line 26 of file sndSciFiBaseCut.cxx.

                                    {
    if (read_entry != tree->GetReadEntry()){
      read_entry = tree->GetReadEntry();

      // Clear hits per plane vectors
      std::fill(hits_per_plane_vertical.begin(), hits_per_plane_vertical.end(), 0);
      std::fill(hits_per_plane_horizontal.begin(), hits_per_plane_horizontal.end(), 0);

      // Add valid hits to hits per plane vectors
      sndScifiHit * hit;
      TIter hitIterator(scifiDigiHitCollection);

      while ( (hit = (sndScifiHit*) hitIterator.Next()) ){
    if (hit->isValid()){
      int sta = hit->GetStation();
      if (hit->isVertical()){
        hits_per_plane_vertical[sta-1]++;
      } else {
        hits_per_plane_horizontal[sta-1]++;
      }
    }
      }
    }
  }

Member Data Documentation

hits_per_plane_horizontal

std::vector< int > snd::analysis_cuts::sciFiBaseCut::hits_per_plane_horizontal = std::vector<int>(5, 0)

staticprotected

Definition at line 24 of file sndSciFiBaseCut.h.

hits_per_plane_vertical

std::vector< int > snd::analysis_cuts::sciFiBaseCut::hits_per_plane_vertical = std::vector<int>(5, 0)

staticprotected

Definition at line 23 of file sndSciFiBaseCut.h.

read_entry

unsigned long int snd::analysis_cuts::sciFiBaseCut::read_entry = -1

staticprivate

Definition at line 18 of file sndSciFiBaseCut.h.

scifiDigiHitCollection

TClonesArray * snd::analysis_cuts::sciFiBaseCut::scifiDigiHitCollection = 0

staticprotected

Definition at line 21 of file sndSciFiBaseCut.h.

tree

TChain * snd::analysis_cuts::sciFiBaseCut::tree = 0

staticprivate

Definition at line 17 of file sndSciFiBaseCut.h.

---

The documentation for this class was generated from the following files:

• analysis/cuts/sndSciFiBaseCut.h
• analysis/cuts/sndSciFiBaseCut.cxx
