snd::analysis_cuts::minSciFiConsecutivePlanes Class Reference

#include <sndMinSciFiConsecutivePlanes.h>

Inheritance diagram for snd::analysis_cuts::minSciFiConsecutivePlanes:

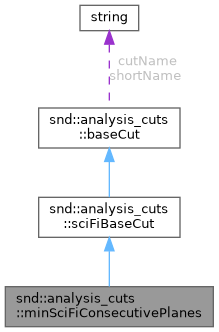

Collaboration diagram for snd::analysis_cuts::minSciFiConsecutivePlanes:

Public Member Functions
	minSciFiConsecutivePlanes (TChain *ch)
	~minSciFiConsecutivePlanes ()
bool	passCut ()
Public Member Functions inherited from snd::analysis_cuts::baseCut
std::string	getName ()
std::string	getShortName ()
std::vector< int >	getNbins ()
std::vector< double >	getRangeStart ()
std::vector< double >	getRangeEnd ()
std::vector< double >	getPlotVar ()

Additional Inherited Members
Protected Member Functions inherited from snd::analysis_cuts::sciFiBaseCut
void	initializeEvent ()
	sciFiBaseCut (TChain *ch)
	~sciFiBaseCut ()
Protected Attributes inherited from snd::analysis_cuts::baseCut
std::string	cutName
std::string	shortName
std::vector< int >	nbins
std::vector< double >	range_start
std::vector< double >	range_end
std::vector< double >	plot_var
Static Protected Attributes inherited from snd::analysis_cuts::sciFiBaseCut
static TClonesArray *	scifiDigiHitCollection = 0
static std::vector< int >	hits_per_plane_vertical = std::vector<int>(5, 0)
static std::vector< int >	hits_per_plane_horizontal = std::vector<int>(5, 0)

Detailed Description

Definition at line 10 of file sndMinSciFiConsecutivePlanes.h.

Constructor & Destructor Documentation

minSciFiConsecutivePlanes()

snd::analysis_cuts::minSciFiConsecutivePlanes::minSciFiConsecutivePlanes

(

TChain *

ch

)

Definition at line 8 of file sndMinSciFiConsecutivePlanes.cxx.

                                                                  : sciFiBaseCut(ch){
    cutName = "Two or more consecutive SciFi planes";

    shortName = "At least two consecutive SciFi planes";
    nbins = std::vector<int>{1};
    range_start = std::vector<double>{0};
    range_end = std::vector<double>{1};
    plot_var = std::vector<double>{-1};

  }

~minSciFiConsecutivePlanes()

snd::analysis_cuts::minSciFiConsecutivePlanes::~minSciFiConsecutivePlanes ( )

inline

Definition at line 13 of file sndMinSciFiConsecutivePlanes.h.

{;}

Member Function Documentation

passCut()

bool snd::analysis_cuts::minSciFiConsecutivePlanes::passCut ( )

virtual

Implements snd::analysis_cuts::baseCut.

Definition at line 19 of file sndMinSciFiConsecutivePlanes.cxx.

                                         {
    initializeEvent();

    // For a plane to count, need both planes to have hits
    for (int i = 0; i < hits_per_plane_horizontal.size() - 1; i++){
      if (hits_per_plane_horizontal[i] * hits_per_plane_vertical[i]
      *hits_per_plane_horizontal[i+1] * hits_per_plane_vertical[i+1] > 0) return true;
    }
    return false;
  }

---

The documentation for this class was generated from the following files:

• analysis/cuts/sndMinSciFiConsecutivePlanes.h
• analysis/cuts/sndMinSciFiConsecutivePlanes.cxx
