Example class for a spacepoint measurement which can be created from mySpacepointDetectorHit via the MeasurementFactory. More...

#include <mySpacepointMeasurement.h>

Inheritance diagram for genfit::mySpacepointMeasurement:

[legend]

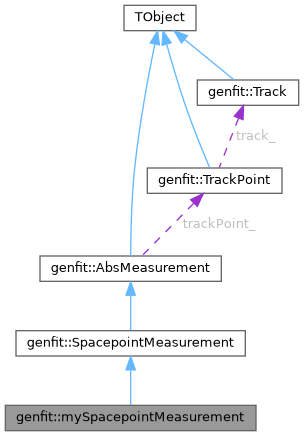

Collaboration diagram for genfit::mySpacepointMeasurement:

[legend]

Public Member Functions
	mySpacepointMeasurement ()

	mySpacepointMeasurement (const mySpacepointDetectorHit detHit, const TrackCandHit hit)

virtual AbsMeasurement *	clone () const
	Deep copy ctor for polymorphic class.

Public Member Functions inherited from genfit::SpacepointMeasurement
	SpacepointMeasurement (int nDim=3)

	SpacepointMeasurement (const TVectorD &rawHitCoords, const TMatrixDSym &rawHitCov, int detId, int hitId, TrackPoint *trackPoint, bool weightedPlaneContruction=true, bool cutCov=true)

virtual	~SpacepointMeasurement ()

virtual SharedPlanePtr	constructPlane (const StateOnPlane &state) const
	Contruct the virtual detector plane.

virtual std::vector< MeasurementOnPlane * >	constructMeasurementsOnPlane (const StateOnPlane &state) const

virtual const AbsHMatrix *	constructHMatrix (const AbsTrackRep *) const

Public Member Functions inherited from genfit::AbsMeasurement
	AbsMeasurement ()

	AbsMeasurement (int nDims)

	AbsMeasurement (const TVectorD &rawHitCoords, const TMatrixDSym &rawHitCov, int detId, int hitId, TrackPoint *trackPoint)

virtual	~AbsMeasurement ()

TrackPoint *	getTrackPoint () const

void	setTrackPoint (TrackPoint *tp)

const TVectorD &	getRawHitCoords () const

const TMatrixDSym &	getRawHitCov () const

int	getDetId () const

int	getHitId () const

unsigned int	getDim () const

void	setDetId (int detId)

void	setHitId (int hitId)

virtual void	Print (const Option_t *="") const

Additional Inherited Members
Protected Member Functions inherited from genfit::AbsMeasurement
	AbsMeasurement (const AbsMeasurement &)
	protect from calling copy c'tor from outside the class. Use clone() if you want a copy!

Protected Attributes inherited from genfit::AbsMeasurement
TVectorD	rawHitCoords_

TMatrixDSym	rawHitCov_

int	detId_

int	hitId_

TrackPoint *	trackPoint_
	Pointer to TrackPoint where the measurement belongs to.

Detailed Description

Example class for a spacepoint measurement which can be created from mySpacepointDetectorHit via the MeasurementFactory.

Author: Johannes Rauch (Technische Universität München, original author)

Definition at line 36 of file mySpacepointMeasurement.h.

Constructor & Destructor Documentation

◆ mySpacepointMeasurement() [1/2]

genfit::mySpacepointMeasurement::mySpacepointMeasurement ( )

inline

Default constructor for ROOT IO.

Definition at line 41 of file mySpacepointMeasurement.h.

41 :

42 SpacepointMeasurement() {;}

genfit::SpacepointMeasurement::SpacepointMeasurement

SpacepointMeasurement(int nDim=3)

Definition SpacepointMeasurement.cc:33

◆ mySpacepointMeasurement() [2/2]

genfit::mySpacepointMeasurement::mySpacepointMeasurement	(	const mySpacepointDetectorHit *	detHit,
		const TrackCandHit *	hit
	)

inline

Definition at line 44 of file mySpacepointMeasurement.h.

                                                                                          :
    SpacepointMeasurement()
  {
    rawHitCoords_(0) = detHit->getPos()(0);
    rawHitCoords_(1) = detHit->getPos()(1);
    rawHitCoords_(2) = detHit->getPos()(2);
    rawHitCov_ = detHit->getCov();
    detId_ = hit->getDetId();
    hitId_ = hit->getHitId();
  }
