MCEventBuilder Class Reference

#include <MCEventBuilder.h>

Inheritance diagram for MCEventBuilder:

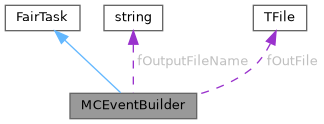

Collaboration diagram for MCEventBuilder:

Public Member Functions
	MCEventBuilder (const std::string &outputFileName, bool saveOnlyFirst25)
	~MCEventBuilder ()
virtual InitStatus	Init ()
virtual void	Exec (Option_t *opt)
virtual void	FinishTask ()

Private Member Functions
std::vector< int >	OrderedIds (const std::vector< double > &times, double firstTime) const
void	ProcessEvent ()
bool	FastNoiseFilterMu_Hits (TClonesArray *muArray)
bool	FastNoiseFilterMu_Boards (TClonesArray *muArray)
bool	FastNoiseFilterScifi_Hits (TClonesArray *scifiArray, const std::map< Int_t, std::map< Int_t, std::array< float, 2 > > > &siPMFibres)
bool	FastNoiseFilterScifi_Boards (TClonesArray *scifiArray, const std::map< Int_t, std::map< Int_t, std::array< float, 2 > > > &siPMFibres)
bool	AdvancedNoiseFilterScifi (TClonesArray *scifiArray, const std::map< Int_t, std::map< Int_t, std::array< float, 2 > > > &siPMFibres)
bool	AdvancedNoiseFilterMu (TClonesArray *muArray)

Private Attributes
bool	fSaveFirst25nsOnly
FairMCEventHeader *	fInHeader
TClonesArray *	fInMufiArray
TClonesArray *	fInSciFiArray
TClonesArray *	fInMCTrackArray
std::string	fOutputFileName
TFile *	fOutFile
TTree *	fOutTree
FairMCEventHeader *	fOutHeader
TClonesArray *	fOutMufiArray
TClonesArray *	fOutSciFiArray
TClonesArray *	fOutMCTrackArray

Detailed Description

Definition at line 19 of file MCEventBuilder.h.

Constructor & Destructor Documentation

MCEventBuilder()

MCEventBuilder::MCEventBuilder	(	const std::string &	outputFileName,
		bool	saveOnlyFirst25
	)

Definition at line 61 of file MCEventBuilder.cxx.

  : FairTask("MCEventBuilder"),
    fOutputFileName(outputFileName),
    fSaveFirst25nsOnly(saveFirst25nsOnly),
    fOutFile(nullptr),
    fOutTree(nullptr),
    fInMufiArray(nullptr),
    fInSciFiArray(nullptr),
    fInMCTrackArray(nullptr),
    fInHeader(nullptr),
    fOutMufiArray(nullptr),
    fOutSciFiArray(nullptr),
    fOutMCTrackArray(nullptr),
    fOutHeader(nullptr)
{}

~MCEventBuilder()

MCEventBuilder::~MCEventBuilder

(

)

Definition at line 78 of file MCEventBuilder.cxx.

{}

Member Function Documentation

AdvancedNoiseFilterMu()

bool MCEventBuilder::AdvancedNoiseFilterMu ( TClonesArray *  muArray )

private

Definition at line 483 of file MCEventBuilder.cxx.

                                                                {
    std::set<int> veto_planes, us_planes, ds_planes;
    for (int i = 0; i < muArray->GetEntriesFast(); ++i) {
        auto* p = static_cast<MuFilterPoint*>(muArray->At(i));
        int detID = p->GetDetectorID();
        int system = detID / 10000;
        if (system == 1) {
            veto_planes.insert(detID / 1000);
            if (veto_planes.size() >= min_veto_planes) {
                return true;
            }
        } else if (system == 2) {
            us_planes.insert(detID / 1000);
            if (us_planes.size() >= min_us_planes) {
                return true;
            }
        } else if (system == 3) {
            ds_planes.insert(detID / 1000);
            if (ds_planes.size() >= min_ds_planes) {
                return true;
            }
        }
    }
    return false;
}

AdvancedNoiseFilterScifi()

bool MCEventBuilder::AdvancedNoiseFilterScifi ( TClonesArray *  scifiArray, const std::map< Int_t, std::map< Int_t, std::array< float, 2 > > > &  siPMFibres  )

private

Definition at line 560 of file MCEventBuilder.cxx.

  {
    std::set<int> UniquePlanes;
    for (int i = 0; i < scifiArray->GetEntriesFast(); ++i) {
        auto* p = static_cast<ScifiPoint*>(scifiArray->At(i));
        int point_detID = p->GetDetectorID();
        int locFibreID = point_detID % 100000;

        for (const auto& sipmChan : siPMFibresMap.at(locFibreID)) {
            int channel = sipmChan.first;
            int detID_geo = (point_detID / 100000) * 100000 + channel;
            UniquePlanes.insert(detID_geo / 100000);

            if (UniquePlanes.size() >= min_scifi_planes) {
              return true;
            }
        }
    }
    return false;
  }

Exec()

void MCEventBuilder::Exec ( Option_t *  opt )

virtual

Definition at line 142 of file MCEventBuilder.cxx.

                                   {
  ProcessEvent();
}

FastNoiseFilterMu_Boards()

bool MCEventBuilder::FastNoiseFilterMu_Boards ( TClonesArray *  muArray )

private

Definition at line 447 of file MCEventBuilder.cxx.

                                                                   {
    //The digits used here to assign IDs to systems are set to match the DAQ board IDs from the 2022 board_mapping.json file
    std::set<int> us, ds;
    for (int i = 0; i < muArray->GetEntriesFast(); ++i) {
        auto* p = static_cast<MuFilterPoint*>(muArray->At(i));
        int detID = p->GetDetectorID();
        int system = detID / 10000;
        int TypeofPlane = (detID / 1000) % 10;
        if (system == 2) {
            if (TypeofPlane == 1 || TypeofPlane == 2) {
                us.insert(7);
            } else if (TypeofPlane == 3 || TypeofPlane == 4) {
                us.insert(60);
            } else if (TypeofPlane == 5) {
                us.insert(52);
            }
            if (us.size() >= min_us_boards) {
                return true;
            }
        } else if (system == 3) {
            if (TypeofPlane == 1) {
                ds.insert(41);
            } else if (TypeofPlane == 2) {
                ds.insert(35);
            } else if (TypeofPlane == 3 || TypeofPlane == 4) {
                ds.insert(55);
            }
            if (ds.size() >= min_ds_boards) {
                return true;
            }
        }
    }
    return false;
}

FastNoiseFilterMu_Hits()

bool MCEventBuilder::FastNoiseFilterMu_Hits ( TClonesArray *  muArray )

private

Definition at line 425 of file MCEventBuilder.cxx.

                                                                 {
    std::set<int> veto, ds;
    for (int i = 0; i < muArray->GetEntriesFast(); ++i) {
        auto* p = static_cast<MuFilterPoint*>(muArray->At(i));
        int detID = p->GetDetectorID();
        int system = detID / 10000;
        if (system == 1) {
          veto.insert(detID);
          if (veto.size() >= min_veto_hits) {
            return true;
          }
        }
        else if (system == 3) {
          ds.insert(detID);
          if (ds.size() >= min_ds_hits) {
            return true;
          }
        }
    }
    return false;
}

FastNoiseFilterScifi_Boards()

bool MCEventBuilder::FastNoiseFilterScifi_Boards ( TClonesArray *  scifiArray, const std::map< Int_t, std::map< Int_t, std::array< float, 2 > > > &  siPMFibres  )

private

Definition at line 534 of file MCEventBuilder.cxx.

  {
    //A DAQ board reads one Scifi mat and we use the first three digits of the detID_geo, representing the unique combination of StationPlaneMat, to count boards with fired channels.
    std::set<int> dividedDetIds;

    for (int i = 0; i < scifiArray->GetEntriesFast(); ++i) {
        auto* p = static_cast<ScifiPoint*>(scifiArray->At(i));
        int point_detID = p->GetDetectorID();
        int locFibreID = point_detID % 100000;

        for (const auto& sipmChan : siPMFibresMap.at(locFibreID)) {
            int channel = sipmChan.first;
            int detID_geo = (point_detID / 100000) * 100000 + channel;
            dividedDetIds.insert(detID_geo / 10000);

            if (dividedDetIds.size() >= min_scifi_boards){
                return true;
              }
        }
    }
    return false;
  }

FastNoiseFilterScifi_Hits()

bool MCEventBuilder::FastNoiseFilterScifi_Hits ( TClonesArray *  scifiArray, const std::map< Int_t, std::map< Int_t, std::array< float, 2 > > > &  siPMFibres  )

private

Definition at line 511 of file MCEventBuilder.cxx.

  {
    std::set<int> detIDs;
    for (int i = 0; i < scifiArray->GetEntriesFast(); ++i) {
        auto* p = static_cast<ScifiPoint*>(scifiArray->At(i));
        int point_detID = p->GetDetectorID();
        int locFibreID = point_detID % 100000;

        for (const auto& sipmChan : siPMFibresMap.at(locFibreID)) {
            int channel = sipmChan.first;
            int detID_geo = (point_detID / 100000) * 100000 + channel;
            detIDs.insert(detID_geo);

            if (detIDs.size() >= min_scifi_hits){
                return true;
              }
        }
    }
    return false;
  }

FinishTask()

void MCEventBuilder::FinishTask ( )

virtual

Definition at line 583 of file MCEventBuilder.cxx.

                                {
  // Make the output file structure compatible with FairTasks to facilitate
  // runing the digitization task.
  fOutFile->cd();
  TFolder* folder = new TFolder("cbmroot", "Main Folder");
  TFolder* fol_Stack = folder->AddFolder("Stack", "Stack Folder");
  auto mcTrackArr = new TClonesArray("ShipMCTrack");
  mcTrackArr->SetName("MCTrack"); // avoid default plural names
  fol_Stack->Add(mcTrackArr);
  TFolder* fol_veto = folder->AddFolder("veto", "veto Folder");
  auto vetoArr = new TClonesArray("vetoPoint");
  vetoArr->SetName("vetoPoint");
  fol_veto->Add(vetoArr);
  TFolder* fol_EmulsionDet = folder->AddFolder("EmulsionDet", "EmulsionDetector Folder");
  auto emuArr = new TClonesArray("EmulsionDetPoint");
  emuArr->SetName("EmulsionDetPoint");
  fol_EmulsionDet->Add(emuArr);
  TFolder* fol_Scifi = folder->AddFolder("Scifi", "Scifi Folder");
  auto scifiArr = new TClonesArray("ScifiPoint");
  scifiArr->SetName("ScifiPoint");
  fol_Scifi->Add(scifiArr);
  TFolder* fol_MuFilter = folder->AddFolder("MuFilter", "MuFilter Folder");
  auto mufArr = new TClonesArray("MuFilterPoint");
  mufArr->SetName("MuFilterPoint");
  fol_MuFilter->Add(mufArr);
  TFolder* fol_Event = folder->AddFolder("Event", "Event Folder");
  folder->Write();

  fOutFile->cd();
  TList* branch_list = new TList();
  branch_list->SetName("BranchList");
  branch_list->Add(new TObjString("MCTrack"));
  branch_list->Add(new TObjString("vetoPoint"));
  branch_list->Add(new TObjString("EmulsionDetPoint"));
  branch_list->Add(new TObjString("ScifiPoint"));
  branch_list->Add(new TObjString("MuFilterPoint"));
  branch_list->Add(new TObjString("MCEventHeader."));
  fOutFile->WriteObject(branch_list, "BranchList");
  auto* timebased_branch_list = new TList();
  timebased_branch_list->SetName("TimeBasedBranchList");
  fOutFile->WriteObject(timebased_branch_list, "TimeBasedBranchList");
  fOutFile->cd();
  auto* fileHeader = new FairFileHeader();
  fileHeader->SetTitle("FileHeader");
  fileHeader->Write("FileHeader");
  fOutFile->cd();
  if (fOutTree) {
     fOutTree->Write();
  }
  LOG(INFO) << "Writing and closing output file: " << fOutputFileName;
}

Init()

InitStatus MCEventBuilder::Init ( )

virtual

Definition at line 80 of file MCEventBuilder.cxx.

                                {
  LOG(INFO) << "Initializing MCEventBuilder";

  FairRootManager* ioman = FairRootManager::Instance();
  if (!ioman) {
    LOG(FATAL) << "MCEventBuilder::Init: RootManager not instantiated!";
  }

  // —---------- INPUT BRANCHES —-----------
  // Only standard ROOT way of reading branches works for the header, otherwise nullptr
  ioman->GetInTree()->SetBranchAddress("MCEventHeader.",&fInHeader);
  fInMufiArray  = static_cast<TClonesArray*>(ioman->GetObject("MuFilterPoint"));
  fInSciFiArray = static_cast<TClonesArray*>(ioman->GetObject("ScifiPoint"));
  fInMCTrackArray  = static_cast<TClonesArray*>(ioman->GetObject("MCTrack"));

  if (!fInMufiArray && !fInSciFiArray) {
    LOG(ERROR) << "No Scifi and no MuFilter MC points array!";
    return kERROR;
  }

  // —---------- OUTPUT FILE & TREE —----------
  fOutFile = new TFile(fOutputFileName.c_str(), "RECREATE");
  fOutTree = new TTree("cbmsim", "RebuiltEvents");
  fOutTree->SetTitle("/cbmroot_0");

  fOutHeader   = new FairMCEventHeader();
  fOutMufiArray  = new TClonesArray("MuFilterPoint");
  fOutSciFiArray = new TClonesArray("ScifiPoint");
  fOutMCTrackArray  = new TClonesArray("ShipMCTrack");
  fOutMufiArray->SetName("MuFilterPoint");
  fOutSciFiArray->SetName("ScifiPoint");
  fOutMCTrackArray->SetName("ShipMCTrack");

  fOutTree->Branch("MuFilterPoint",  &fOutMufiArray,  32000, 1);
  fOutTree->Branch("ScifiPoint",     &fOutSciFiArray, 32000, 1);
  fOutTree->Branch("MCTrack",        &fOutMCTrackArray,  32000, 1);
  fOutTree->Branch("MCEventHeader.", &fOutHeader);

  // --------------Global Variables--------------------
  //Muon Filter
  MuFilterDet = dynamic_cast<MuFilter*>(gROOT->GetListOfGlobals()->FindObject("MuFilter"));
  if (!MuFilterDet) {
    LOG(ERROR) << "MuFilter detector not found in gROOT";
    return kERROR;
  }
  DsPropSpeed = MuFilterDet->GetConfParF("MuFilter/DsPropSpeed");
  VandUpPropSpeed = MuFilterDet->GetConfParF("MuFilter/VandUpPropSpeed");

  //Scifi
  ScifiDet = dynamic_cast<Scifi*>(gROOT->GetListOfGlobals()->FindObject("Scifi"));
  if (!ScifiDet) {
    LOG(ERROR) << "Scifi detector not found in gROOT";
    return kERROR;
  }
  ScifisignalSpeed = ScifiDet->GetConfParF("Scifi/signalSpeed");
  ScifiDet->SiPMmapping();
  siPMFibres = ScifiDet->GetFibresMap();

  LOG(INFO) << "MCEventBuilder initialized successfully.";
  return kSUCCESS;
}

OrderedIds()

std::vector< int > MCEventBuilder::OrderedIds ( const std::vector< double > &  times, double  firstTime  ) const

private

Definition at line 146 of file MCEventBuilder.cxx.

                                                                    {
  size_t n = times.size();
  std::vector<long long> bins(n);
  for (size_t i = 0; i < n; ++i) {
        bins[i] = static_cast<long long>((times[i] - firstTime) / timeWindow);
    }

  std::vector<int> ids(n, 0);
  for (size_t i = 1; i < n; ++i) {
    if ((bins[i] - bins[i - 1]) < 1) {
        ids[i] = ids[i - 1];
    } else {
        ids[i] = ids[i - 1] + 1;
    }
  }
  return ids;
}

ProcessEvent()

void MCEventBuilder::ProcessEvent ( )

private

Definition at line 165 of file MCEventBuilder.cxx.

                                  {

  fOutHeader->SetRunID(fInHeader->GetRunID());
  fOutHeader->SetEventID(fInHeader->GetEventID());
  fOutHeader->SetVertex(fInHeader->GetX(), fInHeader->GetY(), fInHeader->GetZ());
  fOutHeader->SetTime(fInHeader->GetT());
  fOutHeader->SetB(fInHeader->GetB());
  fOutHeader->SetNPrim(fInHeader->GetNPrim());
  fOutHeader->MarkSet(fInHeader->IsSet());
  fOutHeader->SetRotX(fInHeader->GetRotX());
  fOutHeader->SetRotY(fInHeader->GetRotY());
  fOutHeader->SetRotZ(fInHeader->GetRotZ());

  //---------------------------Muon filter-------------------------------------
  std::vector<MuFilterPoint*> muFilterPoints;
  std::vector<double> muArrivalTimes;
  std::vector<int> muTrackIDs;

  for (auto* p : ROOT::RRangeCast<MuFilterPoint*, false, decltype(*fInMufiArray)>(*fInMufiArray)) {
    muFilterPoints.push_back(p);
    muTrackIDs.push_back(p->GetTrackID());

    int detID = p->GetDetectorID();

    float propspeed;
    if (floor(detID / 10000) == 3)
      propspeed = DsPropSpeed;
    else
      propspeed = VandUpPropSpeed;

    TVector3 vLeft,vRight;
    TVector3 impact(p->GetX(), p->GetY(), p->GetZ());
    MuFilterDet->GetPosition(detID, vLeft, vRight);
    TVector3 vTop = vLeft; //Used for vertical bars

    //Vertical bars with only 1 readout at the top
    if ( (floor(detID/10000)==3&&detID%1000>59) ||
          (floor(detID/10000)==1&&int(detID/1000)%10==2) )  {
      double arrivalTime = p->GetTime() + (vTop - impact).Mag() / propspeed;
      muArrivalTimes.push_back(arrivalTime);
    }
    //Horizontal
    else{
      double tLeft  = p->GetTime() + (vLeft - impact).Mag()  / propspeed;
      double tRight = p->GetTime() + (vRight - impact).Mag() / propspeed;
      double arrivalTime = std::min(tLeft, tRight);
      muArrivalTimes.push_back(arrivalTime);
    }
  }

  std::vector<size_t> idxM(muArrivalTimes.size());
  std::iota(idxM.begin(), idxM.end(), 0);
  std::sort(idxM.begin(), idxM.end(), [&](size_t a, size_t b) {
    return muArrivalTimes[a] < muArrivalTimes[b];
  });

  std::vector<MuFilterPoint*> sortedMuPoints;
  std::vector<double> sortedMuArrivalTimes;
  std::vector<int> sortedMuTrackIDs;

  sortedMuPoints.reserve(muFilterPoints.size());
  sortedMuArrivalTimes.reserve(muArrivalTimes.size());
  sortedMuTrackIDs.reserve(muTrackIDs.size());

  for (auto i : idxM) {
    sortedMuPoints.push_back(muFilterPoints[i]);
    sortedMuArrivalTimes.push_back(muArrivalTimes[i]);
    sortedMuTrackIDs.push_back(muTrackIDs[i]);
  }

  //---------------------------Scifi-------------------------------------
  std::vector<ScifiPoint*> scifiPoints;
  std::vector<double> scifiArrivalTimes;
  std::vector<int> scifiTrackIDs;

  float signalSpeed = ScifisignalSpeed;

  for (auto* p : ROOT::RRangeCast<ScifiPoint*, false, decltype(*fInSciFiArray)>(*fInSciFiArray)) {
    scifiPoints.push_back(p);
    scifiTrackIDs.push_back(p->GetTrackID());

    TVector3 impact(p->GetX(), p->GetY(), p->GetZ());
    int point_detID = p->GetDetectorID();
    int localFiberID = (point_detID)%100000;
    int a_sipmChan = static_cast<int>(siPMFibres[localFiberID].begin()->first);
    int detID_geo = int(point_detID/100000)*100000+a_sipmChan;

    TVector3 a, b;
    ScifiDet->GetSiPMPosition(detID_geo, a, b);
    bool verticalHit = int(detID_geo / 100000) % 10 == 1;
    double distance;
    if (verticalHit) {
      distance = (b - impact).Mag();
    } else {
      distance = (impact - a).Mag();
    }
    double arrivalTime = p->GetTime() + distance / signalSpeed;
    scifiArrivalTimes.push_back(arrivalTime);
  }

  std::vector<size_t> idxS(scifiArrivalTimes.size());
  std::iota(idxS.begin(), idxS.end(), 0);
  std::sort(idxS.begin(), idxS.end(), [&](size_t a, size_t b) {
    return scifiArrivalTimes[a] < scifiArrivalTimes[b];
  });

  std::vector<ScifiPoint*> sortedScifiPoints;
  std::vector<double> sortedScifiArrivalTimes;
  std::vector<int> sortedScifiTrackIDs;

  sortedScifiPoints.reserve(scifiPoints.size());
  sortedScifiArrivalTimes.reserve(scifiArrivalTimes.size());
  sortedScifiTrackIDs.reserve(scifiTrackIDs.size());

  for (auto i : idxS) {
    sortedScifiPoints.push_back(scifiPoints[i]);
    sortedScifiArrivalTimes.push_back(scifiArrivalTimes[i]);
    sortedScifiTrackIDs.push_back(scifiTrackIDs[i]);
  }

  //----------------------------------Tracks-------------------------------------
  std::vector<ShipMCTrack*> mcTrackClones;
  for (auto* t : ROOT::RRangeCast<ShipMCTrack*, false, decltype(*fInMCTrackArray)>(*fInMCTrackArray)) {
    mcTrackClones.push_back(t);
  }

  //---------Finding the earliest time between Scifi and MuFilter-----------------
  double tMufi  = sortedMuArrivalTimes.empty()  ? -1 : sortedMuArrivalTimes.front();
  double tScifi = sortedScifiArrivalTimes.empty() ? -1 : sortedScifiArrivalTimes.front();
  bool hasMCPoints   = (tMufi >= 0 || tScifi >= 0);
  double firstT = hasMCPoints ? (tMufi < 0 ? tScifi : (tScifi < 0 ? tMufi : std::min(tMufi, tScifi))): 0;

  if (!hasMCPoints) {
    fOutMufiArray->Delete();
    fOutSciFiArray->Delete();
    fOutMCTrackArray->Delete();
    fOutTree->Fill();
    return;
  }

  //------------------Preparations before chunking the data---------------------
  auto idsMufi  = OrderedIds(sortedMuArrivalTimes,  firstT);
  auto idsScifi = OrderedIds(sortedScifiArrivalTimes, firstT);

  bool FirstEvent = true;

  std::vector<int> used;
  int i_mufi = 0, i_scifi = 0, sliceMufi = 0, sliceScifi = 0;

  while (i_mufi < (int)sortedMuArrivalTimes.size() || i_scifi < (int)sortedScifiArrivalTimes.size()) {
    // To avoid re-copy of points or tracks from chunk N to following chunks, one needs to free the memory
    // e.g. chunk N has points with track ids(indices) T-10, T-5, T, chunk N+1 holds points with track id T+1.
    // If memory is not de-allocated, all tracks of smaller index than T+1 will be also written to chunk N+1.
    // This will be incorrect since there are no points of tracks with id < T in the N+1 chunck.
    fOutMufiArray->Delete();
    fOutSciFiArray->Delete();
    fOutMCTrackArray->Delete();

    std::vector<MuFilterPoint*> muSlicePoints;
    std::vector<ScifiPoint*> scifiSlicePoints;
    fOutMCTrackArray->ExpandCreate(mcTrackClones.size());

    //Adding the mother track to the first event
    if (sliceMufi==0 && sliceScifi==0){
      ShipMCTrack* newTrack = new ((*fOutMCTrackArray)[0]) ShipMCTrack(*mcTrackClones[0]);
      // In NC neutrino events, the outgoing neutrino is also saved in the first chunk,
      // otherwise it will be lost. This is to facilitate NC event tagging in analysis.
      if (mcTrackClones.size()>1 && std::set({12,14,16}).count(fabs(mcTrackClones[1]->GetPdgCode()))){
        ShipMCTrack* newTrack = new ((*fOutMCTrackArray)[1]) ShipMCTrack(*mcTrackClones[1]);
      }
    }

    //MUON FILTER POINTS CHUNKING
    while (i_mufi < (int)sortedMuArrivalTimes.size() && idsMufi[i_mufi] == sliceMufi) {
      MuFilterPoint* origMu = sortedMuPoints[i_mufi];
      muSlicePoints.push_back(origMu);
      Int_t trackID   = origMu->GetTrackID();
      Int_t detID     = origMu->GetDetectorID();
      TVector3 pos;    origMu->Position(pos);
      TVector3 mom;    origMu->Momentum(mom);
      Double_t time   = origMu->GetTime();
      Double_t length = origMu->GetLength();
      Double_t eLoss  = origMu->GetEnergyLoss();
      Int_t pdgCode   = origMu->PdgCode();

      new ((*fOutMufiArray)[fOutMufiArray->GetEntriesFast()])
        MuFilterPoint(trackID, detID, pos, mom, time, length, eLoss, pdgCode);

      int tid = sortedMuTrackIDs[i_mufi++];
      //MC tracks having ID=-2 are below the pre-set energy threshold (default is 100MeV) and cannot be linked to their corresponding MC point. Such tracks are not saved to the chunked events.
      if (tid != -2) {
        ShipMCTrack* newTrack = new ((*fOutMCTrackArray)[tid]) ShipMCTrack(*mcTrackClones[tid]);
      }
    }
    ++sliceMufi;

    //SCIFI POINTS CHUNKING
    while (i_scifi < (int)sortedScifiArrivalTimes.size() && idsScifi[i_scifi] == sliceScifi) {
      ScifiPoint* origSci = sortedScifiPoints[i_scifi];
      scifiSlicePoints.push_back(origSci);
      Int_t trackID   = origSci->GetTrackID();
      Int_t detID     = origSci->GetDetectorID();
      TVector3 pos;    origSci->Position(pos);
      TVector3 mom;    origSci->Momentum(mom);
      Double_t time   = origSci->GetTime();
      Double_t length = origSci->GetLength();
      Double_t eLoss  = origSci->GetEnergyLoss();
      Int_t pdgCode   = origSci->PdgCode();

      new ((*fOutSciFiArray)[fOutSciFiArray->GetEntriesFast()])
        ScifiPoint(trackID, detID, pos, mom, time, length, eLoss, pdgCode);

      int tid = sortedScifiTrackIDs[i_scifi++];
      //MC tracks having ID=-2 are below the pre-set energy threshold (default is 100MeV) and cannot be linked to their corresponding MC point. Such tracks are not saved to the chunked events.
      if (tid != -2) {
        ShipMCTrack* newTrack = new ((*fOutMCTrackArray)[tid]) ShipMCTrack(*mcTrackClones[tid]);
      }
    }
    ++sliceScifi;

    //Noise Filters
    if (!(FastNoiseFilterScifi_Hits(fOutSciFiArray, siPMFibres) || FastNoiseFilterMu_Hits(fOutMufiArray))) {
      fOutMufiArray->Delete();
      fOutSciFiArray->Delete();
      fOutMCTrackArray->Delete();
      FirstEvent = false;
      continue;
    }
    else if(!(FastNoiseFilterScifi_Boards(fOutSciFiArray, siPMFibres) || FastNoiseFilterMu_Boards(fOutMufiArray))){
      fOutMufiArray->Delete();
      fOutSciFiArray->Delete();
      fOutMCTrackArray->Delete();
      FirstEvent = false;
      continue;
    }

    if (!(AdvancedNoiseFilterScifi(fOutSciFiArray, siPMFibres) || AdvancedNoiseFilterMu(fOutMufiArray))){
      fOutMufiArray->Delete();
      fOutSciFiArray->Delete();
      fOutMCTrackArray->Delete();
      FirstEvent = false;
      continue;
    }

    //--------Save only first 25ns chunks mode-------
    if (fSaveFirst25nsOnly) {
      if (FirstEvent) {
        fOutTree->Fill();
        FirstEvent = false;
    break;
      }
    }
    //-----Save all chunks mode-------
    else {
      fOutTree->Fill();
    }
  }
}

Member Data Documentation

fInHeader

FairMCEventHeader* MCEventBuilder::fInHeader

private

Definition at line 55 of file MCEventBuilder.h.

fInMCTrackArray

TClonesArray* MCEventBuilder::fInMCTrackArray

private

Definition at line 58 of file MCEventBuilder.h.

fInMufiArray

TClonesArray* MCEventBuilder::fInMufiArray

private

Definition at line 56 of file MCEventBuilder.h.

fInSciFiArray

TClonesArray* MCEventBuilder::fInSciFiArray

private

Definition at line 57 of file MCEventBuilder.h.

fOutFile

TFile* MCEventBuilder::fOutFile

private

Definition at line 62 of file MCEventBuilder.h.

fOutHeader

FairMCEventHeader* MCEventBuilder::fOutHeader

private

Definition at line 64 of file MCEventBuilder.h.

fOutMCTrackArray

TClonesArray* MCEventBuilder::fOutMCTrackArray

private

Definition at line 67 of file MCEventBuilder.h.

fOutMufiArray

TClonesArray* MCEventBuilder::fOutMufiArray

private

Definition at line 65 of file MCEventBuilder.h.

fOutputFileName

std::string MCEventBuilder::fOutputFileName

private

Definition at line 61 of file MCEventBuilder.h.

fOutSciFiArray

TClonesArray* MCEventBuilder::fOutSciFiArray

private

Definition at line 66 of file MCEventBuilder.h.

fOutTree

TTree* MCEventBuilder::fOutTree

private

Definition at line 63 of file MCEventBuilder.h.

fSaveFirst25nsOnly

bool MCEventBuilder::fSaveFirst25nsOnly

private

Definition at line 54 of file MCEventBuilder.h.

---

The documentation for this class was generated from the following files:

• sndFairTasks/MCEventBuilder.h
• sndFairTasks/MCEventBuilder.cxx
