MuFilter Class Reference

#include <MuFilter.h>

Inheritance diagram for MuFilter:
Inheritance graph
[legend]

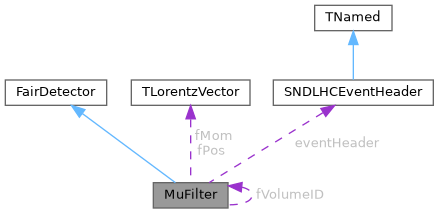

Collaboration diagram for MuFilter:
Collaboration graph
[legend]

Public Member Functions

 MuFilter (const char *name, Bool_t Active, const char *Title="MuonFilter")

 MuFilter ()

virtual ~MuFilter ()

void ConstructGeometry ()

void GetPosition (Int_t id, TVector3 &vLeft, TVector3 &vRight)

void GetLocalPosition (Int_t id, TVector3 &vLeft, TVector3 &vRight)

Float_t GetCorrectedTime (Int_t id, Int_t c, Double_t t, Double_t L)

Int_t GetnSiPMs (Int_t detID)

Int_t GetnSides (Int_t detID)

void InitEvent (SNDLHCEventHeader *e)

void SetConfPar (TString name, Float_t value)

void SetConfPar (TString name, Int_t value)

void SetConfPar (TString name, TString value)

Float_t GetConfParF (TString name)

Int_t GetConfParI (TString name)

TString GetConfParS (TString name)

virtual void Initialize ()

virtual Bool_t ProcessHits (FairVolume *v=0)

virtual void Register ()

virtual TClonesArray * GetCollection (Int_t iColl) const

virtual void Reset ()

MuFilterPoint * AddHit (Int_t trackID, Int_t detID, TVector3 pos, TVector3 mom, Double_t time, Double_t length, Double_t eLoss, Int_t pdgCode)

virtual void CopyClones (TClonesArray *cl1, TClonesArray *cl2, Int_t offset)

virtual void SetSpecialPhysicsCuts ()

virtual void EndOfEvent ()

virtual void FinishPrimary ()

virtual void FinishRun ()

virtual void BeginPrimary ()

virtual void PostTrack ()

virtual void PreTrack ()

virtual void BeginEvent ()

 MuFilter (const MuFilter &)

MuFilter & operator= (const MuFilter &)


Public Attributes

ClassDef(MuFilter, 4) private Int_t fVolumeID
 track index

TLorentzVector fPos
 volume id

TLorentzVector fMom
 position at entrance

Double32_t fTime
 momentum at entrance

Double32_t fLength
 time

Double32_t fELoss
 length

TClonesArray * fMuFilterPointCollection
 energy loss

std::map< TString, Float_t > conf_floats

std::map< TString, Int_t > conf_ints

std::map< TString, TString > conf_strings

SNDLHCEventHeader * eventHeader

std::vector< int > covered_runs_time_alignment

TString last_time_alignment_tag

int last_run_time

int last_run_pos

bool alignment_init


Protected Member Functions

Int_t InitMedium (const char *name)


Detailed Description

Definition at line 25 of file MuFilter.h.

Constructor & Destructor Documentation

◆ MuFilter() [1/3]

MuFilter::MuFilter ( const char *  name,
Bool_t  Active,
const char *  Title = "MuonFilter"
)

Definition at line 72 of file MuFilter.cxx.

73: FairDetector(name, true, kMuFilter),
74 fTrackID(-1),
75fVolumeID(-1),
76fPos(),
77fMom(),
78fTime(-1.),
79fLength(-1.),
80fELoss(-1),
81eventHeader(0),
82last_run_time(-1),
83last_run_pos(-1),
84last_time_alignment_tag(""),
85alignment_init(false),
86fMuFilterPointCollection(new TClonesArray("MuFilterPoint"))
87{
88}
kMuFilter
@ kMuFilter
Definition ShipDetectorList.h:12
MuFilter::alignment_init
bool alignment_init
Definition MuFilter.h:110
MuFilter::fVolumeID
ClassDef(MuFilter, 4) private Int_t fVolumeID
track index
Definition MuFilter.h:84
MuFilter::fLength
Double32_t fLength
time
Definition MuFilter.h:94
MuFilter::last_time_alignment_tag
TString last_time_alignment_tag
Definition MuFilter.h:108
MuFilter::fMom
TLorentzVector fMom
position at entrance
Definition MuFilter.h:92
MuFilter::fPos
TLorentzVector fPos
volume id
Definition MuFilter.h:91
MuFilter::eventHeader
SNDLHCEventHeader * eventHeader
Definition MuFilter.h:104
MuFilter::fELoss
Double32_t fELoss
length
Definition MuFilter.h:95
MuFilter::fTime
Double32_t fTime
momentum at entrance
Definition MuFilter.h:93
MuFilter::fMuFilterPointCollection
TClonesArray * fMuFilterPointCollection
energy loss
Definition MuFilter.h:98
MuFilter::last_run_pos
int last_run_pos
Definition MuFilter.h:109
MuFilter::last_run_time
int last_run_time
Definition MuFilter.h:109

◆ MuFilter() [2/3]

MuFilter::MuFilter ( )

Definition at line 54 of file MuFilter.cxx.

55: FairDetector("MuonFilter", "",kTRUE),
56 fTrackID(-1),
57fVolumeID(-1),
58fPos(),
59fMom(),
60fTime(-1.),
61fLength(-1.),
62fELoss(-1),
63eventHeader(0),
64last_run_time(-1),
65last_run_pos(-1),
66last_time_alignment_tag(""),
67alignment_init(false),
68fMuFilterPointCollection(new TClonesArray("MuFilterPoint"))
69{
70}

◆ ~MuFilter()

MuFilter::~MuFilter ( )
virtual

Definition at line 90 of file MuFilter.cxx.

91{
92 if (fMuFilterPointCollection) {
93 fMuFilterPointCollection->Delete();
94 delete fMuFilterPointCollection;
95 }
96}

◆ MuFilter() [3/3]

MuFilter::MuFilter ( const MuFilter &  )

Member Function Documentation

◆ AddHit()

MuFilterPoint * MuFilter::AddHit ( Int_t  trackID,
Int_t  detID,
TVector3  pos,
TVector3  mom,
Double_t  time,
Double_t  length,
Double_t  eLoss,
Int_t  pdgCode
)

How to add your own point of type EmulsionDetPoint to the clones array

Definition at line 552 of file MuFilter.cxx.

556{
557 TClonesArray& clref = *fMuFilterPointCollection;
558 Int_t size = clref.GetEntriesFast();
559 return new(clref[size]) MuFilterPoint(trackID,detID, pos, mom,
560 time, length, eLoss, pdgCode);
561}

◆ BeginEvent()

virtual void MuFilter::BeginEvent ( )
inlinevirtual

Definition at line 79 of file MuFilter.h.

79{;}

◆ BeginPrimary()

virtual void MuFilter::BeginPrimary ( )
inlinevirtual

Definition at line 76 of file MuFilter.h.

76{;}

◆ ConstructGeometry()

void MuFilter::ConstructGeometry ( )

Create the detector geometry

Definition at line 124 of file MuFilter.cxx.

125{
126 TGeoVolume *top=gGeoManager->FindVolumeFast("Detector");
127 if(!top) LOG(ERROR) << "no Detector volume found " ;
128
129 //Materials
130
131 InitMedium("iron");
132 TGeoMedium *Fe =gGeoManager->GetMedium("iron");
133 InitMedium("aluminium");
134 TGeoMedium *Al =gGeoManager->GetMedium("aluminium");
135 InitMedium("polyvinyltoluene");
136 TGeoMedium *Scint =gGeoManager->GetMedium("polyvinyltoluene");
137 InitMedium("Concrete");
138 TGeoMedium *concrete = gGeoManager->GetMedium("Concrete");
139
140 Float_t nSiPMs[3]; // number of SiPMs per side
141 Float_t nSides[3]; // number of sides readout
142 nSiPMs[0] = conf_ints["MuFilter/VetonSiPMs"];
143 nSiPMs[1] = conf_ints["MuFilter/UpstreamnSiPMs"];
144 nSiPMs[2] = conf_ints["MuFilter/DownstreamnSiPMs"];
145 nSides[0] = conf_ints["MuFilter/VetonSides"];
146 nSides[1] = conf_ints["MuFilter/DownstreamnSides"];
147 nSides[2] = conf_ints["MuFilter/UpstreamnSides"];
148
149 Int_t fNUpstreamPlanes = conf_ints["MuFilter/NUpstreamPlanes"]; // Number of planes
150 Int_t fNUpstreamBars = conf_ints["MuFilter/NUpstreamBars"]; // Number of staggered bars
151 Int_t fNDownstreamPlanes = conf_ints["MuFilter/NDownstreamPlanes"]; // Number of planes
152 Int_t fNDownstreamBars = conf_ints["MuFilter/NDownstreamBars"]; // Number of staggered bars
153 Double_t fDownstreamBarX_ver = conf_floats["MuFilter/DownstreamBarX_ver"]; // Staggered bars of upstream section, vertical bars for x measurement
154 Double_t fDownstreamBarY_ver = conf_floats["MuFilter/DownstreamBarY_ver"];
155 Double_t fDownstreamBarZ_ver = conf_floats["MuFilter/DownstreamBarZ_ver"];
156 Double_t fDS4ZGap = conf_floats["MuFilter/DS4ZGap"];
157
158 // position of left bottom edges in survey coordinate system converted to physicist friendly coordinate system

159 std::map<int, TVector3 > edge_Veto;
160 edge_Veto[1] = TVector3( -conf_floats["MuFilter/Veto1Dx"],conf_floats["MuFilter/Veto1Dz"],conf_floats["MuFilter/Veto1Dy"]);
161 edge_Veto[2] = TVector3( -conf_floats["MuFilter/Veto2Dx"],conf_floats["MuFilter/Veto2Dz"],conf_floats["MuFilter/Veto2Dy"]);
162 edge_Veto[3] = TVector3( -conf_floats["MuFilter/Veto3Dx"],conf_floats["MuFilter/Veto3Dz"],conf_floats["MuFilter/Veto3Dy"]);
163 std::map<int, TVector3 > edge_Iron;
164 std::map<int, TVector3 > edge_MuFilter;
165 for (int i=1;i<10;i++){
166 string si = to_string(i);
167 edge_Iron[i] = TVector3( -conf_floats["MuFilter/Iron"+si+"Dx"],conf_floats["MuFilter/Iron"+si+"Dz"],conf_floats["MuFilter/Iron"+si+"Dy"]);
168 edge_MuFilter[i] = TVector3( -conf_floats["MuFilter/Muon"+si+"Dx"],conf_floats["MuFilter/Muon"+si+"Dz"],conf_floats["MuFilter/Muon"+si+"Dy"]);
169 }
170 // system alignment parameters
171 Double_t fVetoShiftX = conf_floats["MuFilter/VetoShiftX"];
172 Double_t fVetoShiftY = conf_floats["MuFilter/VetoShiftY"];
173 Double_t fVetoShiftZ = conf_floats["MuFilter/VetoShiftZ"];
174 Double_t fShiftX = conf_floats["MuFilter/ShiftX"];
175 Double_t fShiftY = conf_floats["MuFilter/ShiftY"];
176 Double_t fShiftZ = conf_floats["MuFilter/ShiftZ"];
177
178 TVector3 displacement;
179
180 //Definition of the box containing veto planes
181 TGeoVolumeAssembly *volVeto = new TGeoVolumeAssembly("volVeto");
182
183 //Veto Planes
184 Double_t fVetoBarX = conf_floats["MuFilter/VetoBarX"]; // Veto Bar dimensions
185 Double_t fVetoBarY = conf_floats["MuFilter/VetoBarY"];
186 Double_t fVetoBarZ = conf_floats["MuFilter/VetoBarZ"];
187 Double_t fVeto3BarX = conf_floats["MuFilter/Veto3BarX"]; // 3rd Veto plane Bar dimensions
188 Double_t fVeto3BarY = conf_floats["MuFilter/Veto3BarY"];
189 Double_t fVeto3BarZ = conf_floats["MuFilter/Veto3BarZ"];
190 Double_t fVetoBarGap = conf_floats["MuFilter/VetoBarGap"];
191 Int_t fNVetoPlanes = conf_ints["MuFilter/NVetoPlanes"];
192 Int_t fNVetoBars = conf_ints["MuFilter/NVetoBars"];
193 Double_t fSupportBoxVW = conf_floats["MuFilter/SupportBoxVW"]; // SupportBox dimensions
194 // thickness of bottom part of Veto 3 SupportBox
195 Double_t fSupportBoxVB3 = conf_floats["MuFilter/SupportBoxVB3"];
196 // local position of bottom horizontal bar to survey edge
197 TVector3 LocBarVeto = TVector3(-conf_floats["MuFilter/VETOLocX"], conf_floats["MuFilter/VETOLocZ"],conf_floats["MuFilter/VETOLocY"]);
198 TVector3 LocBarVeto_v = TVector3(-conf_floats["MuFilter/VETOLocX3"], conf_floats["MuFilter/VETOLocZ3"],conf_floats["MuFilter/VETOLocY3"]);
199
200 TVector3 VetoBox1 = TVector3(-conf_floats["MuFilter/VETOBoxX1"],conf_floats["MuFilter/VETOBoxZ1"],conf_floats["MuFilter/VETOBoxY1"]); // bottom front left
201 TVector3 VetoBox2 = TVector3(-conf_floats["MuFilter/VETOBoxX2"],conf_floats["MuFilter/VETOBoxZ2"],conf_floats["MuFilter/VETOBoxY2"]); // top back right
202 TVector3 VetoBoxDim = TVector3( VetoBox1.X()-VetoBox2.X(), VetoBox2.Y()-VetoBox1.Y(), VetoBox2.Z()-VetoBox1.Z() ) ;
203 // support box
204 TGeoBBox *supVetoBoxInner = new TGeoBBox("supVetoBoxI",VetoBoxDim.X()/2,VetoBoxDim.Y()/2,VetoBoxDim.Z()/2);
205 TGeoBBox *supVetoBoxOuter = new TGeoBBox("supVetoBoxO",VetoBoxDim.X()/2+fSupportBoxVW,VetoBoxDim.Y()/2+fSupportBoxVW,VetoBoxDim.Z()/2+fSupportBoxVW);
206 TGeoCompositeShape *subVetoBoxShape = new TGeoCompositeShape("subVetoBoxShape", "supVetoBoxO-supVetoBoxI");
207 TGeoVolume *subVetoBox = new TGeoVolume("subVetoBox", subVetoBoxShape, Al);
208 subVetoBox->SetLineColor(kGray+1);
209
210 // support box for the 3rd veto plane
211 TVector3 VetoBox3 = TVector3(-conf_floats["MuFilter/VETOBoxX3"],conf_floats["MuFilter/VETOBoxZ3"],conf_floats["MuFilter/VETOBoxY3"]); // bottom front left
212 TVector3 VetoBox4 = TVector3(-conf_floats["MuFilter/VETOBoxX4"],conf_floats["MuFilter/VETOBoxZ4"],conf_floats["MuFilter/VETOBoxY4"]); // top back right
213 TVector3 Veto3BoxDim = TVector3( VetoBox3.X()-VetoBox4.X(), VetoBox4.Y()-VetoBox3.Y(), VetoBox4.Z()-VetoBox3.Z() ) ;
214 // support box
215 TGeoBBox *supVeto3BoxInner = new TGeoBBox("supVeto3BoxI",Veto3BoxDim.X()/2,Veto3BoxDim.Y()/2,Veto3BoxDim.Z()/2);
216 TGeoBBox *supVeto3BoxOuter = new TGeoBBox("supVeto3BoxO",Veto3BoxDim.X()/2+fSupportBoxVW,Veto3BoxDim.Y()/2+fSupportBoxVB3,Veto3BoxDim.Z()/2+fSupportBoxVW);
217 TGeoCompositeShape *subVeto3BoxShape = new TGeoCompositeShape("subVeto3BoxShape", "supVeto3BoxO-supVeto3BoxI");
218 TGeoVolume *subVeto3Box = new TGeoVolume("subVeto3Box", subVeto3BoxShape, Al);
219 subVeto3Box->SetLineColor(kGray+1);
220
221 //Veto bars
222 TGeoVolume *volVetoBar = gGeoManager->MakeBox("volVetoBar",Scint,fVetoBarX/2., fVetoBarY/2., fVetoBarZ/2.);
223 // 3rd plane
224 TGeoVolume *volVetoBar_ver = gGeoManager->MakeBox("volVetoBar_ver",Scint,fVeto3BarX/2., fVeto3BarY/2., fVeto3BarZ/2.);
225
226 volVetoBar->SetLineColor(kRed-3);
227 AddSensitiveVolume(volVetoBar);
228
229 volVetoBar_ver->SetLineColor(kRed-3);
230 AddSensitiveVolume(volVetoBar_ver);
231
232 //adding veto planes
233 TGeoVolume* volVetoPlane;
234 for (int iplane=0; iplane < fNVetoPlanes; iplane++){
235
236 string name = "volVetoPlane_"+to_string(iplane);
237 volVetoPlane = new TGeoVolumeAssembly(name.c_str());
238
239 if (iplane < 2){
240 displacement = edge_Veto[iplane+1] + LocBarVeto + TVector3(-fVetoBarX/2, 0, 0);
241 volVeto->AddNode(volVetoPlane,iplane,
242 new TGeoTranslation(displacement.X(),displacement.Y(),displacement.Z()));
243 // VETOBox1 = bottom front left
244 displacement = edge_Veto[iplane+1] + VetoBox1 + TVector3(-VetoBoxDim.X()/2,VetoBoxDim.Y()/2,VetoBoxDim.Z()/2);
245 volVeto->AddNode(subVetoBox,iplane,
246 new TGeoTranslation(displacement.X(),displacement.Y(),displacement.Z()));
247
248 displacement = TVector3(0, 0, 0);
249 for (Int_t ibar = 0; ibar < fNVetoBars; ibar++){
250 Double_t dy_bar = (fVetoBarY + fVetoBarGap)*ibar;
251 volVetoPlane->AddNode(volVetoBar, 1e+4+iplane*1e+3+ibar,
252 new TGeoTranslation(displacement.X(),displacement.Y()+dy_bar,displacement.Z()));
253 }
254 } // Veto planes 1 & 2
255 else {
256 displacement = edge_Veto[iplane+1] + LocBarVeto_v + TVector3(-fVeto3BarX/2, fVeto3BarY/2, 0);
257 volVeto->AddNode(volVetoPlane,iplane,
258 new TGeoTranslation(displacement.X(),displacement.Y(),displacement.Z()));
259 // VETOBox3 = bottom front left
260 displacement = edge_Veto[iplane+1] + VetoBox3 + TVector3(-fVeto3BarX/2, 0, 0) + TVector3(-Veto3BoxDim.X()/2,Veto3BoxDim.Y()/2,Veto3BoxDim.Z()/2);
261 volVeto->AddNode(subVeto3Box,iplane,
262 new TGeoTranslation(displacement.X(),displacement.Y(),displacement.Z()));
263
264 displacement = TVector3(0, 0, 0);
265 for (Int_t ibar = 0; ibar < fNVetoBars; ibar++){
266 Double_t dx_bar = (fVeto3BarX + fVetoBarGap)*ibar;
267 volVetoPlane->AddNode(volVetoBar_ver, 1e+4+iplane*1e+3+ibar,
268 new TGeoTranslation(displacement.X()-dx_bar,displacement.Y(),displacement.Z())); // detID of type 12xxx
269 }
270 }// Veto plane 3
271 }
272
273 //adding to detector volume
274 top->AddNode(volVeto, 1,new TGeoTranslation(fVetoShiftX,fVetoShiftY,fVetoShiftZ)) ;
275
276 //*****************************************UPSTREAM SECTION*********************************//
277
278 //Definition of the box containing Fe Blocks + Timing Detector planes
279 TGeoVolumeAssembly *volMuFilter = new TGeoVolumeAssembly("volMuFilter");
280
281 //Iron blocks volume definition
282 Double_t fFeBlockX = conf_floats["MuFilter/FeX"]; // Passive Iron blocks dimensions
283 Double_t fFeBlockY = conf_floats["MuFilter/FeY"];
284 Double_t fFeBlockZ = conf_floats["MuFilter/FeZ"];
285 Double_t fFeBlockEndX = conf_floats["MuFilter/FeEndX"]; // last Iron block dimensions
286 Double_t fFeBlockEndY = conf_floats["MuFilter/FeEndY"];
287 Double_t fFeBlockEndZ = conf_floats["MuFilter/FeEndZ"];
288 Double_t fFeBlockBotX = conf_floats["MuFilter/FeBotX"]; // bottom Iron block dimensions
289 Double_t fFeBlockBotY = conf_floats["MuFilter/FeBotY"];
290 Double_t fFeBlockBotZ = conf_floats["MuFilter/FeBotZ"];
291 Double_t fSupportBoxW = conf_floats["MuFilter/SupportBoxW"]; // SupportBox dimensions
292
293 TVector3 DSBox1 = TVector3(-conf_floats["MuFilter/DSBoxX1"],conf_floats["MuFilter/DSBoxZ1"],conf_floats["MuFilter/DSBoxY1"]); // bottom front left
294 TVector3 DSBox2 = TVector3(-conf_floats["MuFilter/DSBoxX2"],conf_floats["MuFilter/DSBoxZ2"],conf_floats["MuFilter/DSBoxY2"]); // top back right
295 TVector3 DSBoxDim = TVector3( DSBox1.X()-DSBox2.X(), DSBox2.Y()-DSBox1.Y(), DSBox2.Z()-DSBox1.Z() ) ;
296 TVector3 USBox1 = TVector3(-conf_floats["MuFilter/DSBoxX1"],conf_floats["MuFilter/DSBoxZ1"],conf_floats["MuFilter/USBoxY1"]); // bottom front left
297 TVector3 USBox2 = TVector3(-conf_floats["MuFilter/DSBoxX2"],conf_floats["MuFilter/DSBoxZ2"],conf_floats["MuFilter/USBoxY2"]); // top back right
298 TVector3 USBoxDim = TVector3( USBox1.X()-USBox2.X(), USBox2.Y()-USBox1.Y(), USBox2.Z()-USBox1.Z() ) ;
299
300 //Iron blocks volume definition
301 TGeoVolume *volFeBlock = gGeoManager->MakeBox("volFeBlock",Fe,fFeBlockX/2, fFeBlockY/2, fFeBlockZ/2);
302 volFeBlock->SetLineColor(kGreen-4);
303 TGeoVolume *volFeBlockEnd = gGeoManager->MakeBox("volFeBlockEnd",Fe,fFeBlockEndX/2, fFeBlockEndY/2, fFeBlockEndZ/2);
304 volFeBlockEnd->SetLineColor(kGreen-4);
305 TGeoVolume *volBlockBot = gGeoManager->MakeBox("volBlockBot",concrete,fFeBlockBotX/2, fFeBlockBotY/2, fFeBlockBotZ/2);
306 volBlockBot->SetLineColor(kGreen-4);
307
308 // support box
309 TGeoBBox *supDSBoxInner = new TGeoBBox("supDSBoxI",DSBoxDim.X()/2,DSBoxDim.Y()/2,DSBoxDim.Z()/2);
310 TGeoBBox *supDSBoxOuter = new TGeoBBox("supDSBoxO",DSBoxDim.X()/2+fSupportBoxW,DSBoxDim.Y()/2+fSupportBoxW,DSBoxDim.Z()/2+fSupportBoxW);
311 TGeoCompositeShape *subDSBoxShape = new TGeoCompositeShape("subDSBoxShape", "supDSBoxO-supDSBoxI");
312 TGeoVolume *subDSBox = new TGeoVolume("subDSBox", subDSBoxShape, Al);
313 subDSBox->SetLineColor(kGray+1);
314 TGeoBBox *supUSBoxInner = new TGeoBBox("supUSBoxI",USBoxDim.X()/2,USBoxDim.Y()/2,USBoxDim.Z()/2);
315 TGeoBBox *supUSBoxOuter = new TGeoBBox("supUSBoxO",USBoxDim.X()/2+fSupportBoxW,USBoxDim.Y()/2+fSupportBoxW,USBoxDim.Z()/2+fSupportBoxW);
316 TGeoCompositeShape *subUSBoxShape = new TGeoCompositeShape("subUSBoxShape", "supUSBoxO-supUSBoxI");
317 TGeoVolume *subUSBox = new TGeoVolume("subUSBox", subUSBoxShape, Al);
318 subUSBox->SetLineColor(kGray+1);
319
320 top->AddNode(volMuFilter,1,new TGeoTranslation(fShiftX,fShiftY,fShiftZ ));
321
322 Double_t dy = 0;
323 Double_t dz = 0;
324 //Upstream Detector planes definition
325 Double_t fUpstreamDetZ = conf_floats["MuFilter/UpstreamDetZ"];
326
327 // local position of bottom horizontal bar to survey edge
328 TVector3 LocBarUS = TVector3(
329 -conf_floats["MuFilter/DSHLocX"],
330 conf_floats["MuFilter/DSHLocZ"] - conf_floats["MuFilter/DownstreamBarY"]/2 + conf_floats["MuFilter/UpstreamBarY"]/2,
331 conf_floats["MuFilter/DSHLocY"]);
332
333 TGeoVolume* volUpstreamDet;
334 Double_t fUpstreamBarX = conf_floats["MuFilter/UpstreamBarX"]; //Staggered bars of upstream section
335 Double_t fUpstreamBarY = conf_floats["MuFilter/UpstreamBarY"];
336 Double_t fUpstreamBarZ = conf_floats["MuFilter/UpstreamBarZ"];
337 Double_t fUpstreamBarGap = conf_floats["MuFilter/UpstreamBarGap"];
338
339 //adding staggered bars, first part, only 11 bars, (single stations, readout on both ends)
340 TGeoVolume *volMuUpstreamBar = gGeoManager->MakeBox("volMuUpstreamBar",Scint,fUpstreamBarX/2, fUpstreamBarY/2, fUpstreamBarZ/2);
341 volMuUpstreamBar->SetLineColor(kBlue+2);
342 AddSensitiveVolume(volMuUpstreamBar);
343 for(Int_t l=0; l<fNUpstreamPlanes; l++)
344 {
345 string name = "volMuUpstreamDet_"+std::to_string(l);
346 volUpstreamDet = new TGeoVolumeAssembly(name.c_str());
347
348 displacement = edge_Iron[l+1] - TVector3(fFeBlockX/2,-fFeBlockY/2,-fFeBlockZ/2);
349 volMuFilter->AddNode(volFeBlock,l,
350 new TGeoTranslation(displacement.X(),displacement.Y(),displacement.Z()));
351// place for H8 mockup target 20cm in front of US1
352 if (edge_Iron[9][2] <0.1 && l==0) {
353 TGeoVolume *volFeTarget = gGeoManager->MakeBox("volFeTarget",Fe,80./2, 60./2, 29.5/2);
354 volFeTarget->SetLineColor(kGreen-4);
355 displacement = edge_Iron[l+1] - TVector3(80/2,-60/2,29.5/2+fFeBlockZ );
356 volMuFilter->AddNode(volFeTarget,1,
357 new TGeoTranslation(displacement.X(),displacement.Y(),displacement.Z()));
358 }
359 displacement = edge_MuFilter[l+1]+LocBarUS + TVector3(-fUpstreamBarX/2, 0, 0);
360 volMuFilter->AddNode(volUpstreamDet,fNVetoPlanes+l,
361 new TGeoTranslation(displacement.X(),displacement.Y(),displacement.Z()));
362
363 // USBox1 = bottom front left
364 displacement = edge_MuFilter[l+1] +USBox1 + TVector3(-USBoxDim.X()/2,USBoxDim.Y()/2,USBoxDim.Z()/2);
365 volMuFilter->AddNode(subUSBox,l+fNVetoPlanes,
366 new TGeoTranslation(displacement.X(),displacement.Y(),displacement.Z()));
367
368 displacement = TVector3(0, 0, 0);
369 for (Int_t ibar = 0; ibar < fNUpstreamBars; ibar++){
370 Double_t dy_bar = (fUpstreamBarY + fUpstreamBarGap)*ibar;
371 volUpstreamDet->AddNode(volMuUpstreamBar,2e+4+l*1e+3+ibar,
372 new TGeoTranslation(displacement.X(),displacement.Y()+conf_floats["MuFilter/USOffZ"+to_string(l+1)]+dy_bar,displacement.Z()));
373 }
374
375 }
376
377 //*************************************DOWNSTREAM (high granularity) SECTION*****************//
378
379 // first loop, adding detector main boxes
380 TGeoVolume* volDownstreamDet;
381
382 // local position of bottom horizontal bar to survey edge
383 TVector3 LocBarH = TVector3(-conf_floats["MuFilter/DSHLocX"],conf_floats["MuFilter/DSHLocZ"],conf_floats["MuFilter/DSHLocY"]);
384 // local position of l left vertical bar to survey edge
385 TVector3 LocBarV = TVector3(-conf_floats["MuFilter/DSVLocX"],conf_floats["MuFilter/DSVLocZ"],conf_floats["MuFilter/DSVLocY"]);
386
387 Double_t fDownstreamBarX = conf_floats["MuFilter/DownstreamBarX"]; // Staggered bars of upstream section
388 Double_t fDownstreamBarY = conf_floats["MuFilter/DownstreamBarY"];
389 Double_t fDownstreamBarZ = conf_floats["MuFilter/DownstreamBarZ"];
390 Double_t fDownstreamBarGap = conf_floats["MuFilter/DownstreamBarGap"];
391
392 TGeoVolume *volMuDownstreamBar_hor = gGeoManager->MakeBox("volMuDownstreamBar_hor",Scint,fDownstreamBarX/2, fDownstreamBarY/2, fDownstreamBarZ/2);
393 volMuDownstreamBar_hor->SetLineColor(kAzure+7);
394 AddSensitiveVolume(volMuDownstreamBar_hor);
395
396 //vertical bars, for x measurement
397 TGeoVolume *volMuDownstreamBar_ver = gGeoManager->MakeBox("volMuDownstreamBar_ver",Scint,fDownstreamBarX_ver/2, fDownstreamBarY_ver/2, fDownstreamBarZ/2);
398 volMuDownstreamBar_ver->SetLineColor(kViolet-2);
399 AddSensitiveVolume(volMuDownstreamBar_ver);
400
401 // In testbeam 2023 det. layout, there is an iron block in front of the single DS plane!
402 int n_planes;
403 n_planes = fNDownstreamPlanes>1 ? fNDownstreamPlanes-1 : fNDownstreamPlanes;
404
405 for(Int_t l=0; l<fNDownstreamPlanes; l++)
406 {
407 if (l<n_planes){
408 displacement = edge_Iron[l+fNUpstreamPlanes+1] - TVector3(fFeBlockX/2,-fFeBlockY/2,-fFeBlockZ/2);
409 volMuFilter->AddNode(volFeBlock,l+fNUpstreamPlanes+fNVetoPlanes,
410 new TGeoTranslation(displacement.X(),displacement.Y(),displacement.Z()));
411 }else if (edge_Iron[9][2] >0.1) {
412// more iron
413 displacement = edge_Iron[l+fNUpstreamPlanes+1] - TVector3(fFeBlockEndX/2,-fFeBlockEndY/2,-fFeBlockEndZ/2);
414 volMuFilter->AddNode(volFeBlockEnd,1,
415 new TGeoTranslation(displacement.X(),displacement.Y(),displacement.Z()));
416 displacement = edge_Iron[l+fNUpstreamPlanes+1] - TVector3(fFeBlockBotX/2-10.0, fFeBlockBotY/2,fFeBlockBotZ/2-fFeBlockEndZ);
417 volMuFilter->AddNode(volBlockBot,1,
418 new TGeoTranslation(displacement.X(),displacement.Y(),displacement.Z()));
419 }
420
421 // add detectors
422 string name = "volMuDownstreamDet_"+std::to_string(l);
423 volDownstreamDet = new TGeoVolumeAssembly(name.c_str());
424 displacement = edge_MuFilter[l+fNUpstreamPlanes+1] + LocBarH + TVector3(-fDownstreamBarX/2, 0,0);
425
426 volMuFilter->AddNode(volDownstreamDet,l+fNUpstreamPlanes+fNVetoPlanes,
427 new TGeoTranslation(displacement.X(),displacement.Y(),displacement.Z()));
428
429 //adding bars within each detector box
430 if (l!=n_planes) {
431 displacement = TVector3(0, 0,0);
432 for (Int_t ibar = 0; ibar < fNDownstreamBars; ibar++){
433 //adding horizontal bars for y
434 Double_t dy_bar = (fDownstreamBarY + fDownstreamBarGap)*ibar;
435 volDownstreamDet->AddNode(volMuDownstreamBar_hor,3e+4+l*1e+3+ibar,
436 new TGeoTranslation(displacement.X(),displacement.Y()+dy_bar,displacement.Z()));
437 }
438 }
439 // DSBox1 = bottom front left
440 displacement = edge_MuFilter[l+fNUpstreamPlanes+1] +DSBox1 +
441 TVector3(-DSBoxDim.X()/2,DSBoxDim.Y()/2,DSBoxDim.Z()/2);
442 volMuFilter->AddNode(subDSBox,l+fNUpstreamPlanes+fNVetoPlanes,
443 new TGeoTranslation(displacement.X(),displacement.Y(),displacement.Z()));
444 //adding vertical bars for x
445 displacement = LocBarV + TVector3(0, -fDownstreamBarY_ver/2,0) - LocBarH - TVector3(-fDownstreamBarX/2, 0,0);
446 for (Int_t i_vbar = 0; i_vbar<fNDownstreamBars; i_vbar++) {
447 Double_t dx_bar = (fDownstreamBarX_ver+ fDownstreamBarGap)*i_vbar;
448 Int_t i_vbar_rev = fNDownstreamBars-1-i_vbar;
449 volDownstreamDet->AddNode(volMuDownstreamBar_ver,3e+4+l*1e+3+i_vbar_rev+60,
450 new TGeoTranslation(displacement.X()+dx_bar,displacement.Y(),displacement.Z()));
451 // Andrew added a 60 here to make each horizontal + vertical sub-plane contain bars given detIDs as one plane. So the first bar in the vert. sub plane is the 60th etc.
452 }
453 }
454}
MuFilter::conf_floats
std::map< TString, Float_t > conf_floats
Definition MuFilter.h:101
MuFilter::conf_ints
std::map< TString, Int_t > conf_ints
Definition MuFilter.h:102
MuFilter::InitMedium
Int_t InitMedium(const char *name)
Definition MuFilter.cxx:104
ShipAna.i
int i
Definition ShipAna.py:86
ana_ShipMuon.l
dict l
Definition ana_ShipMuon.py:494

◆ CopyClones()

virtual void MuFilter::CopyClones ( TClonesArray *  cl1,
TClonesArray *  cl2,
Int_t  offset
)
inlinevirtual

Definition at line 71 of file MuFilter.h.

71{;}

◆ EndOfEvent()

void MuFilter::EndOfEvent ( )
virtual

Definition at line 521 of file MuFilter.cxx.

522{
523 fMuFilterPointCollection->Clear();
524}

◆ FinishPrimary()

virtual void MuFilter::FinishPrimary ( )
inlinevirtual

Definition at line 74 of file MuFilter.h.

74{;}

◆ FinishRun()

virtual void MuFilter::FinishRun ( )
inlinevirtual

Definition at line 75 of file MuFilter.h.

75{;}

◆ GetCollection()

TClonesArray * MuFilter::GetCollection ( Int_t  iColl) const
virtual

Gets the produced collections

Definition at line 540 of file MuFilter.cxx.

541{
542 if (iColl == 0) { return fMuFilterPointCollection; }
543 else { return NULL; }
544}

◆ GetConfParF()

Float_t MuFilter::GetConfParF ( TString  name)
inline

Definition at line 46 of file MuFilter.h.

46{return conf_floats[name];}

◆ GetConfParI()

Int_t MuFilter::GetConfParI ( TString  name)
inline

Definition at line 47 of file MuFilter.h.

47{return conf_ints[name];}

◆ GetConfParS()

TString MuFilter::GetConfParS ( TString  name)
inline

Definition at line 48 of file MuFilter.h.

48{return conf_strings[name];}
MuFilter::conf_strings
std::map< TString, TString > conf_strings
Definition MuFilter.h:103

◆ GetCorrectedTime()

Float_t MuFilter::GetCorrectedTime ( Int_t  id,
Int_t  c,
Double_t  t,
Double_t  L
)

Definition at line 579 of file MuFilter.cxx.

579 {
580/* expect time in u.ns and path length to sipm u.cm */
581/* calibration implemented only for DS! */
582/* channel 0 left or top, channel 1 right */
583 if (fDetectorID<30000){
584 LOG(ERROR) << "MuFilter::GetCorrectedTime: not yet implemented for Veto and DS, no correction applied" ;
585 return rawTime;
586 }
587 TString tag = "";
588 if (eventHeader){
589 Int_t fRunNumber = eventHeader->GetRunId();
590 if (fRunNumber != last_run_time){
591 last_run_time = fRunNumber;
592
593 if (fRunNumber<1){
594 LOG(ERROR) << "MuFilter::GetCorrectedTime: non valid run number "<<fRunNumber;
595 return rawTime;
596 }
597
598 if (covered_runs_time_alignment.size()!=0){
599 tag = "t_"+to_string(covered_runs_time_alignment[covered_runs_time_alignment.size()-1]);
600 for (int i=1; i<covered_runs_time_alignment.size(); i++){
601 if (fRunNumber>=covered_runs_time_alignment[i-1] && fRunNumber<covered_runs_time_alignment[i]){
602 tag = "t_"+to_string(covered_runs_time_alignment[i-1]);
603 }
604 }
605 //special case
606 if (fRunNumber<5193 && fRunNumber>5174) tag = "t_"+to_string(covered_runs_time_alignment[0]);
607 }
608 else{
609 // allow reading older geo files with letter tags i.e. A, B, C
610 tag = "A";
611 if (fRunNumber>5116 && !(fRunNumber<5193 && fRunNumber>5174) ) {tag = "B";}
612 }
613 // 2023 testbeam data doesn't have a custom tag
614 if (fRunNumber>=1e5) {tag = "";}
615 last_time_alignment_tag = tag;
616 }
617 }
618 Float_t cor = rawTime;
619 int l = (fDetectorID-30000)/1000;
620 int ichannel60 = fDetectorID%1000;
621 int p;
622 if (channel==0 && ichannel60<30 ){p=0+l*6;}
623 if (channel==0 && ichannel60>29 && ichannel60<60 ){p=1+l*6;}
624 if (channel==1 && ichannel60<30 ){p=2+l*6;}
625 if (channel==1 && ichannel60>29 && ichannel60<60 ){p=3+l*6;}
626 if (channel==0 && ichannel60>59 && ichannel60<90 ){p=4+l*6;}
627 if (channel==0 && ichannel60>89 && ichannel60<120 ){p=5+l*6;}
628 if (l==3){p-=4;}
629 if (ichannel60>59) {ichannel60-=60;}
630 // DS time alignment first order
631 if (ichannel60<30){cor += conf_floats["MuFilter/DSTcorslope"+last_time_alignment_tag]*(ichannel60-15);}
632 else{ cor -= conf_floats["MuFilter/DSTcorslope"+last_time_alignment_tag]*(ichannel60-45);}
633 string si = to_string(p);
634 cor -= conf_floats["MuFilter/DSTcorC"+si+last_time_alignment_tag];
635 cor -= L/conf_floats["MuFilter/DsPropSpeed"];
636 return cor;
637}
MuFilter::covered_runs_time_alignment
std::vector< int > covered_runs_time_alignment
Definition MuFilter.h:107
run_simPgun.tag
str tag
Definition run_simPgun.py:22

◆ GetLocalPosition()

void MuFilter::GetLocalPosition ( Int_t  id,
TVector3 &  vLeft,
TVector3 &  vRight
)

Definition at line 563 of file MuFilter.cxx.

564{
565 GetPosition(fDetectorID, vLeft, vRight);
566 TGeoNavigator* nav = gGeoManager->GetCurrentNavigator();
567 TString path = nav->GetPath();
568 TString loc( path(0, path.Last('/') ) );
569 nav->cd(loc);
570 Double_t A[3] = {vLeft.X(),vLeft.Y(),vLeft.Z()};
571 Double_t B[3] = {vRight.X(),vRight.Y(),vRight.Z()};
572 Double_t locA[3] = {0,0,0};
573 Double_t locB[3] = {0,0,0};
574 nav->MasterToLocal(A, locA); nav->MasterToLocal(B, locB);
575 vLeft.SetXYZ(locA[0],locA[1],locA[2]);
576 vRight.SetXYZ(locB[0],locB[1],locB[2]);
577}
MuFilter::GetPosition
void GetPosition(Int_t id, TVector3 &vLeft, TVector3 &vRight)
Definition MuFilter.cxx:639
ana_ShipMuon.path
str path
Definition ana_ShipMuon.py:327
geometry_config.B
B
Definition geometry_config.py:512

◆ GetnSides()

Int_t MuFilter::GetnSides ( Int_t  detID)

Definition at line 715 of file MuFilter.cxx.

715 {
716 int subsystem = floor(detID/10000)-1;
717 if (subsystem==0){
718 // vertical Veto 3 has the readout on the top only
719 if (detID>=12000) return conf_ints["MuFilter/VetonSides"]-1;
720 else {return conf_ints["MuFilter/VetonSides"];}
721 }
722 if (subsystem==1){return conf_ints["MuFilter/UpstreamnSides"];}
723 if (subsystem==2){
724 if (detID%1000>59) return conf_ints["MuFilter/DownstreamnSides"]-1;
725 else {return conf_ints["MuFilter/DownstreamnSides"];}
726 }
727 }

◆ GetnSiPMs()

Int_t MuFilter::GetnSiPMs ( Int_t  detID)

Definition at line 708 of file MuFilter.cxx.

708 {
709 int subsystem = floor(detID/10000)-1;
710 if (subsystem==0){return conf_ints["MuFilter/VetonSiPMs"];}
711 if (subsystem==1){return conf_ints["MuFilter/UpstreamnSiPMs"];}
712 return conf_ints["MuFilter/DownstreamnSiPMs"];
713
714 }

◆ GetPosition()

void MuFilter::GetPosition ( Int_t  id,
TVector3 &  vLeft,
TVector3 &  vRight
)

Getposition

Definition at line 639 of file MuFilter.cxx.

640{
641
642 int subsystem = floor(fDetectorID/10000);
643 int plane = floor(fDetectorID/1000) - 10*subsystem;
644 int bar_number = fDetectorID%1000;
645
646 TString path = "/cave_1/Detector_0/";
647 TString barName;
648 Float_t shift;
649 switch(subsystem) {
650 // VETO/US/DS alignment relativ to Scifi only done once.
651 // should be done after each emulsion exchange.
652 case 1:
653 path+="volVeto_1/volVetoPlane_"+std::to_string(plane)+"_"+std::to_string(plane);
654 // keeping the name of horizontal Veto planes for backward compatibility
655 barName = "/volVetoBar_";
656 // the third Veto plane is vertical
657 if (plane>=2) barName+="ver_";
658 shift = conf_floats["MuFilter/Veto"+std::to_string(plane+1)+"ShiftX"];
659 break;
660 case 2:
661 path+="volMuFilter_1/volMuUpstreamDet_"+std::to_string(plane)+"_"
662 +std::to_string(plane+conf_ints["MuFilter/NVetoPlanes"]);
663 barName = "/volMuUpstreamBar_";
664 shift = conf_floats["MuFilter/US"+std::to_string(plane+1)+"ShiftY"];
665 break;
666 case 3:
667 path+="volMuFilter_1/volMuDownstreamDet_"+std::to_string(plane)+"_"
668 +std::to_string(plane+conf_ints["MuFilter/NVetoPlanes"]
669 +conf_ints["MuFilter/NUpstreamPlanes"]);
670 barName = "/volMuDownstreamBar_";
671 if (bar_number<60){
672 barName+="hor_";
673 shift = conf_floats["MuFilter/DS"+std::to_string(plane+1)+"ShiftY"];
674 }
675 else{
676 barName+="ver_";
677 shift = conf_floats["MuFilter/DS"+std::to_string(plane+1)+"ShiftX"];
678 }
679 break;
680 }
681 path += barName+std::to_string(fDetectorID);
682
683 TGeoNavigator* nav = gGeoManager->GetCurrentNavigator();
684 nav->cd(path);
685 LOG(DEBUG) <<path<<" "<<fDetectorID<<" "<<subsystem<<" "<<bar_number;
686 TGeoNode* W = nav->GetCurrentNode();
687 TGeoBBox* S = dynamic_cast<TGeoBBox*>(W->GetVolume()->GetShape());
688
689 if ( (subsystem == 3 and bar_number >59) or
690 (subsystem == 1 and plane ==2) ){ // vertical bars
691 Double_t top[3] = {shift,S->GetDY(), 0};
692 Double_t bot[3] = {shift,-S->GetDY(),0};
693 Double_t Gtop[3],Gbot[3];
694 nav->LocalToMaster(top, Gtop); nav->LocalToMaster(bot, Gbot);
695 vLeft.SetXYZ(Gtop[0],Gtop[1],Gtop[2]);
696 vRight.SetXYZ(Gbot[0],Gbot[1],Gbot[2]);
697 }
698 else { // horizontal bars
699 Double_t posXend[3] = {S->GetDX(),shift,0};
700 Double_t negXend[3] = {-S->GetDX(),shift,0};
701 Double_t GposXend[3],GnegXend[3];
702 nav->LocalToMaster(posXend, GposXend); nav->LocalToMaster(negXend, GnegXend);
703 vLeft.SetXYZ(GposXend[0],GposXend[1],GposXend[2]);
704 vRight.SetXYZ(GnegXend[0],GnegXend[1],GnegXend[2]);
705 }
706}
MufiCTR.S
dict S
Definition MufiCTR.py:12

◆ InitEvent()

void MuFilter::InitEvent ( SNDLHCEventHeader *  e)

Definition at line 456 of file MuFilter.cxx.

456 {
457 // get mapping to eventHeader
458 eventHeader = e;
459
460 // Initialize
461 if (not alignment_init) {
462 alignment_init = true;
463 // Get available tags from the geometry file
464 std::string tag_string;
465 for (auto key : conf_floats){
466 tag_string = key.first.Data();
467 if (tag_string.find("MuFilter/DSTcorslopet_") != string::npos){
468 covered_runs_time_alignment.push_back(stoi(tag_string.substr(tag_string.find("t_")+2)));
469 }
470 }
471 std::sort(covered_runs_time_alignment.begin(),covered_runs_time_alignment.end());
472 }
473};

◆ Initialize()

void MuFilter::Initialize ( )
virtual

Initialization of the detector is done here

Definition at line 98 of file MuFilter.cxx.

99{
100 FairDetector::Initialize();
101}

◆ InitMedium()

Int_t MuFilter::InitMedium ( const char *  name)
protected

Definition at line 104 of file MuFilter.cxx.

105{
106 static FairGeoLoader *geoLoad=FairGeoLoader::Instance();
107 static FairGeoInterface *geoFace=geoLoad->getGeoInterface();
108 static FairGeoMedia *media=geoFace->getMedia();
109 static FairGeoBuilder *geoBuild=geoLoad->getGeoBuilder();
110
111 FairGeoMedium *ShipMedium=media->getMedium(name);
112
113 if (!ShipMedium)
114 {
115 Fatal("InitMedium","Material %s not defined in media file.", name);
116 return -1111;
117 }
118 TGeoMedium* medium=gGeoManager->GetMedium(name);
119 if (medium!=NULL)
120 return ShipMedium->getMediumIndex();
121 return geoBuild->createMedium(ShipMedium);
122}

◆ operator=()

MuFilter & MuFilter::operator= ( const MuFilter &  )

◆ PostTrack()

virtual void MuFilter::PostTrack ( )
inlinevirtual

Definition at line 77 of file MuFilter.h.

77{;}

◆ PreTrack()

virtual void MuFilter::PreTrack ( )
inlinevirtual

Definition at line 78 of file MuFilter.h.

78{;}

◆ ProcessHits()

Bool_t MuFilter::ProcessHits ( FairVolume *  v = 0)
virtual

Method called for each step during simulation (see FairMCApplication::Stepping())

This method is called from the MC stepping

Definition at line 476 of file MuFilter.cxx.

477{
479 //Set parameters at entrance of volume. Reset ELoss.
480 if ( gMC->IsTrackEntering() )
481 {
482 fELoss = 0.;
483 fTime = gMC->TrackTime() * 1.0e09;
484 fLength = gMC->TrackLength();
485 gMC->TrackPosition(fPos);
486 gMC->TrackMomentum(fMom);
487 }
488 // Sum energy loss for all steps in the active volume
489 fELoss += gMC->Edep();
490
491 // Create MuFilterPoint at exit of active volume
492 if ( gMC->IsTrackExiting() ||
493 gMC->IsTrackStop() ||
494 gMC->IsTrackDisappeared() ) {
495 fTrackID = gMC->GetStack()->GetCurrentTrackNumber();
496 gMC->CurrentVolID(fVolumeID);
497
498 if (fELoss == 0. ) { return kFALSE; }
499 TParticle* p=gMC->GetStack()->GetCurrentTrack();
500 Int_t pdgCode = p->GetPdgCode();
501
502 TLorentzVector Pos;
503 gMC->TrackPosition(Pos);
504 Double_t xmean = (fPos.X()+Pos.X())/2. ;
505 Double_t ymean = (fPos.Y()+Pos.Y())/2. ;
506 Double_t zmean = (fPos.Z()+Pos.Z())/2. ;
507
508
509 AddHit(fTrackID,fVolumeID, TVector3(xmean, ymean, zmean),
510 TVector3(fMom.Px(), fMom.Py(), fMom.Pz()), fTime, fLength,
511 fELoss, pdgCode);
512
513 // Increment number of muon det points in TParticle
514 ShipStack* stack = (ShipStack*) gMC->GetStack();
515 stack->AddPoint(kMuFilter);
516 }
517
518 return kTRUE;
519}
MuFilter::AddHit
MuFilterPoint * AddHit(Int_t trackID, Int_t detID, TVector3 pos, TVector3 mom, Double_t time, Double_t length, Double_t eLoss, Int_t pdgCode)
Definition MuFilter.cxx:552
run_simScript.gMC
gMC
Definition run_simScript.py:590

◆ Register()

void MuFilter::Register ( )
virtual

Registers the produced collections in FAIRRootManager.

This will create a branch in the output tree called MuFilterPoint, setting the last parameter to kFALSE means: this collection will not be written to the file, it will exist only during the simulation.

Definition at line 527 of file MuFilter.cxx.

528{
529
536 FairRootManager::Instance()->Register("MuFilterPoint", "MuFilter",
537 fMuFilterPointCollection, kTRUE);
538}

◆ Reset()

void MuFilter::Reset ( )
virtual

has to be called after each event to reset the containers

Definition at line 546 of file MuFilter.cxx.

547{
548 fMuFilterPointCollection->Clear();
549}

◆ SetConfPar() [1/3]

void MuFilter::SetConfPar ( TString  name,
Float_t  value
)
inline

Definition at line 43 of file MuFilter.h.

43{conf_floats[name]=value;}

◆ SetConfPar() [2/3]

void MuFilter::SetConfPar ( TString  name,
Int_t  value
)
inline

Definition at line 44 of file MuFilter.h.

44{conf_ints[name]=value;}

◆ SetConfPar() [3/3]

void MuFilter::SetConfPar ( TString  name,
TString  value
)
inline

Definition at line 45 of file MuFilter.h.

45{conf_strings[name]=value;}

◆ SetSpecialPhysicsCuts()

virtual void MuFilter::SetSpecialPhysicsCuts ( )
inlinevirtual

Definition at line 72 of file MuFilter.h.

72{;}

Member Data Documentation

◆ alignment_init

bool MuFilter::alignment_init

Definition at line 110 of file MuFilter.h.

◆ conf_floats

std::map<TString,Float_t> MuFilter::conf_floats

configuration parameters

Definition at line 101 of file MuFilter.h.

◆ conf_ints

std::map<TString,Int_t> MuFilter::conf_ints

Definition at line 102 of file MuFilter.h.

◆ conf_strings

std::map<TString,TString> MuFilter::conf_strings

Definition at line 103 of file MuFilter.h.

◆ covered_runs_time_alignment

std::vector<int> MuFilter::covered_runs_time_alignment

Definition at line 107 of file MuFilter.h.

◆ eventHeader

SNDLHCEventHeader* MuFilter::eventHeader

Definition at line 104 of file MuFilter.h.

◆ fELoss

Double32_t MuFilter::fELoss

length

Definition at line 95 of file MuFilter.h.

◆ fLength

Double32_t MuFilter::fLength

time

Definition at line 94 of file MuFilter.h.

◆ fMom

TLorentzVector MuFilter::fMom

position at entrance

Definition at line 92 of file MuFilter.h.

◆ fMuFilterPointCollection

TClonesArray* MuFilter::fMuFilterPointCollection

energy loss

container for data points

Definition at line 98 of file MuFilter.h.

◆ fPos

TLorentzVector MuFilter::fPos

volume id

Definition at line 91 of file MuFilter.h.

◆ fTime

Double32_t MuFilter::fTime

momentum at entrance

Definition at line 93 of file MuFilter.h.

◆ fVolumeID

ClassDef (MuFilter,4) private Int_t MuFilter::fVolumeID

track index

Track information to be stored until the track leaves the active volume.

Definition at line 90 of file MuFilter.h.

◆ last_run_pos

int MuFilter::last_run_pos

Definition at line 109 of file MuFilter.h.

◆ last_run_time

int MuFilter::last_run_time

Definition at line 109 of file MuFilter.h.

◆ last_time_alignment_tag

TString MuFilter::last_time_alignment_tag

Definition at line 108 of file MuFilter.h.
