snd::analysis_cuts::USQDCCut Class Reference

#include <sndUSQDCCut.h>

Inheritance diagram for snd::analysis_cuts::USQDCCut:

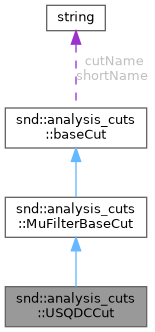

Collaboration diagram for snd::analysis_cuts::USQDCCut:

Public Member Functions
	USQDCCut (float threshold, TChain *ch)
	~USQDCCut ()
bool	passCut ()
Public Member Functions inherited from snd::analysis_cuts::baseCut
std::string	getName ()
std::string	getShortName ()
std::vector< int >	getNbins ()
std::vector< double >	getRangeStart ()
std::vector< double >	getRangeEnd ()
std::vector< double >	getPlotVar ()

Private Attributes
float	qdc_threshold

Additional Inherited Members
Protected Member Functions inherited from snd::analysis_cuts::MuFilterBaseCut
	MuFilterBaseCut (TChain *ch)
	~MuFilterBaseCut ()
Protected Attributes inherited from snd::analysis_cuts::baseCut
std::string	cutName
std::string	shortName
std::vector< int >	nbins
std::vector< double >	range_start
std::vector< double >	range_end
std::vector< double >	plot_var
Static Protected Attributes inherited from snd::analysis_cuts::MuFilterBaseCut
static TClonesArray *	muFilterDigiHitCollection = 0

Detailed Description

Definition at line 10 of file sndUSQDCCut.h.

Constructor & Destructor Documentation

USQDCCut()

snd::analysis_cuts::USQDCCut::USQDCCut	(	float	threshold,
		TChain *	ch
	)

Definition at line 14 of file sndUSQDCCut.cxx.

                                                 : MuFilterBaseCut(ch) {
    qdc_threshold = threshold;
    cutName = "Total US QDC > "+std::to_string(qdc_threshold);

    shortName = "USQDC";
    nbins = std::vector<int>{100};
    range_start = std::vector<double>{0};
    range_end = std::vector<double>{10000};
    plot_var = std::vector<double>{-1};
  }

~USQDCCut()

snd::analysis_cuts::USQDCCut::~USQDCCut ( )

inline

Definition at line 15 of file sndUSQDCCut.h.

{;}

Member Function Documentation

passCut()

bool snd::analysis_cuts::USQDCCut::passCut ( )

virtual

Implements snd::analysis_cuts::baseCut.

Definition at line 25 of file sndUSQDCCut.cxx.

                        {
    MuFilterHit * hit;
    TIter hitIterator(muFilterDigiHitCollection);

    float totQDC = 0.;

    bool ds = false;
    std::vector<bool> us = std::vector<bool>(5, false);

    while ( (hit = (MuFilterHit*) hitIterator.Next()) ){
      if (hit->GetSystem() == 2) {
    for (const auto& [key, value] : hit->GetAllSignals()) {
      totQDC += value;
    }
      }
    }
    plot_var[0] = totQDC;
    if (totQDC >= qdc_threshold) return true;
    return false;
  }

Member Data Documentation

qdc_threshold

float snd::analysis_cuts::USQDCCut::qdc_threshold

private

Definition at line 12 of file sndUSQDCCut.h.

---

The documentation for this class was generated from the following files:

• analysis/cuts/sndUSQDCCut.h
• analysis/cuts/sndUSQDCCut.cxx
