hcalStructureFiller Class Reference

#include <hcalStructureFiller.h>

Inheritance diagram for hcalStructureFiller:

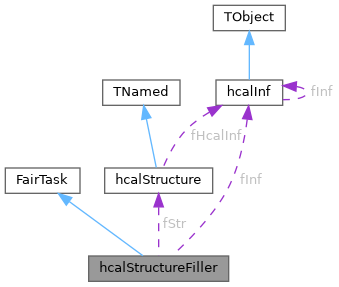

Collaboration diagram for hcalStructureFiller:

Public Member Functions
	hcalStructureFiller ()
	hcalStructureFiller (const char *name, const Int_t iVerbose=1, const char *fileGeo="hcal.geo")
virtual	~hcalStructureFiller ()
virtual InitStatus	Init ()
virtual void	Exec (Option_t *option)
virtual void	Finish ()
void	SetUseMCPoints (Bool_t UseMCPoints)
hcalStructure *	GetStructure () const
void	StoreTrackInformation (Bool_t storetrackinfo=kTRUE)
Bool_t	GetStoreTrackInformation () const
Bool_t	GetUseMCPoints () const
Bool_t	GetUseSummableHits () const
Bool_t	GetUseHits () const

Private Member Functions
void	SetParContainers ()
void	LoopForMCPoints ()
	hcalStructureFiller (const hcalStructureFiller &)
hcalStructureFiller &	operator= (const hcalStructureFiller &)

Private Attributes
hcalStructure *	fStr
hcalInf *	fInf
TClonesArray *	fListHCALpts
Int_t	fEvent
Bool_t	fInited
	Internal event counter.
Bool_t	fUseMCPoints
Bool_t	fStoreTrackInfo
TString	fFileGeo

Detailed Description

Definition at line 24 of file hcalStructureFiller.h.

Constructor & Destructor Documentation

hcalStructureFiller() [1/3]

hcalStructureFiller::hcalStructureFiller

(

)

Default constructor

Definition at line 19 of file hcalStructureFiller.cxx.

  : FairTask(),
    fStr(NULL),
    fInf(NULL),
    fListHCALpts(NULL),
    fEvent(0),
    fInited(kFALSE),
    fUseMCPoints(kFALSE),
    fStoreTrackInfo(kTRUE),
    fFileGeo("")
{
}

hcalStructureFiller() [2/3]

hcalStructureFiller::hcalStructureFiller	(	const char *	name,
		const Int_t	iVerbose = 1,
		const char *	fileGeo = "hcal.geo"
	)

Standard constructor

Definition at line 34 of file hcalStructureFiller.cxx.

  : FairTask(name,iVerbose),
    fStr(NULL),
    fInf(hcalInf::GetInstance(fileGeo)),
    fListHCALpts(NULL),
    fEvent(0),
    fInited(kFALSE),
    fUseMCPoints(kFALSE),
    fStoreTrackInfo(kTRUE),
    fFileGeo(fileGeo)
{
}

~hcalStructureFiller()

hcalStructureFiller::~hcalStructureFiller ( )

virtual

Destructor

Definition at line 50 of file hcalStructureFiller.cxx.

{
  ;
}

hcalStructureFiller() [3/3]

hcalStructureFiller::hcalStructureFiller ( const hcalStructureFiller &  )

private

Member Function Documentation

Exec()

void hcalStructureFiller::Exec ( Option_t *  option )

virtual

Executed task

Definition at line 124 of file hcalStructureFiller.cxx.

{
  fEvent++;
  if (fVerbose>0)
    cout << "--> Event no. " << fEvent;

  fStr->ResetModules();
  if (fUseMCPoints) LoopForMCPoints();

  if (fVerbose>0)
    cout << endl << flush;
}

Finish()

void hcalStructureFiller::Finish ( )

virtual

Finish task

Definition at line 140 of file hcalStructureFiller.cxx.

{
  ;
}

GetStoreTrackInformation()

Bool_t hcalStructureFiller::GetStoreTrackInformation ( ) const

inline

Definition at line 104 of file hcalStructureFiller.h.

{
  return fStoreTrackInfo;
}

GetStructure()

hcalStructure * hcalStructureFiller::GetStructure ( ) const

inline

Definition at line 109 of file hcalStructureFiller.h.

{
  return fStr;
}

GetUseHits()

Bool_t hcalStructureFiller::GetUseHits

(

)

const

GetUseMCPoints()

Bool_t hcalStructureFiller::GetUseMCPoints ( ) const

inline

Definition at line 93 of file hcalStructureFiller.h.

{
  return fUseMCPoints;
}

GetUseSummableHits()

Bool_t hcalStructureFiller::GetUseSummableHits

(

)

const

Init()

InitStatus hcalStructureFiller::Init ( )

virtual

Initialization of the task

Definition at line 62 of file hcalStructureFiller.cxx.

{
  fInited=kTRUE;
  FairRootManager* fManager = FairRootManager::Instance();

  if (fUseMCPoints==kFALSE)
  {
    Warning("Init()", "No data source for structure filler! Calorimeter structure will be empty.");
//    return kFATAL;
  }
  //HCAL MC points
  if (fUseMCPoints)
    fListHCALpts = (TClonesArray*)fManager->GetObject("HcalPointLite");

  //fInf->CheckVariables();
  fStr=new hcalStructure(fInf);
  if (fStoreTrackInfo) fStr->SetUseMC(1);
  fStr->Construct();

  fManager->Register("HcalStructure", "HCAL", fStr, kFALSE);
  return kSUCCESS;
}

LoopForMCPoints()

void hcalStructureFiller::LoopForMCPoints ( )

private

Loop over MCPoints

Loop over MCPoints hits and add them to modules

Definition at line 87 of file hcalStructureFiller.cxx.

{
  hcalPoint* pt=NULL;
  hcalModule* module;
  UInt_t n;
  Int_t section;

  n=fListHCALpts->GetEntriesFast();
  if (fVerbose>0)
  {
    cout << ". Number of input MC points: ";
    cout << n << flush;
  }

  for(UInt_t j=0; j<n; j++)
  {
    pt=(hcalPoint*)fListHCALpts->At(j);
    module=fStr->GetModule(pt->GetDetectorID(), section);
    cout << section << " " << pt->GetEnergyLoss() << endl;
    if (section==0)
      module->AddEnergy(pt->GetEnergyLoss());
    else
      module->AddEnergy2(pt->GetEnergyLoss());
  }
  if (fStoreTrackInfo)
  for(UInt_t j=0; j<n; j++)
  {
    pt=(hcalPoint*)fListHCALpts->At(j);
    hcalModuleMC* modulemc=(hcalModuleMC*)fStr->GetModule(pt->GetDetectorID(), section);
    if (section==0)
      modulemc->AddTrackEnergy(pt->GetTrackID(),pt->GetEnergyLoss());
    else
      modulemc->AddTrackEnergy2(pt->GetTrackID(),pt->GetEnergyLoss());
  }
}

operator=()

hcalStructureFiller & hcalStructureFiller::operator= ( const hcalStructureFiller &  )

private

SetParContainers()

void hcalStructureFiller::SetParContainers ( )

private

Init parameter containers

Definition at line 56 of file hcalStructureFiller.cxx.

{
  ;
}

SetUseMCPoints()

void hcalStructureFiller::SetUseMCPoints ( Bool_t  UseMCPoints )

inline

Set data source for hit producer. This must be called before Init() (No effect other case)!

Definition at line 87 of file hcalStructureFiller.h.

{
  if (fInited) return;
  fUseMCPoints=UseMCPoints;
}

StoreTrackInformation()

void hcalStructureFiller::StoreTrackInformation ( Bool_t  storetrackinfo = kTRUE )

inline

Definition at line 98 of file hcalStructureFiller.h.

{
  if (fInited) return;
  fStoreTrackInfo=storetrackinfo;
}

Member Data Documentation

fEvent

Int_t hcalStructureFiller::fEvent

private

Definition at line 68 of file hcalStructureFiller.h.

fFileGeo

TString hcalStructureFiller::fFileGeo

private

Geo file to use

Definition at line 78 of file hcalStructureFiller.h.

fInf

hcalInf* hcalStructureFiller::fInf

private

Definition at line 65 of file hcalStructureFiller.h.

fInited

Bool_t hcalStructureFiller::fInited

private

Internal event counter.

Is Init() already done?

Definition at line 71 of file hcalStructureFiller.h.

fListHCALpts

TClonesArray* hcalStructureFiller::fListHCALpts

private

Definition at line 67 of file hcalStructureFiller.h.

fStoreTrackInfo

Bool_t hcalStructureFiller::fStoreTrackInfo

private

Should we store information about tracks/energy depostion

Definition at line 76 of file hcalStructureFiller.h.

fStr

hcalStructure* hcalStructureFiller::fStr

private

Definition at line 64 of file hcalStructureFiller.h.

fUseMCPoints

Bool_t hcalStructureFiller::fUseMCPoints

private

Should we take data from MCPoints?

Definition at line 73 of file hcalStructureFiller.h.

---

The documentation for this class was generated from the following files:

• hcal/hcalStructureFiller.h
• hcal/hcalStructureFiller.cxx
