ecalStructureFiller Class Reference

#include <ecalStructureFiller.h>

Inheritance diagram for ecalStructureFiller:

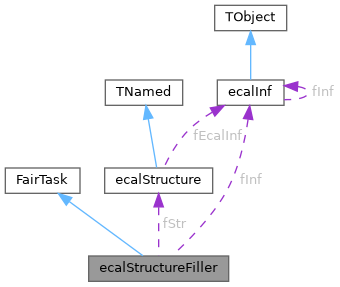

Collaboration diagram for ecalStructureFiller:

Public Member Functions
	ecalStructureFiller ()
	ecalStructureFiller (const char *name, const Int_t iVerbose=1, const char *fileGeo="ecal_FullMC.geo")
virtual	~ecalStructureFiller ()
virtual InitStatus	Init ()
ecalStructure *	InitPython (TClonesArray *litePoints)
virtual void	Exec (Option_t *option, TClonesArray *litePoints)
virtual void	Finish ()
void	SetUseMCPoints (Bool_t UseMCPoints)
ecalStructure *	GetStructure () const
void	StoreTrackInformation (Bool_t storetrackinfo=kTRUE)
Bool_t	GetStoreTrackInformation () const
Bool_t	GetUseMCPoints () const
Bool_t	GetUseSummableHits () const
Bool_t	GetUseHits () const

Private Member Functions
void	SetParContainers ()
void	LoopForMCPoints ()
	ecalStructureFiller (const ecalStructureFiller &)
ecalStructureFiller &	operator= (const ecalStructureFiller &)

Private Attributes
ecalStructure *	fStr
ecalInf *	fInf
TClonesArray *	fListECALpts
Int_t	fEvent
Bool_t	fInited
	Internal event counter.
Bool_t	fUseMCPoints
Bool_t	fStoreTrackInfo
TString	fFileGeo

Detailed Description

Definition at line 24 of file ecalStructureFiller.h.

Constructor & Destructor Documentation

ecalStructureFiller() [1/3]

ecalStructureFiller::ecalStructureFiller

(

)

Default constructor

Definition at line 19 of file ecalStructureFiller.cxx.

  : FairTask(),
    fStr(NULL),
    fInf(NULL),
    fListECALpts(NULL),
    fEvent(0),
    fInited(kFALSE),
    fUseMCPoints(kFALSE),
    fStoreTrackInfo(kTRUE),
    fFileGeo("")
{
}

ecalStructureFiller() [2/3]

ecalStructureFiller::ecalStructureFiller	(	const char *	name,
		const Int_t	iVerbose = 1,
		const char *	fileGeo = "ecal_FullMC.geo"
	)

Standard constructor

Definition at line 34 of file ecalStructureFiller.cxx.

  : FairTask(name,iVerbose),
    fStr(NULL),
    fInf(ecalInf::GetInstance(fileGeo)),
    fListECALpts(NULL),
    fEvent(0),
    fInited(kFALSE),
    fUseMCPoints(kFALSE),
    fStoreTrackInfo(kTRUE),
    fFileGeo(fileGeo)
{
}

~ecalStructureFiller()

ecalStructureFiller::~ecalStructureFiller ( )

virtual

Destructor

Definition at line 50 of file ecalStructureFiller.cxx.

{
  ;
}

ecalStructureFiller() [3/3]

ecalStructureFiller::ecalStructureFiller ( const ecalStructureFiller &  )

private

Member Function Documentation

Exec()

void ecalStructureFiller::Exec ( Option_t *  option, TClonesArray *  litePoints  )

virtual

Executed task

Definition at line 142 of file ecalStructureFiller.cxx.

{
  fEvent++;
  fListECALpts=litePoints;
  if (fVerbose>0)
    cout << "--> Event no. " << fEvent;

  fStr->ResetModules();
  if (fUseMCPoints) LoopForMCPoints();

  if (fVerbose>0)
    cout << endl << flush;
}

Finish()

void ecalStructureFiller::Finish ( )

virtual

Finish task

Definition at line 159 of file ecalStructureFiller.cxx.

{
  ;
}

GetStoreTrackInformation()

Bool_t ecalStructureFiller::GetStoreTrackInformation ( ) const

inline

Definition at line 106 of file ecalStructureFiller.h.

{
  return fStoreTrackInfo;
}

GetStructure()

ecalStructure * ecalStructureFiller::GetStructure ( ) const

inline

Definition at line 111 of file ecalStructureFiller.h.

{
  return fStr;
}

GetUseHits()

Bool_t ecalStructureFiller::GetUseHits

(

)

const

GetUseMCPoints()

Bool_t ecalStructureFiller::GetUseMCPoints ( ) const

inline

Definition at line 95 of file ecalStructureFiller.h.

{
    return fUseMCPoints;
}

GetUseSummableHits()

Bool_t ecalStructureFiller::GetUseSummableHits

(

)

const

Init()

InitStatus ecalStructureFiller::Init ( )

virtual

Initialization of the task

Definition at line 62 of file ecalStructureFiller.cxx.

{
  fInited=kTRUE;
  FairRootManager* fManager = FairRootManager::Instance();

  if (fUseMCPoints==kFALSE)
  {
    Warning("Init()", "No data source for structure filler! Calorimeter structure will be empty.");
//    return kFATAL;
  }
  //ECAL MC points
  if (fUseMCPoints)
    fListECALpts = (TClonesArray*)fManager->GetObject("EcalPointLite");

  //fInf->CheckVariables();
  fStr=new ecalStructure(fInf);
  if (fStoreTrackInfo) fStr->SetUseMC(1);
  fStr->Construct();

  fManager->Register("EcalStructure", "ECAL", fStr, kFALSE);
  return kSUCCESS;
}

InitPython()

ecalStructure * ecalStructureFiller::InitPython

(

TClonesArray *

litePoints

)

Definition at line 87 of file ecalStructureFiller.cxx.

{
  fListECALpts=litePoints;

  //fInf->CheckVariables();
  fStr=new ecalStructure(fInf);
  if (fStoreTrackInfo) fStr->SetUseMC(1);
  fStr->Construct();

  return fStr;
}

LoopForMCPoints()

void ecalStructureFiller::LoopForMCPoints ( )

private

Loop over MCPoints

Loop over MCPoints hits and add them to cells

Definition at line 101 of file ecalStructureFiller.cxx.

{
  ecalPoint* pt;
  ecalCell* cell;
  Int_t ten;
  UInt_t n;
  Bool_t isPS;

  n=fListECALpts->GetEntriesFast();
  if (fVerbose>0)
  {
    cout << ". Number of input MC points: ";
    cout << n << flush;
  }

  for(UInt_t j=0; j<n; j++)
  {
    pt=(ecalPoint*)fListECALpts->At(j);
    cell=fStr->GetCell(pt->GetDetectorID(), ten, isPS);
    if (ten==0) {
      if (isPS)
        ; // cell->AddPSEnergy(pt->GetEnergyLoss()); preshower removed
      else
        cell->AddEnergy(pt->GetEnergyLoss());
    }
  }
  if (fStoreTrackInfo)
  for(UInt_t j=0; j<n; j++)
  {
    pt=(ecalPoint*)fListECALpts->At(j);
    ecalCellMC* cellmc=(ecalCellMC*)fStr->GetCell(pt->GetDetectorID(), ten, isPS);
    if (ten==0) {
      if (isPS)
        ; // cell->AddTrackPSEnergy(pt->GetTrackID(),pt->GetEnergyLoss()); //preshower removed
      else
        cellmc->AddTrackEnergy(pt->GetTrackID(),pt->GetEnergyLoss(), pt->GetTime());
    }
  }
}

operator=()

ecalStructureFiller & ecalStructureFiller::operator= ( const ecalStructureFiller &  )

private

SetParContainers()

void ecalStructureFiller::SetParContainers ( )

private

Init parameter containers

Definition at line 56 of file ecalStructureFiller.cxx.

{
  ;
}

SetUseMCPoints()

void ecalStructureFiller::SetUseMCPoints ( Bool_t  UseMCPoints )

inline

Set data source for hit producer. This must be called before Init() (No effect other case)!

Definition at line 89 of file ecalStructureFiller.h.

{
    if (fInited) return;
    fUseMCPoints=UseMCPoints;
}

StoreTrackInformation()

void ecalStructureFiller::StoreTrackInformation ( Bool_t  storetrackinfo = kTRUE )

inline

Definition at line 100 of file ecalStructureFiller.h.

{
  if (fInited) return;
  fStoreTrackInfo=storetrackinfo;
}

Member Data Documentation

fEvent

Int_t ecalStructureFiller::fEvent

private

Definition at line 70 of file ecalStructureFiller.h.

fFileGeo

TString ecalStructureFiller::fFileGeo

private

Geo file to use

Definition at line 80 of file ecalStructureFiller.h.

fInf

ecalInf* ecalStructureFiller::fInf

private

Definition at line 67 of file ecalStructureFiller.h.

fInited

Bool_t ecalStructureFiller::fInited

private

Internal event counter.

Is Init() already done?

Definition at line 73 of file ecalStructureFiller.h.

fListECALpts

TClonesArray* ecalStructureFiller::fListECALpts

private

Definition at line 69 of file ecalStructureFiller.h.

fStoreTrackInfo

Bool_t ecalStructureFiller::fStoreTrackInfo

private

Should we store information about tracks/energy depostion

Definition at line 78 of file ecalStructureFiller.h.

fStr

ecalStructure* ecalStructureFiller::fStr

private

Definition at line 66 of file ecalStructureFiller.h.

fUseMCPoints

Bool_t ecalStructureFiller::fUseMCPoints

private

Should we take data from MCPoints?

Definition at line 75 of file ecalStructureFiller.h.

---

The documentation for this class was generated from the following files:

• ecal/ecalStructureFiller.h
• ecal/ecalStructureFiller.cxx
