ecalReco Class Reference

#include <ecalReco.h>

Inheritance diagram for ecalReco:

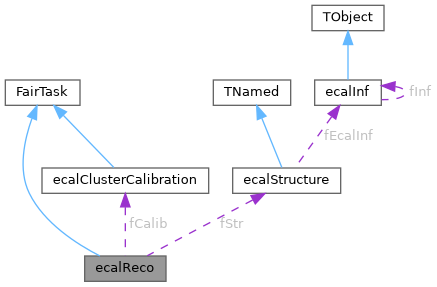

Collaboration diagram for ecalReco:

Public Member Functions
	ecalReco (const char *name, const Int_t verbose)
	ecalReco ()
virtual void	Finish ()
virtual void	Exec (Option_t *option)
virtual InitStatus	Init ()
TClonesArray *	InitPython (TClonesArray *clusters, ecalStructure *str, ecalClusterCalibration *calib)
	~ecalReco ()

Private Member Functions
void	ReconstructXY (ecalCell *max, Float_t &x, Float_t &y)
void	TryReconstruct (ecalCluster *cls, Int_t clsnum)

Private Attributes
Int_t	fEv
Int_t	fN
Int_t	fRejected
Int_t	fRejectedP
TClonesArray *	fClusters
TClonesArray *	fReconstucted
ecalStructure *	fStr
ecalClusterCalibration *	fCalib

Detailed Description

Definition at line 16 of file ecalReco.h.

Constructor & Destructor Documentation

ecalReco() [1/2]

ecalReco::ecalReco	(	const char *	name,
		const Int_t	verbose
	)

Standard constructor

Definition at line 229 of file ecalReco.cxx.

  : FairTask(name, verbose), fEv(0), fN(0), fRejected(0), fRejectedP(0),
    fClusters(NULL), fReconstucted(NULL), fStr(NULL), fCalib(NULL)
{
  ;
}

ecalReco() [2/2]

ecalReco::ecalReco

(

)

Only to comply with frame work.

Definition at line 237 of file ecalReco.cxx.

  : FairTask(), fEv(-1111), fN(0), fRejected(0), fRejectedP(0),
    fClusters(NULL), fReconstucted(NULL), fStr(NULL), fCalib(NULL)
{
  ;
}

~ecalReco()

ecalReco::~ecalReco

(

)

Destructor

Definition at line 251 of file ecalReco.cxx.

{
  if (fReconstucted)
  {
    fReconstucted->Delete();
    delete fReconstucted;
  }
}

Member Function Documentation

Exec()

void ecalReco::Exec ( Option_t *  option )

virtual

Exec a task

Definition at line 16 of file ecalReco.cxx.

{
  fEv++; fN=0; fRejected=0; fRejectedP=0;
//  if (fVerbose>0) Info("Exec", "Event %d.", fEv);

  fReconstucted->Delete();

  Int_t i;
  Int_t nc=fClusters->GetEntriesFast();
  ecalCluster* cls;
  ecalReconstructed* reco;
  Float_t x;
  Float_t y;
  ecalCell* maxs[40];       //maximums of the cluster
  Float_t e3[40];       //energy in 3x3 area near the maximum
  list<ecalCell*> lists[40];    //lists of 5x5-3x3 clusters near the maximum
  Int_t n;
  Int_t j;
  Int_t k;
  list<ecalCell*> cells;
  list<ecalCell*> cells2;
  list<ecalCell*>::const_iterator p;
  list<ecalCell*>::const_iterator p2;
  Float_t rawE;
  Float_t ourE;
  Float_t allE;
  ecalCell* tcell;

  for(i=0;i<nc;i++)
  {
    cls=(ecalCluster*)fClusters->At(i);
    // Clusters with single maximum. Separate code for speedup
    if (cls->Maxs()==1)
    {
      ReconstructXY(fStr->GetHitCell(cls->PeakNum(0)), x, y);
      reco=new ((*fReconstucted)[fN++]) ecalReconstructed(cls->Energy(), cls->PreCalibrated(), x, y, cls->PeakNum(0), i);
      cls->SetStatus(1);
      continue;
    }
    TryReconstruct(cls, i);
/*
    //Multimaximum case
    n=cls->Maxs();
    for(j=0;j<n;j++)
    {
      maxs[j]=fStr->GetHitCell(cls->PeakNum(j));
      e3[j]=maxs[j]->GetEnergy();
      lists[j].clear();
      maxs[j]->GetNeighborsList(cells);
      for(p=cells.begin();p!=cells.end();++p)
      {
    e3[j]+=(*p)->GetEnergy();
    for(k=0;k<j-1;k++)
    {
      tcell=fStr->GetHitCell(cls->PeakNum(k));
          tcell->GetNeighborsList(cells2);
      // Have an intersection between 3x3 areas near maximum
      if (find(cells2.begin(), cells2.end(), *p)!=cells2.end()) break;
    }
    if (j!=0&&k!=j-1) break;

    //form 5x5-3x3
    (*p)->GetNeighborsList(cells2);
        for(p2=cells2.begin();p2!=cells2.end();++p2)
    {
      if (*p2==maxs[j])
        continue;   //exclude maximum
      if (find(cells.begin(), cells.end(), *p2)!=cells.end())
        continue;   //exclude 3x3 area
      if (find(lists[j].begin(), lists[j].end(), *p2)==lists[j].end())
        lists[j].push_back(*p2);
    }
      }
      if (p!=cells.end()) break;
    }
    if (j!=n)
    {
      cls->SetStatus(-1);
      fRejected++; fRejectedP+=cls->Maxs();
      if (fVerbose>9)
    Info("Exec", "Cluster %d with %d maximums rejected", i, n);
      continue;
    }
    //Second pass. Reconstruction
    for(j=0;j<n;j++)
    {
      ReconstructXY(maxs[j], x, y);
      rawE=ourE=e3[j];
      for(p=lists[j].begin();p!=lists[j].end();++p)
      {
    allE=ourE;
    for(k=0;k<n;k++)
    {
      if (k==j) continue;
      maxs[k]->Get5x5Cluster(cells2);
      if (find(cells2.begin(), cells2.end(), *p)!=cells2.end()) allE+=e3[k];
    }
    rawE+=(*p)->GetEnergy()*ourE/allE;
      }
      reco=new ((*fReconstucted)[fN++]) ecalReconstructed(rawE, fCalib->Calibrate(maxs[j]->GetType(), rawE), x, y, cls->PeakNum(j), i);
    }
    cls->SetStatus(1);
*/
  }
  if (fVerbose>0) Info("Exec", "Event %d. Good %d. Bad %d cls, %d maxs.", fEv, fN, fRejected, fRejectedP);
}

Finish()

void ecalReco::Finish ( )

virtual

Finish a task

Definition at line 245 of file ecalReco.cxx.

{
  ;
}

Init()

InitStatus ecalReco::Init ( )

virtual

Initialization

Definition at line 260 of file ecalReco.cxx.

{
  FairRootManager* io=FairRootManager::Instance();
  if (!io)
  {
    Fatal("Init", "Can't find IOManager.");
    return kFATAL;
  }
  fStr=(ecalStructure*)io->GetObject("EcalStructure");
  if (!fStr)
  {
    Fatal("Init()", "Can't find calorimeter structure in the system.");
    return kFATAL;
  }
  fCalib=(ecalClusterCalibration*)io->GetObject("ecalClusterCalibration");
  if (!fCalib)
  {
    Fatal("Init", "Can't find ecalClusterCalibration in the system.");
    return kFATAL;
  }
  fClusters=(TClonesArray*)io->GetObject("EcalClusters");
  if (!fClusters)
  {
    Fatal("Init()", "Can't find calorimeter clusters in the system.");
    return kFATAL;
  }

  fReconstucted=new TClonesArray("ecalReconstructed", 2000);
  io->Register("EcalReco", "ECAL", fReconstucted, kTRUE);

  fEv=0;
  return kSUCCESS;
}

InitPython()

TClonesArray * ecalReco::InitPython	(	TClonesArray *	clusters,
		ecalStructure *	str,
		ecalClusterCalibration *	calib
	)

Definition at line 294 of file ecalReco.cxx.

{
  fStr=str;
  fCalib=calib;
  fClusters=clusters;
  fReconstucted=new TClonesArray("ecalReconstructed", 2000);

  fEv=0;
  return fReconstucted;
}

ReconstructXY()

void ecalReco::ReconstructXY ( ecalCell *  max, Float_t &  x, Float_t &  y  )

private

Definition at line 208 of file ecalReco.cxx.

{
  // Now use just center of gravity
  Float_t e=max->GetEnergy();
  list<ecalCell*> cls;
  list<ecalCell*>::const_iterator p;

  x=max->GetCenterX()*max->GetEnergy();
  y=max->GetCenterY()*max->GetEnergy();
  max->GetNeighborsList(cls);
  for(p=cls.begin();p!=cls.end();++p)
  {
    x+=(*p)->GetCenterX()*(*p)->GetEnergy();
    y+=(*p)->GetCenterY()*(*p)->GetEnergy();
    e+=(*p)->GetEnergy();
  }
  x/=e; y/=e;
//  cout << x << ", " << y << " : " << max->GetCenterX() << ", " << max->GetCenterY() << endl;
}

TryReconstruct()

void ecalReco::TryReconstruct ( ecalCluster *  cls, Int_t  clsnum  )

private

Definition at line 123 of file ecalReco.cxx.

{
  Int_t n=cls->Maxs();
  Int_t i;
  Int_t k;
  ecalCell* maxs[40];       //maximums of the cluster
  Float_t e3[40];       //energy in 3x3 area near the maximum
  list<ecalCell*> lists[40];    //lists of 5x5-3x3 areas near maximum
  Int_t isgood[40];     //good maximum (no intersection of 3x3 areas)
  Int_t rejected=0;
  list<ecalCell*> cells;
  list<ecalCell*> cells2;
  list<ecalCell*>::const_iterator p;
  list<ecalCell*>::const_iterator p2;
  ecalReconstructed* reco;
  Float_t rawE;
  Float_t ourE;
  Float_t allE;
  ecalCell* tcell;
  Float_t x;
  Float_t y;

  for(i=0;i<n;i++)
  {
    maxs[i]=fStr->GetHitCell(cls->PeakNum(i));
    e3[i]=maxs[i]->GetEnergy();
    lists[i].clear();
    isgood[i]=1;
    maxs[i]->GetNeighborsList(cells);
    for(p=cells.begin();p!=cells.end();++p)
    {
      e3[i]+=(*p)->GetEnergy();
      for(k=0;k<i-1;k++)
      {
    tcell=fStr->GetHitCell(cls->PeakNum(k));
    tcell->GetNeighborsList(cells2);
    // Have an intersection between 3x3 areas near maximum
    if (find(cells2.begin(), cells2.end(), *p)!=cells2.end()) isgood[i]--;
      }
      //form 5x5-3x3
      (*p)->GetNeighborsList(cells2);
      for(p2=cells2.begin();p2!=cells2.end();++p2)
      {
    if (*p2==maxs[i])
      continue; //exclude maximum
    if (find(cells.begin(), cells.end(), *p2)!=cells.end())
      continue; //exclude 3x3 area
    if (find(lists[i].begin(), lists[i].end(), *p2)==lists[i].end())
      lists[i].push_back(*p2);
      }
    }
    if (p!=cells.end()) break;
  }

  //Second pass. Reconstruction
  for(i=0;i<n;i++)
  {
    if (isgood[i]!=1)
    {
      rejected++; fRejectedP++;
      continue;
    }
    ReconstructXY(maxs[i], x, y);
    rawE=ourE=e3[i];
    for(p=lists[i].begin();p!=lists[i].end();++p)
    {
      allE=ourE;
      for(k=0;k<n;k++)
      {
    if (k==i) continue;
    maxs[k]->Get5x5Cluster(cells2);
    if (find(cells2.begin(), cells2.end(), *p)!=cells2.end()) allE+=e3[k];
      }
      rawE+=(*p)->GetEnergy()*ourE/allE;
    }
    reco=new ((*fReconstucted)[fN++]) ecalReconstructed(rawE, fCalib->Calibrate(maxs[i]->GetType(), rawE), x, y, cls->PeakNum(i), clsnum);
  }
  cls->SetStatus(1);
  if (rejected>0)
  {
    cls->SetStatus(-rejected);
    fRejected++;
  }
}

Member Data Documentation

fCalib

ecalClusterCalibration* ecalReco::fCalib

private

Cluster calibration object for photons

Definition at line 52 of file ecalReco.h.

fClusters

TClonesArray* ecalReco::fClusters

private

An array of clusters

Definition at line 46 of file ecalReco.h.

fEv

Int_t ecalReco::fEv

private

Current event

Definition at line 37 of file ecalReco.h.

fN

Int_t ecalReco::fN

private

Current reconstructed particle

Definition at line 39 of file ecalReco.h.

fReconstucted

TClonesArray* ecalReco::fReconstucted

private

Array of reconstructed objects

Definition at line 48 of file ecalReco.h.

fRejected

Int_t ecalReco::fRejected

private

Number of rejected clusters

Definition at line 41 of file ecalReco.h.

fRejectedP

Int_t ecalReco::fRejectedP

private

Number of maximums in rejected clusters

Definition at line 43 of file ecalReco.h.

fStr

ecalStructure* ecalReco::fStr

private

A calorimeter structure

Definition at line 50 of file ecalReco.h.

---

The documentation for this class was generated from the following files:

• ecal/ecalReco.h
• ecal/ecalReco.cxx
