ecalMaximumLocator Class Reference

#include <ecalMaximumLocator.h>

Inheritance diagram for ecalMaximumLocator:

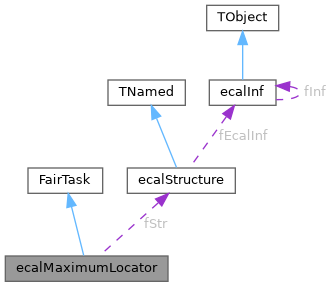

Collaboration diagram for ecalMaximumLocator:

Public Member Functions
	ecalMaximumLocator ()
	ecalMaximumLocator (const char *name, Int_t verbose)
virtual void	Exec (const Option_t *option)
virtual InitStatus	Init ()
TClonesArray *	InitPython (ecalStructure *structure)
virtual void	Finish ()
	~ecalMaximumLocator ()
Double_t	ECut () const
void	SetECut (Double_t ecut=0.005)

Private Member Functions
	ecalMaximumLocator (const ecalMaximumLocator &)
ecalMaximumLocator &	operator= (const ecalMaximumLocator &)
	ClassDef (ecalMaximumLocator, 1)

Private Attributes
TClonesArray *	fMaximums
ecalStructure *	fStr
Double_t	fECut
Int_t	fEvent

Detailed Description

Definition at line 10 of file ecalMaximumLocator.h.

Constructor & Destructor Documentation

ecalMaximumLocator() [1/3]

ecalMaximumLocator::ecalMaximumLocator

(

)

An empty constructor

Definition at line 17 of file ecalMaximumLocator.cxx.

  : FairTask(),
    fMaximums(NULL),
    fStr(NULL),
    fECut(0.015),
    fEvent(-1)
{
}

ecalMaximumLocator() [2/3]

ecalMaximumLocator::ecalMaximumLocator	(	const char *	name,
		Int_t	verbose
	)

Definition at line 26 of file ecalMaximumLocator.cxx.

  : FairTask(name, verbose),
    fMaximums(NULL),
    fStr(NULL),
    fECut(0.015),
    fEvent(-1)
{
}

~ecalMaximumLocator()

ecalMaximumLocator::~ecalMaximumLocator

(

)

Definition at line 35 of file ecalMaximumLocator.cxx.

{
  if (fMaximums)
    delete fMaximums;
}

ecalMaximumLocator() [3/3]

ecalMaximumLocator::ecalMaximumLocator ( const ecalMaximumLocator &  )

private

Member Function Documentation

ClassDef()

ecalMaximumLocator::ClassDef ( ecalMaximumLocator  , 1    )

private

ECut()

Double_t ecalMaximumLocator::ECut ( ) const

inline

Definition at line 22 of file ecalMaximumLocator.h.

{return fECut;}

Exec()

void ecalMaximumLocator::Exec ( const Option_t *  option )

virtual

Definition at line 73 of file ecalMaximumLocator.cxx.

{
  list<ecalCell*> all;
  list<ecalCell*> cells;
  list<ecalCell*>::const_iterator p;
  list<ecalCell*>::const_iterator r;
  Double_t e;
  Double_t z=fStr->GetEcalInf()->GetZPos();
  Double_t r1;
  Double_t r2;
  Double_t t;
  Int_t n=0;

  fEvent++;
  fMaximums->Clear();
  fStr->GetCells(all);
  for(p=all.begin();p!=all.end();++p)
  {
    e=(*p)->GetEnergy();
    r1=(*p)->GetCenterX(); r1*=r1;
    t=(*p)->GetCenterY(); t*=t;
    r1=TMath::Sqrt(r1*r1+t*t);
    if (e<fECut)
      continue;
    (*p)->GetNeighborsList(cells);
    for(r=cells.begin();r!=cells.end();++r)
    {
      if ((*r)->GetEnergy()<e) continue;
      if ((*r)->GetEnergy()==e)
      {
        r2=(*r)->GetCenterX(); r2*=r2;
        t=(*r)->GetCenterY(); t*=t;
        r2=TMath::Sqrt(r2*r2+t*t);
    if (r1>=r2) continue;
      }
      break;
    }
    if (r!=cells.end())
      continue;
//    cout << e << " : " << (*p)->GetCenterX() << ", " << (*p)->GetCenterY() << endl;
    new ((*fMaximums)[n++]) ecalMaximum(*p, z);
  }
  if (fVerbose>9)
    Info("Exec", "%d maximums found", n);
}

Finish()

void ecalMaximumLocator::Finish ( )

virtual

Definition at line 68 of file ecalMaximumLocator.cxx.

{
  fMaximums->Clear();
}

Init()

InitStatus ecalMaximumLocator::Init ( )

virtual

Definition at line 41 of file ecalMaximumLocator.cxx.

{
  FairRootManager* fManager=FairRootManager::Instance();
  if (!fManager)
  {
    Fatal("Init", "Can't find a Root Manager.");
    return kFATAL;
  }
  fStr=(ecalStructure*)fManager->GetObject("EcalStructure");
  if (!fStr)
  {
    Fatal("Init()", "Can't find calorimeter structure in the system.");
    return kFATAL;
  }
  fMaximums=new TClonesArray("ecalMaximum", 3000);
  fManager->Register("EcalMaximums", "ECAL", fMaximums, kFALSE);
  fEvent=0;
  return kSUCCESS;
}

InitPython()

TClonesArray * ecalMaximumLocator::InitPython

(

ecalStructure *

structure

)

Definition at line 61 of file ecalMaximumLocator.cxx.

{
  fStr=structure;
  fMaximums=new TClonesArray("ecalMaximum", 3000);
  return fMaximums;
}

operator=()

ecalMaximumLocator & ecalMaximumLocator::operator= ( const ecalMaximumLocator &  )

private

SetECut()

void ecalMaximumLocator::SetECut ( Double_t  ecut = 0.005 )

inline

Definition at line 23 of file ecalMaximumLocator.h.

{fECut=ecut;}

Member Data Documentation

fECut

Double_t ecalMaximumLocator::fECut

private

energy cut on energy of maximum

Definition at line 30 of file ecalMaximumLocator.h.

fEvent

Int_t ecalMaximumLocator::fEvent

private

Current event

Definition at line 32 of file ecalMaximumLocator.h.

fMaximums

TClonesArray* ecalMaximumLocator::fMaximums

private

Array of found maximums

Definition at line 26 of file ecalMaximumLocator.h.

fStr

ecalStructure* ecalMaximumLocator::fStr

private

A calorimeter structure

Definition at line 28 of file ecalMaximumLocator.h.

---

The documentation for this class was generated from the following files:

• ecal/ecalMaximumLocator.h
• ecal/ecalMaximumLocator.cxx
