ecalDigi Class Reference

#include <ecalDigi.h>

Inheritance diagram for ecalDigi:

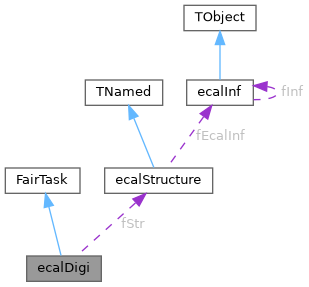

Collaboration diagram for ecalDigi:

Public Member Functions
	ecalDigi ()
	ecalDigi (const char *name, Int_t iVerbose)
virtual	~ecalDigi ()
virtual InitStatus	Init ()
void	InitPython (ecalStructure *structure)
virtual void	Exec (Option_t *option)
virtual void	Finish ()
void	SetPedestal (Short_t ped=80)
void	SetADCMax (Short_t adcmax=16384)
void	SetADCNoise (Float_t adcnoise=1.0e-3)
void	SetADCChannel (Float_t adcchannel=1.0e-3)
void	SetChannelMap (std::map< Int_t, Float_t > map)
void	LoadChannelMap (const char *filename)
Short_t	GetPedestal () const
Short_t	GetADCMax () const
Float_t	GetADCNoise () const
Float_t	GetADCChannel () const

Private Member Functions
	ecalDigi (const ecalDigi &)
	Map: channel number -> ADC channel in GeV.
ecalDigi &	operator= (const ecalDigi &)
	ClassDef (ecalDigi, 1)

Private Attributes
Short_t	fPedestal
Short_t	fADCMax
Float_t	fADCNoise
Float_t	fADCChannel
ecalStructure *	fStr
std::map< Int_t, Float_t >	fChannelMap

Detailed Description

Definition at line 13 of file ecalDigi.h.

Constructor & Destructor Documentation

ecalDigi() [1/3]

ecalDigi::ecalDigi

(

)

Default constructor

— Default constructor ------------------------------------------------—

Definition at line 18 of file ecalDigi.cxx.

  : FairTask(),
    fPedestal(80),
    fADCMax(16384),
    fADCNoise(1.0e-3),
    fADCChannel(1.0e-3),
    fStr(NULL), fChannelMap()
{
  fChannelMap.clear();
}

ecalDigi() [2/3]

ecalDigi::ecalDigi	(	const char *	name,
		Int_t	iVerbose
	)

Standard constructor. Use this

— Standard constructor. Use this -------------------------------------—

Definition at line 30 of file ecalDigi.cxx.

  : FairTask(name, iVerbose),
    fPedestal(80),
    fADCMax(16384),
    fADCChannel(1.0e-3),
    fADCNoise(1.0e-3),
    fStr(NULL), fChannelMap()
{
  fChannelMap.clear();
}

~ecalDigi()

ecalDigi::~ecalDigi ( )

virtual

Destructor

— Destructor ---------------------------------------------------------—

Definition at line 127 of file ecalDigi.cxx.

{
  ;
}

ecalDigi() [3/3]

ecalDigi::ecalDigi ( const ecalDigi &  )

private

Map: channel number -> ADC channel in GeV.

Member Function Documentation

ClassDef()

ecalDigi::ClassDef ( ecalDigi  , 1    )

private

Exec()

void ecalDigi::Exec ( Option_t *  option )

virtual

Executed task

— Executed task ------------------------------------------------------—

Definition at line 91 of file ecalDigi.cxx.

{
  ecalCell* cell;
  list<ecalCell*> cells;
  fStr->GetCells(cells);
  list<ecalCell*>::const_iterator p=cells.begin();
  Short_t adc;

  for(;p!=cells.end();++p)
  {
    cell=(*p);
    if (fChannelMap.empty())
      adc=(Short_t)(gRandom->Gaus(cell->GetEnergy(), fADCNoise)/fADCChannel+fPedestal);
    else
    if (fChannelMap.find(cell->GetCellNumber())==fChannelMap.end())
    {
      Error("Exec", "Channel %d not found in map. Using default value!", cell->GetCellNumber());
      //TODO: Should we insert Fatal here?
      adc=(Short_t)(gRandom->Gaus(cell->GetEnergy(), fADCNoise)/fADCChannel+fPedestal);
    }
    else
    {
      adc=(Short_t)(gRandom->Gaus(cell->GetEnergy(), fADCNoise)/fChannelMap[cell->GetCellNumber()]+fPedestal);
    }
    if (adc>fADCMax) adc=fADCMax;
    cell->SetEnergy(-1111);
    cell->SetADC(adc);
  }
}

Finish()

void ecalDigi::Finish ( )

virtual

Finish task

— Finish task --------------------------------------------------------—

Definition at line 122 of file ecalDigi.cxx.

{
  ;
}

GetADCChannel()

Float_t ecalDigi::GetADCChannel ( ) const

inline

Definition at line 44 of file ecalDigi.h.

{return fADCChannel;}

GetADCMax()

Short_t ecalDigi::GetADCMax ( ) const

inline

Definition at line 42 of file ecalDigi.h.

{return fADCMax;}

GetADCNoise()

Float_t ecalDigi::GetADCNoise ( ) const

inline

Definition at line 43 of file ecalDigi.h.

{return fADCNoise;}

GetPedestal()

Short_t ecalDigi::GetPedestal ( ) const

inline

Definition at line 41 of file ecalDigi.h.

{return fPedestal;}

Init()

InitStatus ecalDigi::Init ( )

virtual

Initialization of the task

— Initialization of the task -----------------------------------------—

Definition at line 66 of file ecalDigi.cxx.

{
  FairRootManager* manager=FairRootManager::Instance();
  if (!manager)
  {
    Fatal("Init()", "Can't find IOManager.");
    return kFATAL;
  }

  fStr=(ecalStructure*)manager->GetObject("EcalStructure");
  if (!fStr)
  {
    Fatal("Init()", "Can't find calorimeter structure in the system.");
    return kFATAL;
  }

  return kSUCCESS;
}

InitPython()

void ecalDigi::InitPython

(

ecalStructure *

structure

)

Definition at line 85 of file ecalDigi.cxx.

{
  fStr=structure;
}

LoadChannelMap()

void ecalDigi::LoadChannelMap

(

const char *

filename

)

— Ugly load of map channel number -> ADC channel from the file -------—

Definition at line 42 of file ecalDigi.cxx.

{
  map<Int_t, Float_t> tmp;
  TString fname=filename;   gSystem->ExpandPathName(fname);
  ifstream f(fname);
  Int_t ch;
  Int_t i=0;
  Float_t adc;

  tmp.clear();
  for(;;)
  {
    f >> ch; if (f.eof()) break;
    f >> adc; if (f.eof()) break;
    tmp[ch]=adc;
    i++;
  }
  if (fVerbose>999)
    Info("LoadChannelMap", "%d records read", i);
  f.close();
  SetChannelMap(tmp);
}

operator=()

ecalDigi & ecalDigi::operator= ( const ecalDigi &  )

private

SetADCChannel()

void ecalDigi::SetADCChannel ( Float_t  adcchannel = 1.0e-3 )

inline

Definition at line 34 of file ecalDigi.h.

{fADCChannel=adcchannel;}

SetADCMax()

void ecalDigi::SetADCMax ( Short_t  adcmax = 16384 )

inline

Definition at line 32 of file ecalDigi.h.

{fADCMax=adcmax;}

SetADCNoise()

void ecalDigi::SetADCNoise ( Float_t  adcnoise = 1.0e-3 )

inline

Definition at line 33 of file ecalDigi.h.

{fADCNoise=adcnoise;}

SetChannelMap()

void ecalDigi::SetChannelMap ( std::map< Int_t, Float_t >  map )

inline

Definition at line 37 of file ecalDigi.h.

{fChannelMap=map;}

SetPedestal()

void ecalDigi::SetPedestal ( Short_t  ped = 80 )

inline

Definition at line 31 of file ecalDigi.h.

{fPedestal=ped;}

Member Data Documentation

fADCChannel

Float_t ecalDigi::fADCChannel

private

Definition at line 53 of file ecalDigi.h.

fADCMax

Short_t ecalDigi::fADCMax

private

Definition at line 49 of file ecalDigi.h.

fADCNoise

Float_t ecalDigi::fADCNoise

private

Definition at line 51 of file ecalDigi.h.

fChannelMap

std::map<Int_t, Float_t> ecalDigi::fChannelMap

private

Definition at line 58 of file ecalDigi.h.

fPedestal

Short_t ecalDigi::fPedestal

private

Definition at line 47 of file ecalDigi.h.

fStr

ecalStructure* ecalDigi::fStr

private

Definition at line 55 of file ecalDigi.h.

---

The documentation for this class was generated from the following files:

• ecal/ecalDigi.h
• ecal/ecalDigi.cxx
