Conditions Database Interface definition. More...

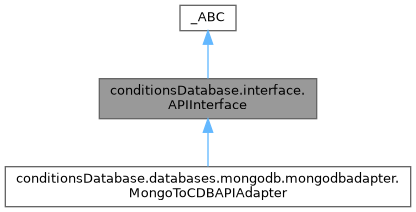

Inheritance diagram for conditionsDatabase.interface.APIInterface:

[legend]

Collaboration diagram for conditionsDatabase.interface.APIInterface:

Public Member Functions
	list_detectors (self, parent_id=None)
	Returns a list with all the detector names in the database.

	get_detector (self, detector_id)
	Returns a detector dictionary.

	add_detector (self, name, parent_id=None)
	Adds a new detector to the database.

	remove_detector (self, detector_id)
	Removes a detector from the database.

	add_condition (self, detector_id, name, tag, values, type=None, collected_at=datetime.now(), valid_since=datetime.now(), valid_until=datetime.max)
	Adds a condition to a detector.

	get_conditions (self, detector_id)
	Returns a list with all condition dictionaries associated with a detector.

	get_conditions_by_name (self, detector_id, name)
	Returns a list with condition dictionaries having a specific name for a given detector.

	get_conditions_by_tag (self, detector_id, tag)
	Returns a list with condition dictionaries having a specific tag for a given detector.

	get_conditions_by_name_and_validity (self, detector_id, name, start_date, end_date=None)
	Returns a list with condition dictionaries associated with a detector that are valid on the specified date.

	get_condition_by_name_and_tag (self, detector_id, name, tag)
	Returns a condition dictionary of a specific condition belonging to a detector, identified by condition name and tag.

	get_condition_by_name_and_collection_date (self, detector_id, name, collected_at)
	Returns a condition dictionary of a specific condition belonging to a detector, identified by condition name and collection date/time.

	update_condition_by_name_and_tag (self, detector_id, name, tag, type=None, valid_since=None, valid_until=None)
	Updates the type, valid_since and valid_until values of a specific condition belonging to a detector, identified by condition name and tag.

Detailed Description

Conditions Database Interface definition.

This class defines the interface that all storage back-end adapters must implement. TODO uncomment for python >= 3.8: @final

Definition at line 24 of file interface.py.

Member Function Documentation

◆ add_condition()

conditionsDatabase.interface.APIInterface.add_condition	(	self,
		detector_id,
		name,
		tag,
		values,
		type = `None`,
		collected_at = `datetime.now()`,
		valid_since = `datetime.now()`,
		valid_until = `datetime.max`
	)

Adds a condition to a detector.

Parameters

detector_id	String identifying the detector to which the condition will be added (i.e. 'muonflux/driftTubes').
name	String specifying the name of the condition (e.g. 'strawPositions').
tag	String specifying a tag for the condition. Must be unique for the same condition name.
values	The values of the condition. Can be any data type.
type	(optional) String specifying the type of condition (e.g. 'calibration').
collected_at	(optional) Timestamp specifying the date/time the condition was acquired. Must be unique w.r.t. the condition name. Can be of type String or datetime. This timestamp will be stored with an accuracy up to seconds. If unspecified, this value will be set to 'datetime.now'.
valid_since	(optional) Timestamp specifying the date/time as of when the condition is valid. Can be of type String or datetime. This timestamp will be stored with an accuracy up to seconds. If unspecified, this value will be set to 'datetime.now'.
valid_until	(optional) Timestamp specifying the date/time up until the condition is valid. Can be of type String or datetime. If unspecified, this value will be set to 'datetime.max'. This timestamp will be stored with an accuracy up to seconds.

Exceptions

TypeError	If input type is not as specified.
ValueError	If detector_id does not exist.

Reimplemented in conditionsDatabase.databases.mongodb.mongodbadapter.MongoToCDBAPIAdapter.

Definition at line 94 of file interface.py.

                      valid_until=datetime.max):
        pass


◆ add_detector()

conditionsDatabase.interface.APIInterface.add_detector	(	self,
		name,
		parent_id = `None`
	)

Adds a new detector to the database.

Parameters

name	String specifying the name for the new detector. Must be unique. Must not contain a forward slash (i.e. /).
parent_id	(optional) String identifying the parent detector the new detector should be added to as subdetector.

Exceptions

TypeError	If input type is not as specified.
ValueError	If parent_id does not exist.

Reimplemented in conditionsDatabase.databases.mongodb.mongodbadapter.MongoToCDBAPIAdapter.

Definition at line 57 of file interface.py.

    def add_detector(self, name, parent_id=None):
        pass


◆ get_condition_by_name_and_collection_date()

conditionsDatabase.interface.APIInterface.get_condition_by_name_and_collection_date	(	self,
		detector_id,
		name,
		collected_at
	)

Returns a condition dictionary of a specific condition belonging to a detector, identified by condition name and collection date/time.

This combination must be unique.

Parameters

detector_id	String identifying the detector for which the condition must be retrieved (i.e. 'muonflux/driftTubes').
name	String specifying the name of the conditions to be retrieved (e.g. 'strawPositions').
collected_at	Timestamp specifying the moment on which the condition was collected/measured. Can be of type String or datetime. Collection dates are stored with accuracy up to seconds.

Exceptions

TypeError	If input type is not as specified.
ValueError	If detector_id does not exist.

Return values

Dict	A dictionary adhering to the following specification: Condition = { 'name': String, 'tag': String, 'type': String, 'collected_at': datetime, 'valid_since': datetime, 'valid_until': datetime, 'values': mixed }

Reimplemented in conditionsDatabase.databases.mongodb.mongodbadapter.MongoToCDBAPIAdapter.

Definition at line 202 of file interface.py.

    def get_condition_by_name_and_collection_date(self, detector_id, name, collected_at):
        pass


◆ get_condition_by_name_and_tag()

conditionsDatabase.interface.APIInterface.get_condition_by_name_and_tag	(	self,
		detector_id,
		name,
		tag
	)

Returns a condition dictionary of a specific condition belonging to a detector, identified by condition name and tag.

This combination must be unique.

Parameters

detector_id	String identifying the detector for which the condition must be retrieved (i.e. 'muonflux/driftTubes').
name	String specifying the name of the conditions to be retrieved (e.g. 'strawPositions').
tag	String specifying the tag of the condition to be retrieved.

Exceptions

TypeError	If input type is not as specified.
ValueError	If detector_id does not exist.

Return values

Dict	A dictionary adhering to the following specification: Condition = { 'name': String, 'tag': String, 'type': String, 'collected_at': datetime, 'valid_since': datetime, 'valid_until': datetime, 'values': mixed }

Reimplemented in conditionsDatabase.databases.mongodb.mongodbadapter.MongoToCDBAPIAdapter.

Definition at line 182 of file interface.py.

    def get_condition_by_name_and_tag(self, detector_id, name, tag):
        pass


◆ get_conditions()

conditionsDatabase.interface.APIInterface.get_conditions	(	self,
		detector_id
	)

Returns a list with all condition dictionaries associated with a detector.

Parameters

detector_id String identifying the detector for which the conditions must be retrieved (i.e. 'muonflux/driftTubes').

Exceptions

TypeError	If input type is not as specified.
ValueError	If detector_id does not exist.

Return values

List	A list with condition dictionaries adhering to the following specification: Condition = { 'name': String, 'tag': String, 'type': String, 'collected_at': datetime, 'valid_since': datetime, 'valid_until': datetime, 'values': mixed }

Reimplemented in conditionsDatabase.databases.mongodb.mongodbadapter.MongoToCDBAPIAdapter.

Definition at line 110 of file interface.py.

    def get_conditions(self, detector_id):
        pass


◆ get_conditions_by_name()

conditionsDatabase.interface.APIInterface.get_conditions_by_name	(	self,
		detector_id,
		name
	)

Returns a list with condition dictionaries having a specific name for a given detector.

Parameters

detector_id	String identifying the detector for which the conditions must be retrieved (i.e. 'muonflux/driftTubes').
name	String specifying the name of the conditions to be retrieved (e.g. 'strawPositions').

Exceptions

TypeError	If input type is not as specified.
ValueError	If detector_id does not exist.

Return values

List	A list with condition dictionaries adhering to the following specification: Condition = { 'name': String, 'tag': String, 'type': String, 'collected_at': datetime, 'valid_since': datetime, 'valid_until': datetime, 'values': mixed }

Reimplemented in conditionsDatabase.databases.mongodb.mongodbadapter.MongoToCDBAPIAdapter.

Definition at line 126 of file interface.py.

    def get_conditions_by_name(self, detector_id, name):
        pass


◆ get_conditions_by_name_and_validity()

conditionsDatabase.interface.APIInterface.get_conditions_by_name_and_validity	(	self,
		detector_id,
		name,
		start_date,
		end_date = `None`
	)

Returns a list with condition dictionaries associated with a detector that are valid on the specified date.

Parameters

detector_id	String identifying the detector for which the condition must be retrieved (i.e. 'muonflux/driftTubes').
name	String specifying the name of the conditions to be retrieved (e.g. 'strawPositions').
start_date	Timestamp specifying a start of a date/time range for which conditions must be valid. Can be of type String or datetime.
end_date	(optional) Timestamp specifying the end of a date/time range for which conditions must be valid. If not specified then we will query for validity on the start_date. Can be of type String or datetime

Exceptions

TypeError	If input type is not as specified.
ValueError	If detector_id does not exist.

Return values

List	A list with condition dictionaries adhering to the following specification: Condition = { 'name': String, 'tag': String, 'type': String, 'collected_at': datetime, 'valid_since': datetime, 'valid_until': datetime, 'values': mixed }

Reimplemented in conditionsDatabase.databases.mongodb.mongodbadapter.MongoToCDBAPIAdapter.

Definition at line 165 of file interface.py.

    def get_conditions_by_name_and_validity(self, detector_id, name, start_date, end_date=None):
        pass


◆ get_conditions_by_tag()

conditionsDatabase.interface.APIInterface.get_conditions_by_tag	(	self,
		detector_id,
		tag
	)

Returns a list with condition dictionaries having a specific tag for a given detector.

Parameters

detector_id	String identifying the detector for which the condition must be retrieved (i.e. 'muonflux/driftTubes').
tag	String specifying the tag of the condition to be retrieved.

Exceptions

TypeError	If input type is not as specified.
ValueError	If detector_id does not exist.

Return values

List	A list with condition dictionaries adhering to the following specification: Condition = { 'name': String, 'tag': String, 'type': String, 'collected_at': datetime, 'valid_since': datetime, 'valid_until': datetime, 'values': mixed }

Reimplemented in conditionsDatabase.databases.mongodb.mongodbadapter.MongoToCDBAPIAdapter.

Definition at line 141 of file interface.py.

    def get_conditions_by_tag(self, detector_id, tag):
        pass


◆ get_detector()

conditionsDatabase.interface.APIInterface.get_detector	(	self,
		detector_id
	)

Returns a detector dictionary.

Parameters

detector_id String identifying the detector to retrieve (i.e. 'muonflux/driftTubes').

Exceptions

TypeError	If input type is not as specified.
ValueError	If detector_id does not exist.

Return values

Dict	A dictionary adhering to the following specification: Detector = { 'name': String, 'subdetectors': List of Detector, 'conditions': List of Condition }

Reimplemented in conditionsDatabase.databases.mongodb.mongodbadapter.MongoToCDBAPIAdapter.

Definition at line 46 of file interface.py.

    def get_detector(self, detector_id):
        pass


◆ list_detectors()

conditionsDatabase.interface.APIInterface.list_detectors	(	self,
		parent_id = `None`
	)

Returns a list with all the detector names in the database.

Parameters

detector_id (optional) String identifying the parent detector to retrieve the (sub)detector names for (i.e. 'muonflux/driftTubes').

Exceptions

TypeError	If input type is not as specified.
ValueError	If parent_id does not exist.

Return values

List	A list with (string) names of detectors under the specified parent.

Reimplemented in conditionsDatabase.databases.mongodb.mongodbadapter.MongoToCDBAPIAdapter.

Definition at line 34 of file interface.py.

    def list_detectors(self, parent_id=None):
        pass


◆ remove_detector()

conditionsDatabase.interface.APIInterface.remove_detector	(	self,
		detector_id
	)

Removes a detector from the database.

Caution: all conditions associated with this detector will be permanently removed as well!

Parameters

detector_id String identifying the detector to remove (i.e. 'muonflux/driftTubes').

Exceptions

TypeError	If input type is not as specified.
ValueError	If detector_id does not exist.

Reimplemented in conditionsDatabase.databases.mongodb.mongodbadapter.MongoToCDBAPIAdapter.

Definition at line 67 of file interface.py.

    def remove_detector(self, detector_id):
        pass


◆ update_condition_by_name_and_tag()

conditionsDatabase.interface.APIInterface.update_condition_by_name_and_tag	(	self,
		detector_id,
		name,
		tag,
		type = `None`,
		valid_since = `None`,
		valid_until = `None`
	)

Updates the type, valid_since and valid_until values of a specific condition belonging to a detector, identified by condition name and tag.

Parameters

detector_id	String identifying the detector for which the condition must be updated (i.e. 'muonflux/driftTubes').
name	String specifying the name of the conditions to be updated (e.g. 'strawPositions').
tag	String specifying the tag of the condition to be updated.
type	(optional) String specifying the type of condition (e.g. 'calibration').
valid_since	(optional) Timestamp specifying the date/time as of when the condition is valid. Can be of type String or datetime.
valid_until	(optional) Timestamp specifying the date/time up until the condition is valid. Can be of type String or datetime.

Exceptions

TypeError	If input type is not as specified.
ValueError	If detector_id does not exist.

Reimplemented in conditionsDatabase.databases.mongodb.mongodbadapter.MongoToCDBAPIAdapter.

Definition at line 221 of file interface.py.

222 type=None, valid_since=None, valid_until=None):

223 pass

The documentation for this class was generated from the following file:

conditionsDatabase/interface.py
