GenieGenerator Class Reference

#include <GenieGenerator.h>

Inheritance diagram for GenieGenerator:

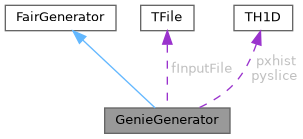

Collaboration diagram for GenieGenerator:

Public Member Functions
	GenieGenerator ()
virtual	~GenieGenerator ()
Bool_t	OldReadEvent (FairPrimaryGenerator *)
Bool_t	ReadEvent (FairPrimaryGenerator *)
virtual Bool_t	Init (const char *, int)
virtual Bool_t	Init (const char *)
Int_t	GetNevents ()
void	NuOnly ()
void	SetPositions (Double_t zTa, Double_t zS=-3400., Double_t zE=2650.)
void	AddBox (TVector3 dVec, TVector3 box)
Double_t	MeanMaterialBudget (const Double_t *start, const Double_t *end, Double_t *mparam)
void	SetDeltaE_Matching_FLUKAGenie (Double_t DeltaE)
void	SetGenerationOption (Int_t GenOption)
void	SetCrossingAngle (Double_t crossingangle)

Protected Member Functions
	ClassDef (GenieGenerator, 2)

Protected Attributes
Double_t	FLUKA_x_cos
Double_t	FLUKA_y_cos
Double_t	FLUKA_x
Double_t	FLUKA_y
Double_t	fDeltaE_GenieFLUKA_nu
Double_t	Yvessel
Double_t	Xvessel
Double_t	Lvessel
Double_t	ztarget
Double_t	startZ
Double_t	endZ
Double_t	Ev
Double_t	pxv
Double_t	pyv
Double_t	pzv
Double_t	El
Double_t	pxl
Double_t	pyl
Double_t	pzl
Double_t	vtxx
Double_t	vtxy
Double_t	vtxz
Double_t	vtxt
Double_t	fcrossingangle
Bool_t	cc
Bool_t	nuel
Int_t	nf
Int_t	neu
Int_t	fGenOption
int	fNevents
int	fn
bool	fFirst
bool	fNuOnly
Double_t	fznu0
Double_t	fznu11
Double_t	fXnu11
Double_t	fYnu11
Double_t	fEntrDz_inner
Double_t	fEntrDz_outer
Double_t	fEntrZ_inner
Double_t	fEntrZ_outer
Double_t	fEntrA
Double_t	fEntrB
Double_t	fL1z
Double_t	fScintDz
FairLogger *	fLogger
Double_t	Ef [500]
	don't make it persistent, magic ROOT command
Double_t	pxf [500]
Double_t	pyf [500]
Double_t	pzf [500]
Int_t	pdgf [500]
TFile *	fInputFile
TTree *	fTree
TTree *	fFLUKANuTree
std::vector< TVector3 >	dVecs
std::vector< TVector3 >	boxs
TH1D *	pxhist [3000]
TH1D *	pyslice [3000][500]
TClonesArray *	ancstr

Private Member Functions
std::vector< double >	Rotate (Double_t x, Double_t y, Double_t z, Double_t px, Double_t py, Double_t pz)
Int_t	ExtractEvent_Ekin (Double_t Ekin, Double_t DeltaE)

Detailed Description

Definition at line 16 of file GenieGenerator.h.

Constructor & Destructor Documentation

GenieGenerator()

GenieGenerator::GenieGenerator

(

)

default constructor

Definition at line 28 of file GenieGenerator.cxx.

                               {
 fGenOption = 0; //default value, standard Genie Generator used in SHiP
}

~GenieGenerator()

GenieGenerator::~GenieGenerator ( )

virtual

destructor

Definition at line 316 of file GenieGenerator.cxx.

{
 fInputFile->Close();
 fInputFile->Delete();
 delete fInputFile;
}

Member Function Documentation

AddBox()

void GenieGenerator::AddBox	(	TVector3	dVec,
		TVector3	box
	)

Definition at line 323 of file GenieGenerator.cxx.

{
  dVecs.push_back(dVec);
  boxs.push_back(box);
  cout << "Debug GenieGenerator: "<< dVec.X() << " "<<box.Z() << endl;
}

ClassDef()

GenieGenerator::ClassDef ( GenieGenerator  , 2    )

protected

ExtractEvent_Ekin()

Int_t GenieGenerator::ExtractEvent_Ekin ( Double_t  Ekin, Double_t  DeltaE  )

private

Definition at line 298 of file GenieGenerator.cxx.

                                                                     {

  //TCut nucut(Form("Ekin >= (%f - %f) && Ekin < (%f + %f)",Ekin,DeltaE/2., Ekin, DeltaE/2.));
  //fFLUKANuTree->Draw(">>nulist", nucut );
  TCut nucut(Form("pzv >= (%f - %f) && pzv < (%f + %f)",Ekin,DeltaE/2., Ekin, DeltaE/2.));
  fTree->Draw(">>nulist",nucut);

  TEventList *nulist = (TEventList*)gDirectory->GetList()->FindObject("nulist");
  Int_t nselectedevents = nulist->GetN();
  //integer function returns randomly integer between 0 e nselectedevents;
  Int_t myevent = nulist->GetEntry(gRandom->Integer(nselectedevents+1));

  nulist->Reset(); //resetting list for next call of the function.
  return myevent;
}

GetNevents()

Int_t GenieGenerator::GetNevents

(

)

Definition at line 712 of file GenieGenerator.cxx.

{
 return fNevents;
}

Init() [1/2]

Bool_t GenieGenerator::Init ( const char *  fileName )

virtual

Definition at line 33 of file GenieGenerator.cxx.

                                                {
  return Init(fileName, 0);
}

Init() [2/2]

Bool_t GenieGenerator::Init ( const char *  fileName, int  firstEvent  )

virtual

Definition at line 37 of file GenieGenerator.cxx.

                                                                      {
  fNuOnly = false;
  fcrossingangle = 0.; //default value, no xsec angle
  if (0 == strncmp("/eos",fileName,4) ) {
   TString tmp = gSystem->Getenv("EOSSHIP");
   tmp+=fileName;
   fInputFile  = TFile::Open(tmp);
   LOGF(info, "Opening input file on eos %s", tmp.Data());
  }else{
   fInputFile  = new TFile(fileName);
   LOGF(info, "Opening input file %s", fileName);
  }
  if (fInputFile->IsZombie() or !fInputFile) {
     LOG(FATAL) << "Error opening input file";
     return kFALSE; }
  fTree = (TTree *)fInputFile->Get("gst");
  fNevents = fTree->GetEntries();
  fn = firstEvent;
  fTree->SetBranchAddress("Ev",&Ev);    // incoming neutrino energy
  fTree->SetBranchAddress("pxv",&pxv);
  fTree->SetBranchAddress("pyv",&pyv);
  fTree->SetBranchAddress("pzv",&pzv);
  fTree->SetBranchAddress("neu",&neu);    // incoming neutrino PDG code
  fTree->SetBranchAddress("cc",&cc);      // Is it a CC event?
  fTree->SetBranchAddress("nuel",&nuel);  // Is it a NUEEL event?
  fTree->SetBranchAddress("vtxx",&vtxx);  // vertex  in SI units
  fTree->SetBranchAddress("vtxy",&vtxy);
  fTree->SetBranchAddress("vtxz",&vtxz);
  fTree->SetBranchAddress("vtxt",&vtxt);
  fTree->SetBranchAddress("El",&El);      // outgoing lepton momentum
  fTree->SetBranchAddress("pxl",&pxl);
  fTree->SetBranchAddress("pyl",&pyl);
  fTree->SetBranchAddress("pzl",&pzl);
  fTree->SetBranchAddress("Ef",&Ef);   // outgoing hadronic momenta
  fTree->SetBranchAddress("pxf",&pxf);
  fTree->SetBranchAddress("pyf",&pyf);
  fTree->SetBranchAddress("pzf",&pzf);
  fTree->SetBranchAddress("nf",&nf);     // nr of outgoing hadrons
  fTree->SetBranchAddress("pdgf",&pdgf);     // pdg code of hadron

  if (fGenOption < 0 || fGenOption > 3){
     LOG(FATAL) <<"Invalid GenieGen Option: "<<fGenOption<<" Please check the option provided with --Genie "<<endl;
     return kFALSE;
   }
  if (fGenOption == 1){
   fFLUKANuTree = (TTree *)fInputFile->Get("fluka_neutrinos_selected");
   //check if TTree is actually present
   if (!fFLUKANuTree){
     LOG(FATAL) <<"No TTree of interacting neutrinos present. Did you run extract_interacting_neutrinos.py from the macro folder?";
     return kFALSE;
   }
   fNevents = fFLUKANuTree->GetEntries();
   //setting branches for input neutrino tree.
   //Nota Bene: I get only the angles and positions,
   //for the energy I keep the GENIE one, otherwise I lose energy conservation
   fFLUKANuTree->SetBranchAddress("x_cos",&FLUKA_x_cos);
   fFLUKANuTree->SetBranchAddress("y_cos",&FLUKA_y_cos);
   fFLUKANuTree->SetBranchAddress("x",&FLUKA_x);
   fFLUKANuTree->SetBranchAddress("y",&FLUKA_y);
   fDeltaE_GenieFLUKA_nu = 10.; //Default value for energy range of FLUKA->Genie matching, 10 GeV.
  }
  if (fGenOption == 2){ //pythia tree
   ancstr = new TClonesArray("TParticle");
   fFLUKANuTree = (TTree*)fInputFile->Get("NuTauTree");
   fNevents = fFLUKANuTree->GetEntries();
   fFLUKANuTree->SetBranchAddress("Ancstr",&ancstr);
   fDeltaE_GenieFLUKA_nu = 10.; //Default value for energy range of FLUKA->Genie matching, 10 GeV.
  }
  fFirst=kTRUE;
  return kTRUE;
}

MeanMaterialBudget()

Double_t GenieGenerator::MeanMaterialBudget	(	const Double_t *	start,
		const Double_t *	end,
		Double_t *	mparam
	)

Definition at line 109 of file GenieGenerator.cxx.

{
  //
  // Calculate mean material budget and material properties between
  //    the points "start" and "end".
  //
  // "mparam" - parameters used for the energy and multiple scattering
  //  corrections:
  //
  // mparam[0] - mean density: sum(x_i*rho_i)/sum(x_i) [g/cm3]
  // mparam[1] - equivalent rad length fraction: sum(x_i/X0_i) [adimensional]
  // mparam[2] - mean A: sum(x_i*A_i)/sum(x_i) [adimensional]
  // mparam[3] - mean Z: sum(x_i*Z_i)/sum(x_i) [adimensional]
  // mparam[4] - length: sum(x_i) [cm]
  // mparam[5] - Z/A mean: sum(x_i*Z_i/A_i)/sum(x_i) [adimensional]
  // mparam[6] - number of boundary crosses
  // mparam[7] - maximum density encountered (g/cm^3)
  // mparam[8] - equivalent interaction length fraction: sum(x_i/I0_i) [adimensional]
  // mparam[9] - maximum cross section encountered (mbarn)
  //
  //  Origin:  Marian Ivanov, Marian.Ivanov@cern.ch
  //
  //  Corrections and improvements by
  //        Andrea Dainese, Andrea.Dainese@lnl.infn.it,
  //        Andrei Gheata,  Andrei.Gheata@cern.ch
  //        Thomas Ruf,  Thomas.Ruf@cern.ch
  //

  mparam[0]=0; mparam[1]=1; mparam[2]=0; mparam[3]=0; mparam[4]=0;
  mparam[5]=0; mparam[6]=0; mparam[7]=0; mparam[8]=0; mparam[9]=0;
  //
  Double_t bparam[7]; // total parameters
  Double_t lparam[7]; // local parameters
  Double_t mbarn = 1E-3*1E-24*TMath::Na(); // cm^2 * Avogadro

  for (Int_t i=0;i<7;i++) bparam[i]=0;

  if (!gGeoManager) {
    //AliFatalClass("No TGeo\n");
    return 0.;
  }
  //
  Double_t length;
  Double_t dir[3];
  length = TMath::Sqrt((end[0]-start[0])*(end[0]-start[0])+
                       (end[1]-start[1])*(end[1]-start[1])+
                       (end[2]-start[2])*(end[2]-start[2]));
  mparam[4]=length;
  if (length<TGeoShape::Tolerance()) return 0.0;
  Double_t invlen = 1./length;
  dir[0] = (end[0]-start[0])*invlen;
  dir[1] = (end[1]-start[1])*invlen;
  dir[2] = (end[2]-start[2])*invlen;

  // Initialize start point and direction
  TGeoNode *currentnode = 0;
  TGeoNode *startnode = gGeoManager->InitTrack(start, dir);
  if (!startnode) {
    //AliErrorClass(Form("start point out of geometry: x %f, y %f, z %f",
    //        start[0],start[1],start[2]));
    return 0.0;
  }
  TGeoMaterial *material = startnode->GetVolume()->GetMedium()->GetMaterial();
  lparam[0]   = material->GetDensity();
  if (lparam[0] > mparam[7]) mparam[7]=lparam[0];
  lparam[1]   = material->GetRadLen();
  lparam[2]   = material->GetA();
  lparam[3]   = material->GetZ();
  lparam[4]   = length;
  lparam[5]   = lparam[3]/lparam[2];
  lparam[6]   = material->GetIntLen();
  Double_t  n = lparam[0]/lparam[2];
  Double_t  sigma = 1./(n*lparam[6])/mbarn;
  if (sigma > mparam[9]) mparam[9]=sigma;
  if (material->IsMixture()) {
    TGeoMixture * mixture = (TGeoMixture*)material;
    lparam[5] =0;
    Double_t sum =0;
    for (Int_t iel=0;iel<mixture->GetNelements();iel++){
      sum  += mixture->GetWmixt()[iel];
      lparam[5]+= mixture->GetZmixt()[iel]*mixture->GetWmixt()[iel]/mixture->GetAmixt()[iel];
    }
    lparam[5]/=sum;
  }

  // Locate next boundary within length without computing safety.
  // Propagate either with length (if no boundary found) or just cross boundary
  gGeoManager->FindNextBoundaryAndStep(length, kFALSE);
  Double_t step = 0.0; // Step made
  Double_t snext = gGeoManager->GetStep();
  // If no boundary within proposed length, return current density
  if (!gGeoManager->IsOnBoundary()) {
    mparam[0] = lparam[0];
    mparam[1] = lparam[4]/lparam[1];
    mparam[2] = lparam[2];
    mparam[3] = lparam[3];
    mparam[4] = lparam[4];
    mparam[8] = lparam[4]/lparam[6];
    return lparam[0];
  }
  // Try to cross the boundary and see what is next
  Int_t nzero = 0;
  while (length>TGeoShape::Tolerance()) {
    currentnode = gGeoManager->GetCurrentNode();
    if (snext<2.*TGeoShape::Tolerance()) nzero++;
    else nzero = 0;
    if (nzero>3) {
      // This means navigation has problems on one boundary
      // Try to cross by making a small step
      //AliErrorClass("Cannot cross boundary\n");
      mparam[0] = bparam[0]/step;
      mparam[1] = bparam[1];
      mparam[2] = bparam[2]/step;
      mparam[3] = bparam[3]/step;
      mparam[5] = bparam[5]/step;
      mparam[8] = bparam[6];
      mparam[4] = step;
      mparam[0] = 0.;             // if crash of navigation take mean density 0
      mparam[1] = 1000000;        // and infinite rad length
      return bparam[0]/step;
    }
    mparam[6]+=1.;
    step += snext;
    bparam[1]    += snext/lparam[1];
    bparam[2]    += snext*lparam[2];
    bparam[3]    += snext*lparam[3];
    bparam[5]    += snext*lparam[5];
    bparam[6]    += snext/lparam[6];
    bparam[0]    += snext*lparam[0];

    if (snext>=length) break;
    if (!currentnode) break;
    length -= snext;
    material = currentnode->GetVolume()->GetMedium()->GetMaterial();
    lparam[0] = material->GetDensity();
    if (lparam[0] > mparam[7]) mparam[7]=lparam[0];
    lparam[1]  = material->GetRadLen();
    lparam[2]  = material->GetA();
    lparam[3]  = material->GetZ();
    lparam[5]   = lparam[3]/lparam[2];
    lparam[6]   = material->GetIntLen();
    n = lparam[0]/lparam[2];
    sigma = 1./(n*lparam[6])/mbarn;
    if (sigma > mparam[9]) mparam[9]=sigma;
    if (material->IsMixture()) {
      TGeoMixture * mixture = (TGeoMixture*)material;
      lparam[5]=0;
      Double_t sum =0;
      for (Int_t iel=0;iel<mixture->GetNelements();iel++){
        sum+= mixture->GetWmixt()[iel];
        lparam[5]+= mixture->GetZmixt()[iel]*mixture->GetWmixt()[iel]/mixture->GetAmixt()[iel];
      }
      lparam[5]/=sum;
    }
    gGeoManager->FindNextBoundaryAndStep(length, kFALSE);
    snext = gGeoManager->GetStep();
  }
  mparam[0] = bparam[0]/step;
  mparam[1] = bparam[1];
  mparam[2] = bparam[2]/step;
  mparam[3] = bparam[3]/step;
  mparam[5] = bparam[5]/step;
  mparam[8] = bparam[6];
  return bparam[0]/step;
}

NuOnly()

void GenieGenerator::NuOnly ( )

inline

Definition at line 32 of file GenieGenerator.h.

{fNuOnly = true;}

OldReadEvent()

Bool_t GenieGenerator::OldReadEvent

(

FairPrimaryGenerator *

cpg

)

public method ReadEvent

Definition at line 330 of file GenieGenerator.cxx.

{
    if (fFirst){
     TGeoVolume *top=gGeoManager->GetTopVolume();
     TGeoNode *linner = top->FindNode("lidT1I_1");
     TGeoNode *scint  = top->FindNode("lidT1lisci_1");
     TGeoNode *louter = top->FindNode("lidT1O_1");
     TGeoNode *lidT6I = top->FindNode("lidT6I_1");
     TGeoNode *t2I  = top->FindNode("T2I_1");
     TGeoNode *t1I  = top->FindNode("T1I_1");
     TGeoEltu *temp = dynamic_cast<TGeoEltu*>(linner->GetVolume()->GetShape());
     fEntrDz_inner = temp->GetDZ();
     temp = dynamic_cast<TGeoEltu*>(louter->GetVolume()->GetShape());
     fEntrDz_outer = temp->GetDZ();
     fEntrA = temp->GetA();
     fEntrB = temp->GetB();
     fEntrZ_inner  = linner->GetMatrix()->GetTranslation()[2];
     fEntrZ_outer  = louter->GetMatrix()->GetTranslation()[2];
     Lvessel = lidT6I->GetMatrix()->GetTranslation()[2] - fEntrZ_inner - fEntrDz_inner;
     TGeoCompositeShape *tempC = dynamic_cast<TGeoCompositeShape*>(t2I->GetVolume()->GetShape());
     Xvessel = tempC->GetDX() - 2*fEntrDz_inner ;
     Yvessel = tempC->GetDY() - 2*fEntrDz_inner ;
     tempC = dynamic_cast<TGeoCompositeShape*>(t1I->GetVolume()->GetShape());
     fL1z = tempC->GetDZ()*2;
     temp = dynamic_cast<TGeoEltu*>(scint->GetVolume()->GetShape());
     fScintDz = temp->GetDZ()*2;
     cout << "Info GenieGenerator: geo inner " << fEntrDz_inner << " "<< fEntrZ_inner << endl;
     cout << "Info GenieGenerator: geo outer " << fEntrDz_outer << " "<< fEntrZ_outer << endl;
     cout << "Info GenieGenerator: A and B " << fEntrA << " "<< fEntrB << endl;
     cout << "Info GenieGenerator: vessel length heig<ht width " << Lvessel << " "<<Yvessel<< " "<< Xvessel << endl;
     cout << "Info GenieGenerator: scint thickness " << fScintDz << endl;
     cout << "Info GenieGenerator: rextra " << fScintDz/2.+2*fEntrDz_inner << " "<< 2*fEntrDz_outer << " "<<2*fEntrDz_inner << endl;
     for(int j=0; j<boxs.size(); j++) {
      cout << "Info GenieGenerator: nuMu X" << j << " - "<< -boxs[j].X()+dVecs[j].X() << " "<< boxs[j].X()+dVecs[j].X() << endl;
      cout << "Info GenieGenerator: nuMu Y" << j << " - "<< -boxs[j].Y()+dVecs[j].Y() << " "<< boxs[j].Y()+dVecs[j].Y() << endl;
      cout << "Info GenieGenerator: nuMu Z" << j << " - "<< -boxs[j].Z()+dVecs[j].Z() << " "<< boxs[j].Z()+dVecs[j].Z() << endl;
     }
     fFirst = kFALSE;
    }
    if (fn==fNevents) {LOG(WARNING) << "End of input file. Rewind.";}
    fTree->GetEntry(fn%fNevents);
    fn++;
    if (fn%1000==0) {
      cout << "Info GenieGenerator: neutrino event-nr "<< fn << endl;
      }
// generate a random point on the vessel, take veto z, and calculate outer lid position
    //Double_t Yvessel=500.;
    //Double_t Lvessel=5.*Yvessel+3500.;
    //Double_t ztarget=zentrance-6350.;
    //Double_t ea=250.; //inside inner wall vessel
    Double_t eb=Yvessel; //inside inner wall vessel
    Double_t x;
    Double_t y;
    Double_t z;
    Double_t where=gRandom->Uniform(0.,1.);
    if (where<0.03) {
      // point on entrance lid
      Double_t ellip=2.;
      while (ellip>1.){
         x = gRandom->Uniform(-fEntrA,fEntrA);
         y = gRandom->Uniform(-fEntrB,fEntrB);
         ellip=(x*x)/(fEntrA*fEntrA)+(y*y)/(fEntrB*fEntrB);
      }
      if (gRandom->Uniform(0.,1.)<0.5){
        z=fEntrZ_inner + gRandom->Uniform(-fEntrDz_inner,fEntrDz_inner);
      }else{
        z=fEntrZ_outer + gRandom->Uniform(-fEntrDz_outer,fEntrDz_outer);
      }
    }else if (where<0.64){
      //point on tube, place over 1 cm radius at 2 radii, separated by 10. cm
      // first vessel has smaller size
      Double_t ea = Xvessel;
      Double_t zrand =  gRandom->Uniform(0,Lvessel);
      if (zrand < fL1z){
        ea = fEntrA;
      }
      z = fEntrZ_outer-fEntrDz_outer + zrand;
      Double_t theta = gRandom->Uniform(0.,TMath::Pi());
      Double_t rextra;
      if ( gRandom->Uniform(0.,1.)>0.5) {
      // outer vessel
        rextra = fScintDz/2.+2*fEntrDz_inner + gRandom->Uniform(0,2*fEntrDz_outer);
      }else{
      // inner vessel
        rextra = gRandom->Uniform(0.,2*fEntrDz_inner);
      }
      x = (ea+rextra)*cos(theta);
      y = sqrt(1.-(x*x)/((ea+rextra)*(ea+rextra)))*(eb+rextra);
      if (gRandom->Uniform(-1.,1.)>0.) y=-y;
    }else{
      //point in nu-tau detector area
      int j =  int(gRandom->Uniform(0.,boxs.size()+0.5));
      x=gRandom->Uniform(-boxs[j].X()+dVecs[j].X(),boxs[j].X()+dVecs[j].X());
      y=gRandom->Uniform(-boxs[j].Y()+dVecs[j].Y(),boxs[j].Y()+dVecs[j].Y());
      z=gRandom->Uniform(-boxs[j].Z()+dVecs[j].Z(),boxs[j].Z()+dVecs[j].Z());
    }
// first, incoming neutrino
    //rotate the particle
    Double_t zrelative=z-ztarget;
    //cout << "Info GenieGenerator: x,y,z " << x <<" " << y << " " << zrelative << endl;
    //cout << "Info GenieGenerator: neutrino " << neu << "p-in "<< pxv << pyv << pzv << " nf "<< nf << endl;
    std::vector<double> pout = Rotate(x,y,zrelative,pxv,pyv,pzv);
    //cpg->AddTrack(neu,pxv,pyv,pzv,vtxx,vtxy,vtxz,-1,false);
    //cout << "Info GenieGenerator: neutrino " << neu << "p-rot "<< pout[0] << " fn "<< fn << endl;
    cpg->AddTrack(neu,pout[0],pout[1],pout[2],x,y,z,-1,false);


// second, outgoing lepton
    pout = Rotate(x,y,zrelative,pxl,pyl,pzl);
    Int_t oLPdgCode = neu;
    if (cc){oLPdgCode = copysign(TMath::Abs(neu)-1,neu);}
    if (nuel){oLPdgCode = 11;}
    cpg->AddTrack(oLPdgCode,pout[0],pout[1],pout[2],x,y,z,0,true);
// last, all others
    for(int i=0; i<nf; i++)
    {
         pout = Rotate(x,y,zrelative,pxf[i],pyf[i],pzf[i]);
         cpg->AddTrack(pdgf[i],pout[0],pout[1],pout[2],x,y,z,0,true);
         // cout << "f " << pdgf[i] << " pz "<< pzf[i] << endl;
       }

  return kTRUE;
}

ReadEvent()

Bool_t GenieGenerator::ReadEvent

(

FairPrimaryGenerator *

cpg

)

Definition at line 455 of file GenieGenerator.cxx.

{

  if (fGenOption == 3){
    // Use GENIE geometry driver.

    // Get event from GENIE TTree. If we reach the end of the file, return false.
    if (fTree->GetEntry(fn) == 0 ) return kFALSE;

    if (fn%100==0) {
      cout << "Info GenieGenerator: neutrino event-nr "<< fn << endl;
    }

    fn++;

    // Add the neutrino to the MCTrack stack:
    cpg->AddTrack(neu,                          // Neutrino PDG
          pxv, pyv, pzv,                // Neutrino momentum
          vtxx*100, vtxy*100, vtxz*100, // Event vertex [in cm!]
          -1,                           // Parent
          false);                       // Don't track this particle

    // Add final state lepton to the MCTrack stack:
    int outgoing_lepton_pdg = neu;
    if (cc) outgoing_lepton_pdg = copysign(TMath::Abs(neu)-1,neu);
    if (nuel) outgoing_lepton_pdg = 11;

    bool track_outgoing_lepton = (cc || nuel) ? true : false;
    cpg->AddTrack(outgoing_lepton_pdg,
          pxl, pyl, pzl,
          vtxx*100, vtxy*100, vtxz*100,
          0,
          track_outgoing_lepton);

    // Add final state hadrons to the MCTrack stack
    for (int i_hadron = 0; i_hadron < nf; i_hadron++){
      cpg->AddTrack(pdgf[i_hadron],
            pxf[i_hadron], pyf[i_hadron], pzf[i_hadron],
            vtxx*100, vtxy*100, vtxz*100,
            0,
            true);
    }

    return kTRUE;

  } else {
    //some start/end positions in z (emulsion to Tracker 1)
    Double_t start[3]={0.,0.,startZ};
    Double_t end[3]={0.,0.,endZ};
    char ts[20];
    //cout << "Enter GenieGenerator " << endl;
    //pick histogram: 1100=100 momentum bins, 1200=25 momentum bins.
    Int_t idbase=1200;
    if (fFirst){
      Double_t bparam=0.;
      Double_t mparam[10];
      bparam=MeanMaterialBudget(start, end, mparam);
      cout << "Info GenieGenerator: MaterialBudget " << start[2] << " - "<< end[2] <<  endl;
      cout << "Info GenieGenerator: MaterialBudget " << bparam <<  endl;
      cout << "Info GenieGenerator: MaterialBudget 0 " << mparam[0] <<  endl;
      cout << "Info GenieGenerator: MaterialBudget 1 " << mparam[1] <<  endl;
      cout << "Info GenieGenerator: MaterialBudget 2 " << mparam[2] <<  endl;
      cout << "Info GenieGenerator: MaterialBudget 3 " << mparam[3] <<  endl;
      cout << "Info GenieGenerator: MaterialBudget 4 " << mparam[4] <<  endl;
      cout << "Info GenieGenerator: MaterialBudget 5 " << mparam[5] <<  endl;
      cout << "Info GenieGenerator: MaterialBudget 6 " << mparam[6] <<  endl;
      cout << "Info GenieGenerator: MaterialBudget " << mparam[0]*mparam[4] <<  endl;
      //read the (log10(p),log10(pt)) hists to be able to draw a pt for every neutrino momentum
      //loop over neutrino types
      printf("Reading (log10(p),log10(pt)) Hists from file: %s\n",fInputFile->GetName());
      for (Int_t idnu=12;idnu<17;idnu+=2){
        for (Int_t idadd=-1;idadd<2;idadd+=2){
      Int_t idhnu=idbase+idnu;
          if (idadd<0) idhnu+=1000;
      sprintf(ts,"%d",idhnu);
      //pickup corresponding (log10(p),log10(pt)) histogram
          if (fInputFile->FindObjectAny(ts)){
           TH2F* h2tmp = (TH2F*) fInputFile->Get(ts);
           printf("HISTID=%d, Title:%s\n",idhnu,h2tmp->GetTitle());
       sprintf(ts,"px_%d",idhnu);
          //make its x-projection, to later be able to convert log10(p) to its bin-number
           pxhist[idhnu]=h2tmp->ProjectionX(ts,1,-1);
           Int_t nbinx=h2tmp->GetNbinsX();
          //printf("idhnu=%d  ts=%s  nbinx=%d\n",idhnu,ts,nbinx);
      //project all slices on the y-axis
           for (Int_t k=1;k<nbinx+1;k+=1){
        sprintf(ts,"h%d%d",idhnu,k);
            //printf("idnu %d idhnu %d bin%d  ts=%s\n",idnu,idhnu,k,ts);
            pyslice[idhnu][k]=h2tmp->ProjectionY(ts,k,k);
      }
         }
    }
      }
      fFirst = kFALSE;
    }
    if (fn==fNevents) {LOG(WARNING) << "End of input file. Rewind.";}
    if (fGenOption>0) fFLUKANuTree->GetEntry(fn%fNevents); //1 or 2
    else if (fGenOption == 0) fTree->GetEntry(fn%fNevents);
    fn++;
    if (fn%100==0) {
      cout << "Info GenieGenerator: neutrino event-nr "<< fn << endl;
    }

// Incoming neutrino, get a random px,py
    //cout << "Info GenieGenerator: neutrino " << neu << "p-in "<< pzv << " nf "<< nf << endl;
    //cout << "Info GenieGenerator: ztarget " << ztarget << endl;
    Double_t bparam=0.;
    Double_t mparam[10];
    Double_t pout[3];
    pout[2]=-1.;
    Double_t txnu=0;
    Double_t tynu=0;
    //Does this neutrino fly through material? Otherwise draw another pt..
    //cout << "Info GenieGenerator Start bparam while loop" << endl;
    while (pout[2]<0.) {
      //***OLD**** Keep for comparison maybe??
      //generate pt of ~0.3 GeV
      //pout[0] = gRandom->Exp(0.2);
      //pout[1] = gRandom->Exp(0.2);
      //pout[2] = pzv*pzv-pout[0]*pout[0]-pout[1]*pout[1];
      if(fGenOption == 1){
       int nuevent = ExtractEvent_Ekin(pzv, 10.);
       fTree->GetEntry(nuevent);
       //getting tri-momentum
       pout[0] = FLUKA_x_cos * pzv;
       pout[1] = FLUKA_y_cos * pzv;
       double pt = sqrt(pout[0]*pout[0] + pout[1]*pout[1]);
       pout[2] = pzv*pzv-pt*pt;
      }
      else if(fGenOption == 2){
       //getting neutrino information
       TParticle *nuparticle = (TParticle*) ancstr->At(0);
       TVector3 * nup = new TVector3(nuparticle->Px(), nuparticle->Py(), nuparticle->Pz());
       //rotating of xsec
       nup->RotateX(fcrossingangle);
       //getting associated interaction
       int nuevent = ExtractEvent_Ekin(nup->Mag(), 10.);
       fTree->GetEntry(nuevent);
       //getting GENIE tri-momentum in this reference
       pout[0] = nup->Px()/nup->Pz() * pzv;
       pout[1] = nup->Py()/nup->Pz() * pzv;
       double pt = sqrt(pout[0]*pout[0] + pout[1]*pout[1]);
       pout[2] = pzv*pzv-pt*pt;
      }

      else if( fGenOption == 0 ){
       //**NEW** get pt of this neutrino from 2D hists.
       Int_t idhnu=TMath::Abs(neu)+idbase;
       if (neu<0) idhnu+=1000;
       Int_t nbinmx=pxhist[idhnu]->GetNbinsX();
       Double_t pl10=log10(pzv);
       Int_t nbx=pxhist[idhnu]->FindBin(pl10);
       //printf("idhnu %d, p %f log10(p) %f bin,binmx %d %d \n",idhnu,pzv,pl10,nbx,nbinmx);
       if (nbx<1) nbx=1;
       if (nbx>nbinmx) nbx=nbinmx;
       Double_t ptlog10=pyslice[idhnu][nbx]->GetRandom();
 //hist was filled with: log10(pt+0.01)
       Double_t pt=pow(10.,ptlog10)-0.01;
       //rotate pt in phi:
       Double_t phi=gRandom->Uniform(0.,2*TMath::Pi());
       pout[0] = cos(phi)*pt;
       pout[1] = sin(phi)*pt;
       pout[2] = pzv*pzv-pt*pt;
       //printf("p= %f pt=%f px,py,pz**2=%f,%f,%f\n",pzv,pt,pout[0],pout[1],pout[2]);
      }
      if (pout[2]>=0.) {
        pout[2]=TMath::Sqrt(pout[2]);
        //random chance of reflecting momentum, we do not modify momentum components in SND@LHC physics case
        if (fGenOption == 0){
         if (gRandom->Uniform(-1.,1.)<0.) pout[0]=-pout[0];
         if (gRandom->Uniform(-1.,1.)<0.) pout[1]=-pout[1];
        }
        //cout << "Info GenieGenerator: neutrino pxyz " << pout[0] << ", " << pout[1] << ", " << pout[2] << endl;
        // xyz at start and end
        start[0]=(pout[0]/pout[2])*(start[2]-ztarget);
        start[1]=(pout[1]/pout[2])*(start[2]-ztarget);
        //adding offset from neutrino production point (only for SND@LHC physics case)
        if (fGenOption == 1){
          start[0] += FLUKA_x;
          start[1] += FLUKA_y;
        }
        //cout << "Info GenieGenerator: neutrino xyz-start " << start[0] << "-" << start[1] << "-" << start[2] << endl;
        txnu=pout[0]/pout[2];
        tynu=pout[1]/pout[2];
        end[0]=txnu*(end[2]-ztarget);
        end[1]=tynu*(end[2]-ztarget);
        //adding offset from neutrino production point (only for SND@LHC phys
        if (fGenOption == 1){
          end[0] += FLUKA_x;
          end[1] += FLUKA_y;
        }
        //cout << "Info GenieGenerator: neutrino xyz-end " << end[0] << "-" << end[1] << "-" << end[2] << endl;
        //get material density between these two points
        bparam=MeanMaterialBudget(start, end, mparam);
        //printf("param %e %e %e \n",bparam,mparam[6],mparam[7]);
       }
    }
    //loop over trajectory between start and end to pick an interaction point
    Double_t prob2int = -1.;
    Double_t x;
    Double_t y;
    Double_t z;
    Int_t count=0;
    while (prob2int<gRandom->Uniform(0.,1.)) {
      //place x,y,z uniform along path
      z=gRandom->Uniform(start[2],end[2]);
      x=txnu*(z-ztarget);
      y=tynu*(z-ztarget);
      //adding offset from neutrino production point (only for SND@LHC physics case)
      if (fGenOption == 1){
        x += FLUKA_x;
        y += FLUKA_y;
      }
      if (mparam[6]<0.5){
        //mparam is number of boundaries along path. mparam[6]=0.: uniform material budget along path, use present x,y,z
        prob2int=2.;
      }else{
        //get local material at this point, to calculate probability that interaction is at this point.
        TGeoNode *node = gGeoManager->FindNode(x,y,z);
        TGeoMaterial *mat = 0;
        if (node && !gGeoManager->IsOutside()) {
          mat = node->GetVolume()->GetMaterial();
         //cout << "Info GenieGenerator: mat " <<  count << ", " << mat->GetName() << ", " << mat->GetDensity() << endl;
         //density relative to Prob largest density along this trajectory, i.e. use rho(Pt)
         prob2int= mat->GetDensity()/mparam[7];
         if (prob2int>1.) cout << "***WARNING*** GenieGenerator: prob2int > Maximum density????" << prob2int << " maxrho:" << mparam[7] << " material: " <<  mat->GetName() << endl;
         count+=1;
        }else{
          prob2int=0.;
        }
     }
    }
    //cout << "Info GenieGenerator: prob2int " << prob2int << ", " << count << endl;

    Double_t zrelative=z-ztarget;
    Double_t tof=TMath::Sqrt(x*x+y*y+zrelative*zrelative)/2.99792458e+6;
    cpg->AddTrack(neu,pout[0],pout[1],pout[2],x,y,z,-1,false,TMath::Sqrt(pout[0]*pout[0]+pout[1]*pout[1]+pout[2]*pout[2]),tof,mparam[0]*mparam[4]);
    if (not fNuOnly){
      // second, outgoing lepton
      std::vector<double> pp = Rotate(x,y,zrelative,pxl,pyl,pzl);
      Int_t oLPdgCode = neu;
      if (cc){oLPdgCode = copysign(TMath::Abs(neu)-1,neu);}
      if (nuel){oLPdgCode = 11;}
      cpg->AddTrack(oLPdgCode,pp[0],pp[1],pp[2],x,y,z,0,true,El,tof,mparam[0]*mparam[4]);
// last, all others
      for(int i=0; i<nf; i++)
        {
      pp = Rotate(x,y,zrelative,pxf[i],pyf[i],pzf[i]);
      cpg->AddTrack(pdgf[i],pp[0],pp[1],pp[2],x,y,z,0,true,Ef[i],tof,mparam[0]*mparam[4]);
         //cout << "f " << pdgf[i] << " pz "<< pzf[i] << endl;
    }
    //cout << "Info GenieGenerator Return from GenieGenerator" << endl;
    }
  }
  return kTRUE;
}

Rotate()

std::vector< double > GenieGenerator::Rotate ( Double_t  x, Double_t  y, Double_t  z, Double_t  px, Double_t  py, Double_t  pz  )

private

Definition at line 275 of file GenieGenerator.cxx.

{
  //rotate vector px,py,pz to point at x,y,z at origin.
  Double_t theta=atan(sqrt(x*x+y*y)/z);
  Double_t c=cos(theta);
  Double_t s=sin(theta);
  //rotate around y-axis
  Double_t px1=c*px+s*pz;
  Double_t pzr=-s*px+c*pz;
  Double_t phi=atan2(y,x);
  c=cos(phi);
  s=sin(phi);
  //rotate around z-axis
  Double_t pxr=c*px1-s*py;
  Double_t pyr=s*px1+c*py;
  std::vector<double> pout;
  pout.push_back(pxr);
  pout.push_back(pyr);
  pout.push_back(pzr);
  //cout << "Info GenieGenerator: rotated" << pout[0] << " " << pout[1] << " " << pout[2] << " " << x << " " << y << " " << z <<endl;
  return pout;
}

SetCrossingAngle()

void GenieGenerator::SetCrossingAngle ( Double_t  crossingangle )

inline

Definition at line 46 of file GenieGenerator.h.

                                               {
    fcrossingangle = crossingangle;
  }

SetDeltaE_Matching_FLUKAGenie()

void GenieGenerator::SetDeltaE_Matching_FLUKAGenie ( Double_t  DeltaE )

inline

Definition at line 40 of file GenieGenerator.h.

                                                     {
    fDeltaE_GenieFLUKA_nu = DeltaE;
  }

SetGenerationOption()

void GenieGenerator::SetGenerationOption ( Int_t  GenOption )

inline

Definition at line 43 of file GenieGenerator.h.

                                           {
    fGenOption = GenOption;
  }

SetPositions()

void GenieGenerator::SetPositions ( Double_t  zTa, Double_t  zS = -3400., Double_t  zE = 2650.  )

inline

Definition at line 33 of file GenieGenerator.h.

                                                                        {
    ztarget     = zTa;
    startZ      = zS;
    endZ        = zE;
  }

Member Data Documentation

ancstr

TClonesArray* GenieGenerator::ancstr

protected

Definition at line 79 of file GenieGenerator.h.

boxs

std::vector<TVector3> GenieGenerator::boxs

protected

Definition at line 76 of file GenieGenerator.h.

cc

Bool_t GenieGenerator::cc

protected

Definition at line 60 of file GenieGenerator.h.

dVecs

std::vector<TVector3> GenieGenerator::dVecs

protected

Definition at line 75 of file GenieGenerator.h.

Ef

Double_t GenieGenerator::Ef[500]

protected

don't make it persistent, magic ROOT command

Definition at line 70 of file GenieGenerator.h.

El

Double_t GenieGenerator::El

protected

Definition at line 58 of file GenieGenerator.h.

endZ

Double_t GenieGenerator::endZ

protected

Definition at line 57 of file GenieGenerator.h.

Ev

Double_t GenieGenerator::Ev

protected

Definition at line 58 of file GenieGenerator.h.

fcrossingangle

Double_t GenieGenerator::fcrossingangle

protected

Definition at line 59 of file GenieGenerator.h.

fDeltaE_GenieFLUKA_nu

Double_t GenieGenerator::fDeltaE_GenieFLUKA_nu

protected

Definition at line 56 of file GenieGenerator.h.

fEntrA

Double_t GenieGenerator::fEntrA

protected

Definition at line 67 of file GenieGenerator.h.

fEntrB

Double_t GenieGenerator::fEntrB

protected

Definition at line 67 of file GenieGenerator.h.

fEntrDz_inner

Double_t GenieGenerator::fEntrDz_inner

protected

Definition at line 67 of file GenieGenerator.h.

fEntrDz_outer

Double_t GenieGenerator::fEntrDz_outer

protected

Definition at line 67 of file GenieGenerator.h.

fEntrZ_inner

Double_t GenieGenerator::fEntrZ_inner

protected

Definition at line 67 of file GenieGenerator.h.

fEntrZ_outer

Double_t GenieGenerator::fEntrZ_outer

protected

Definition at line 67 of file GenieGenerator.h.

fFirst

bool GenieGenerator::fFirst

protected

Definition at line 65 of file GenieGenerator.h.

fFLUKANuTree

TTree* GenieGenerator::fFLUKANuTree

protected

Definition at line 74 of file GenieGenerator.h.

fGenOption

Int_t GenieGenerator::fGenOption

protected

Definition at line 62 of file GenieGenerator.h.

fInputFile

TFile* GenieGenerator::fInputFile

protected

Definition at line 72 of file GenieGenerator.h.

fL1z

Double_t GenieGenerator::fL1z

protected

Definition at line 67 of file GenieGenerator.h.

fLogger

FairLogger* GenieGenerator::fLogger

protected

Definition at line 69 of file GenieGenerator.h.

FLUKA_x

Double_t GenieGenerator::FLUKA_x

protected

Definition at line 55 of file GenieGenerator.h.

FLUKA_x_cos

Double_t GenieGenerator::FLUKA_x_cos

protected

Definition at line 55 of file GenieGenerator.h.

FLUKA_y

Double_t GenieGenerator::FLUKA_y

protected

Definition at line 55 of file GenieGenerator.h.

FLUKA_y_cos

Double_t GenieGenerator::FLUKA_y_cos

protected

Definition at line 55 of file GenieGenerator.h.

fn

int GenieGenerator::fn

protected

Definition at line 64 of file GenieGenerator.h.

fNevents

int GenieGenerator::fNevents

protected

Definition at line 63 of file GenieGenerator.h.

fNuOnly

bool GenieGenerator::fNuOnly

protected

Definition at line 65 of file GenieGenerator.h.

fScintDz

Double_t GenieGenerator::fScintDz

protected

Definition at line 67 of file GenieGenerator.h.

fTree

TTree* GenieGenerator::fTree

protected

Definition at line 73 of file GenieGenerator.h.

fXnu11

Double_t GenieGenerator::fXnu11

protected

Definition at line 66 of file GenieGenerator.h.

fYnu11

Double_t GenieGenerator::fYnu11

protected

Definition at line 66 of file GenieGenerator.h.

fznu0

Double_t GenieGenerator::fznu0

protected

Definition at line 66 of file GenieGenerator.h.

fznu11

Double_t GenieGenerator::fznu11

protected

Definition at line 66 of file GenieGenerator.h.

Lvessel

Double_t GenieGenerator::Lvessel

protected

Definition at line 57 of file GenieGenerator.h.

neu

Int_t GenieGenerator::neu

protected

Definition at line 61 of file GenieGenerator.h.

nf

Int_t GenieGenerator::nf

protected

Definition at line 61 of file GenieGenerator.h.

nuel

Bool_t GenieGenerator::nuel

protected

Definition at line 60 of file GenieGenerator.h.

pdgf

Int_t GenieGenerator::pdgf[500]

protected

Definition at line 71 of file GenieGenerator.h.

pxf

Double_t GenieGenerator::pxf[500]

protected

Definition at line 70 of file GenieGenerator.h.

pxhist

TH1D* GenieGenerator::pxhist[3000]

protected

Definition at line 77 of file GenieGenerator.h.

pxl

Double_t GenieGenerator::pxl

protected

Definition at line 58 of file GenieGenerator.h.

pxv

Double_t GenieGenerator::pxv

protected

Definition at line 58 of file GenieGenerator.h.

pyf

Double_t GenieGenerator::pyf[500]

protected

Definition at line 70 of file GenieGenerator.h.

pyl

Double_t GenieGenerator::pyl

protected

Definition at line 58 of file GenieGenerator.h.

pyslice

TH1D* GenieGenerator::pyslice[3000][500]

protected

Definition at line 78 of file GenieGenerator.h.

pyv

Double_t GenieGenerator::pyv

protected

Definition at line 58 of file GenieGenerator.h.

pzf

Double_t GenieGenerator::pzf[500]

protected

Definition at line 70 of file GenieGenerator.h.

pzl

Double_t GenieGenerator::pzl

protected

Definition at line 58 of file GenieGenerator.h.

pzv

Double_t GenieGenerator::pzv

protected

Definition at line 58 of file GenieGenerator.h.

startZ

Double_t GenieGenerator::startZ

protected

Definition at line 57 of file GenieGenerator.h.

vtxt

Double_t GenieGenerator::vtxt

protected

Definition at line 58 of file GenieGenerator.h.

vtxx

Double_t GenieGenerator::vtxx

protected

Definition at line 58 of file GenieGenerator.h.

vtxy

Double_t GenieGenerator::vtxy

protected

Definition at line 58 of file GenieGenerator.h.

vtxz

Double_t GenieGenerator::vtxz

protected

Definition at line 58 of file GenieGenerator.h.

Xvessel

Double_t GenieGenerator::Xvessel

protected

Definition at line 57 of file GenieGenerator.h.

Yvessel

Double_t GenieGenerator::Yvessel

protected

Definition at line 57 of file GenieGenerator.h.

ztarget

Double_t GenieGenerator::ztarget

protected

Definition at line 57 of file GenieGenerator.h.

---

The documentation for this class was generated from the following files:

• shipgen/GenieGenerator.h
• shipgen/GenieGenerator.cxx
