RPCUnpack.cxx File Reference

#include <cassert>
#include "TClonesArray.h"
#include "FairRootManager.h"
#include "FairRunOnline.h"
#include "FairLogger.h"
#include "RPCUnpack.h"
#include "MuonTaggerHit.h"
#include "ShipOnlineDataFormat.h"

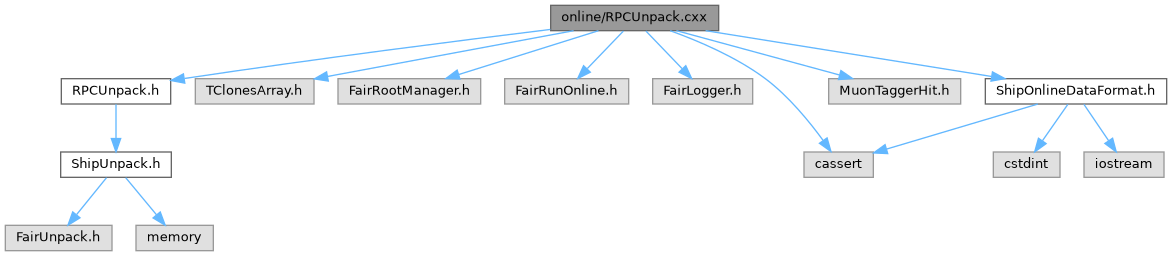

Include dependency graph for RPCUnpack.cxx:

Go to the source code of this file.

Classes
struct	RawHit

Enumerations
enum	Direction { horizontal = 0 , vertical = 1 }

Functions
int	GetId (int ncrate, int nboard, int channel)

Enumeration Type Documentation

Direction

enum Direction

Enumerator
horizontal
vertical

Definition at line 23 of file RPCUnpack.cxx.

{ horizontal = 0, vertical = 1 };

Function Documentation

GetId()

int GetId	(	int	ncrate,
		int	nboard,
		int	channel
	)

Definition at line 25 of file RPCUnpack.cxx.

{
   assert(ncrate == 16 || ncrate == 18);
   assert(nboard > 0 && nboard < 16);
   int station;
   int nboardofstation;
   switch (ncrate) {
   case 16:
      station = (nboard < 6) ? 1 : 2;
      nboardofstation = nboard - (station - 1) * 5;
      break;
   case 18:
      station = (nboard < 6) ? 3 : (nboard < 11) ? 4 : 5;
      nboardofstation = nboard - (station - 3) * 5;
      break;
   }
   int direction = (nboardofstation < 4) ? vertical : horizontal;
   int strip = direction == vertical
                  ? channel - 3
                  : (channel < 16) ? 10 - channel
                                   : (channel < 32) ? 42 - channel : (channel < 48) ? 74 - channel : 106 - channel;
   strip += (nboardofstation - (direction == vertical ? 1 : 4)) * 64;
   LOG(DEBUG) << ncrate << '\t' << nboard << '\t' << channel << '\t' << station << '\t' << strip << '\t'
              << (direction == vertical ? 'V' : 'H');
   return 10000 * station + 1000 * direction + strip;
}
